Condenser Fan: Service and Repair

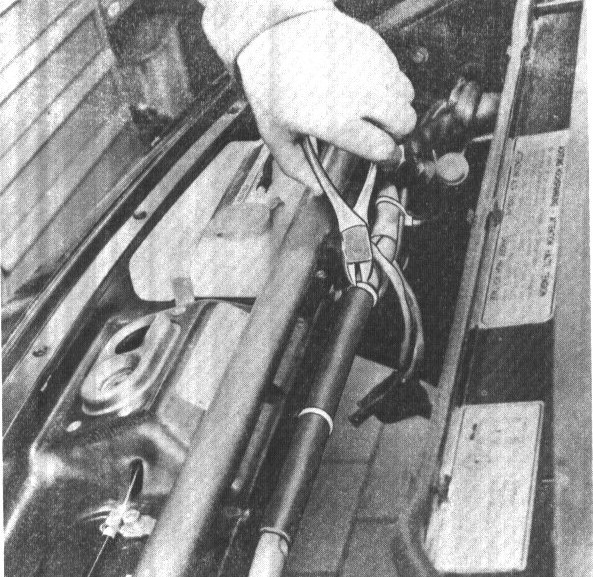

REMOVING AND INSTALLING CONDENSER FAN1. Remove air inlet grill.

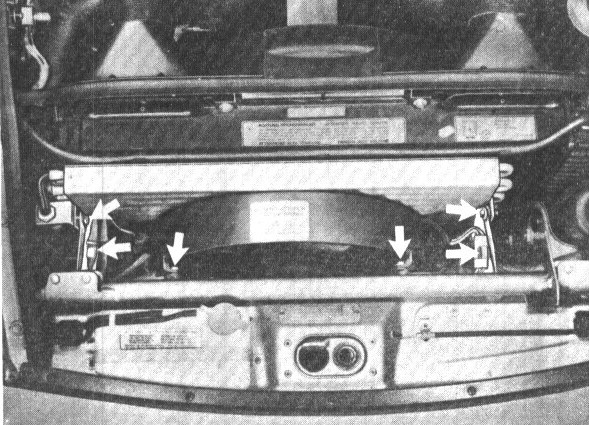

2. Pull off hose clamps on radiator. Disconnect wire plugs. Unscrew left and right brackets on condenser. Unscrew upper fan mountings.

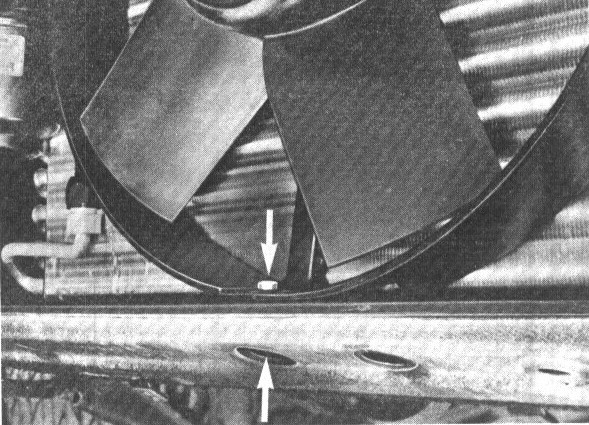

3. Unscrew lower mounting.
4. Loosen wire harness on lock cross member and remove cover.
5. Pull out fan from top. Be careful not to damage fins of condenser.
