System Specifications

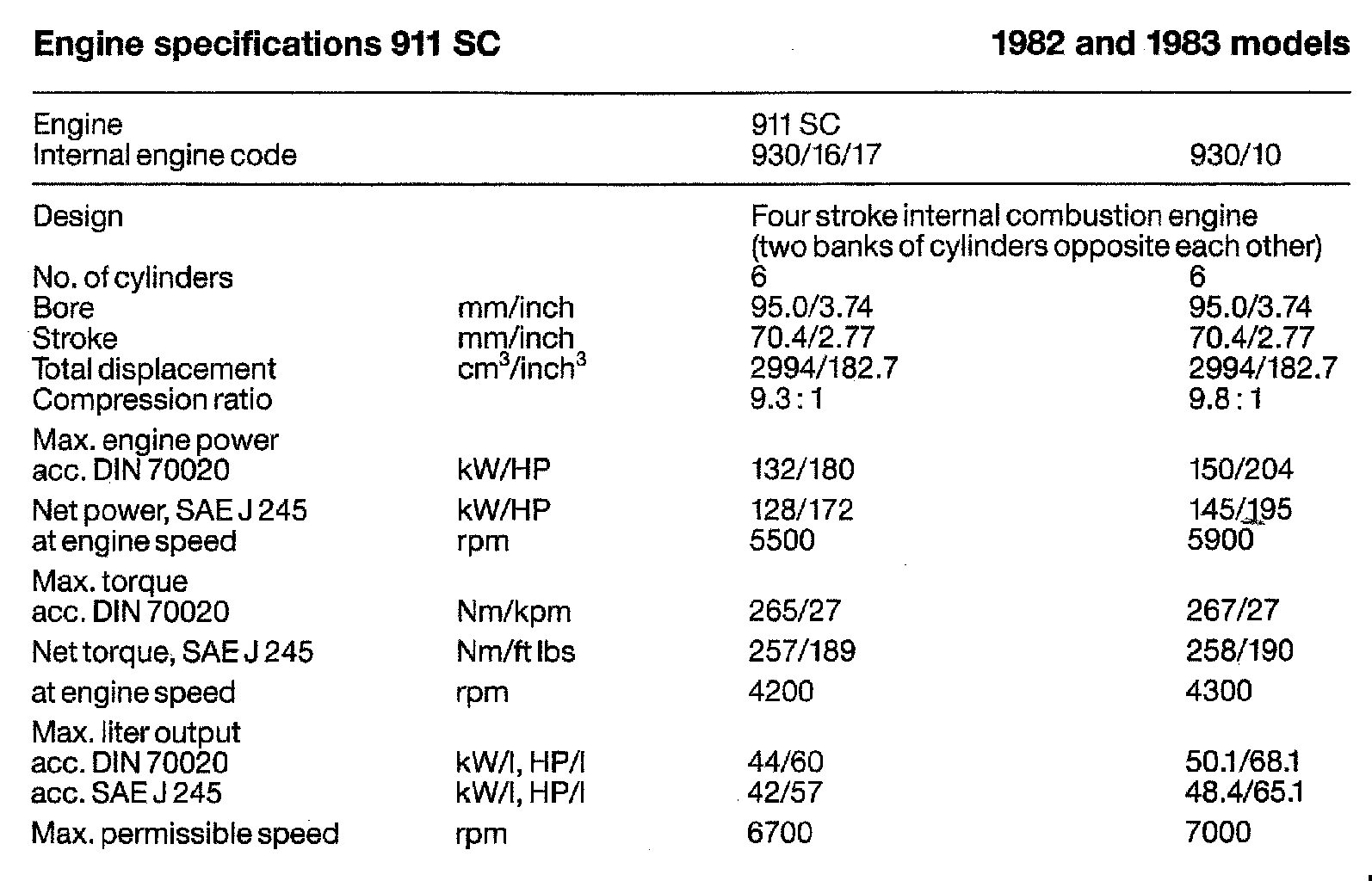

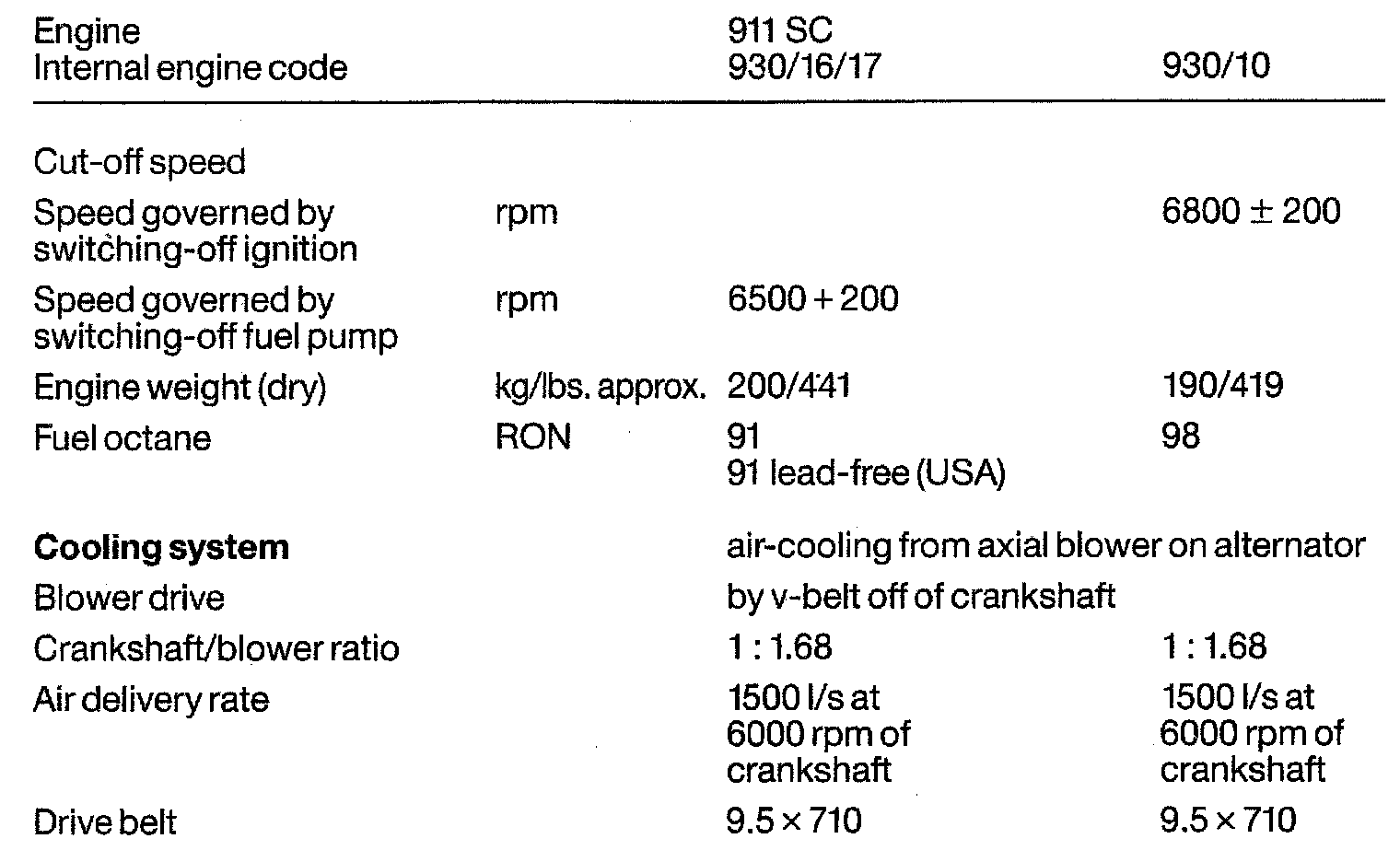

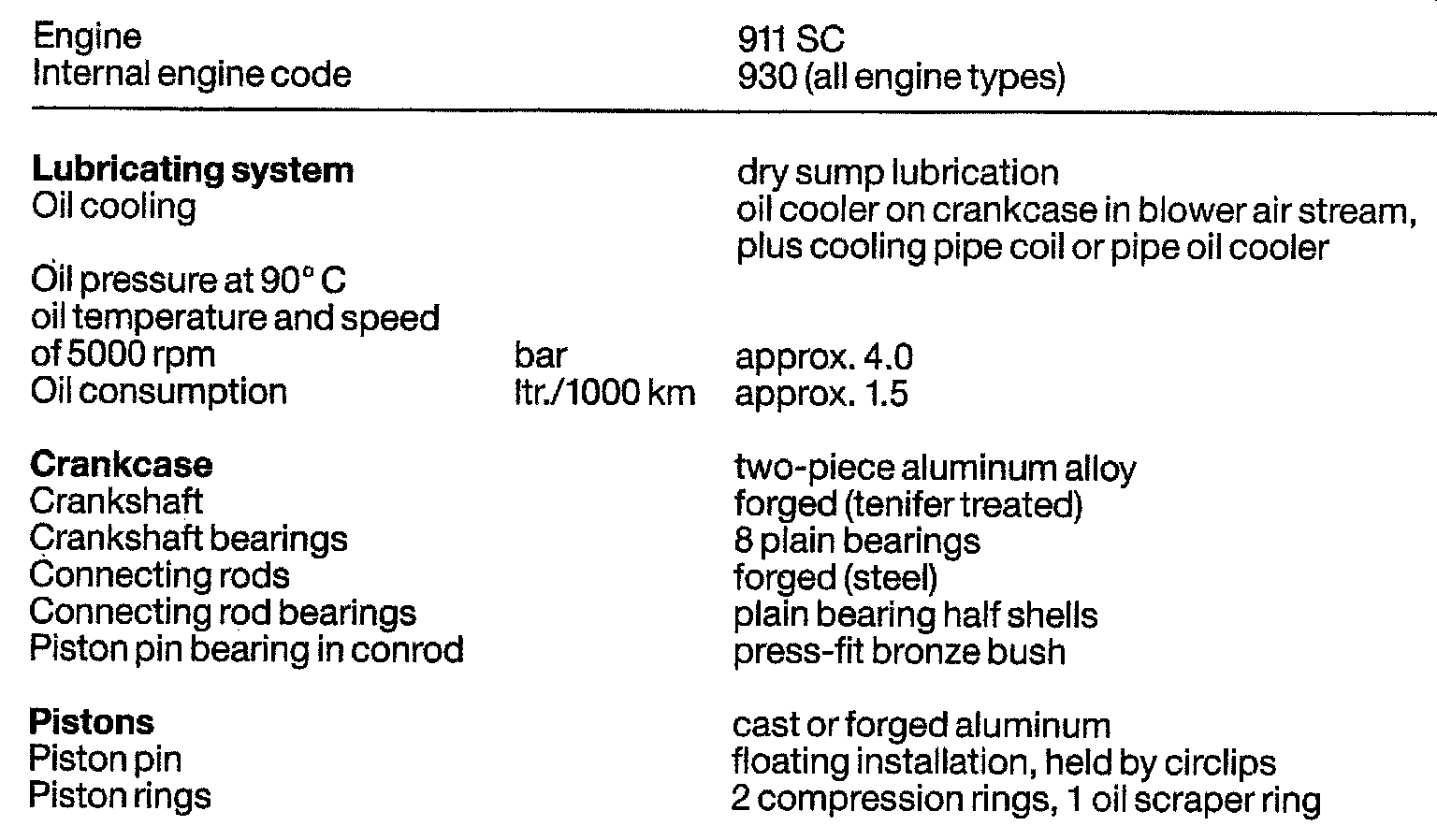

GENERAL SPECIFICATIONS

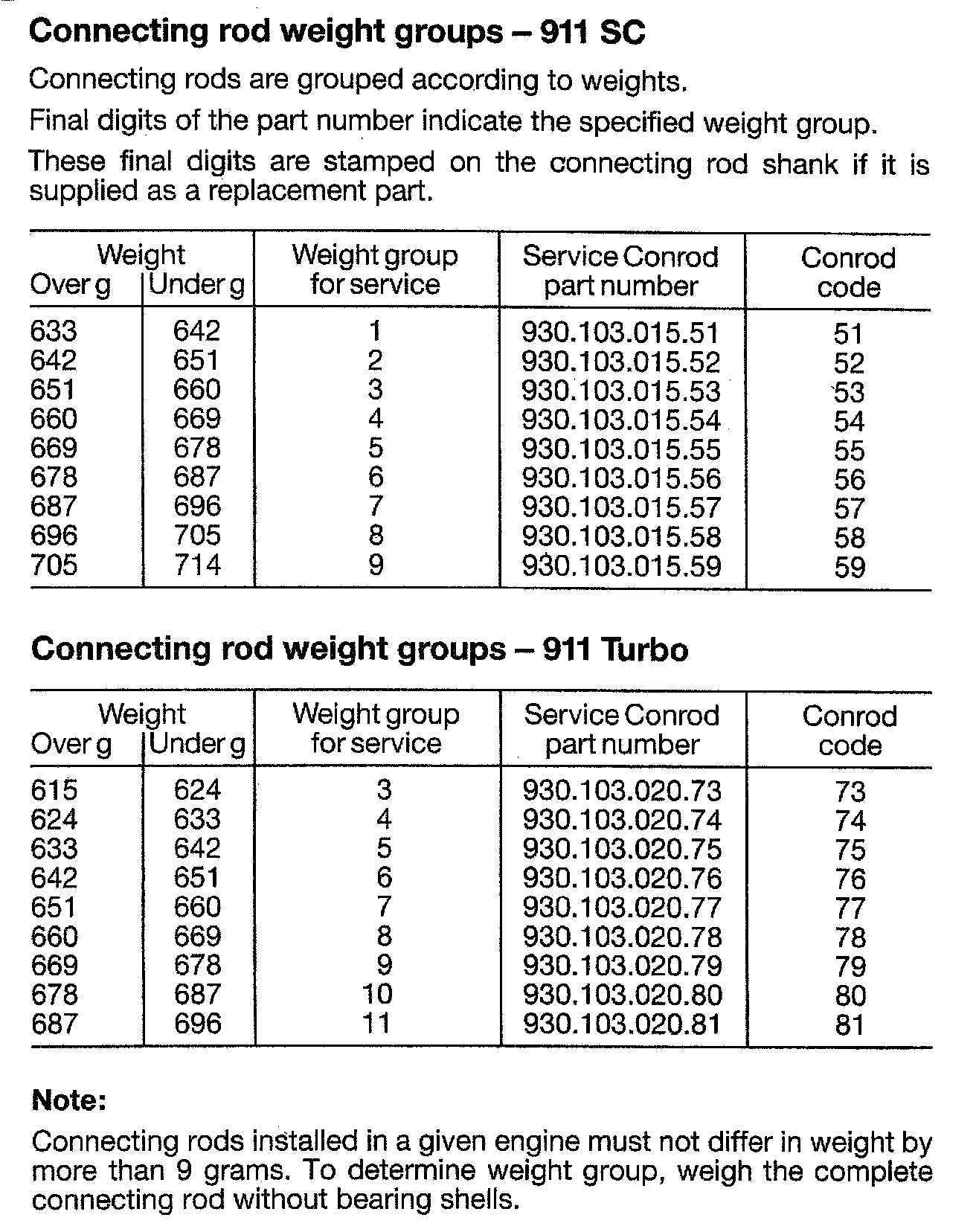

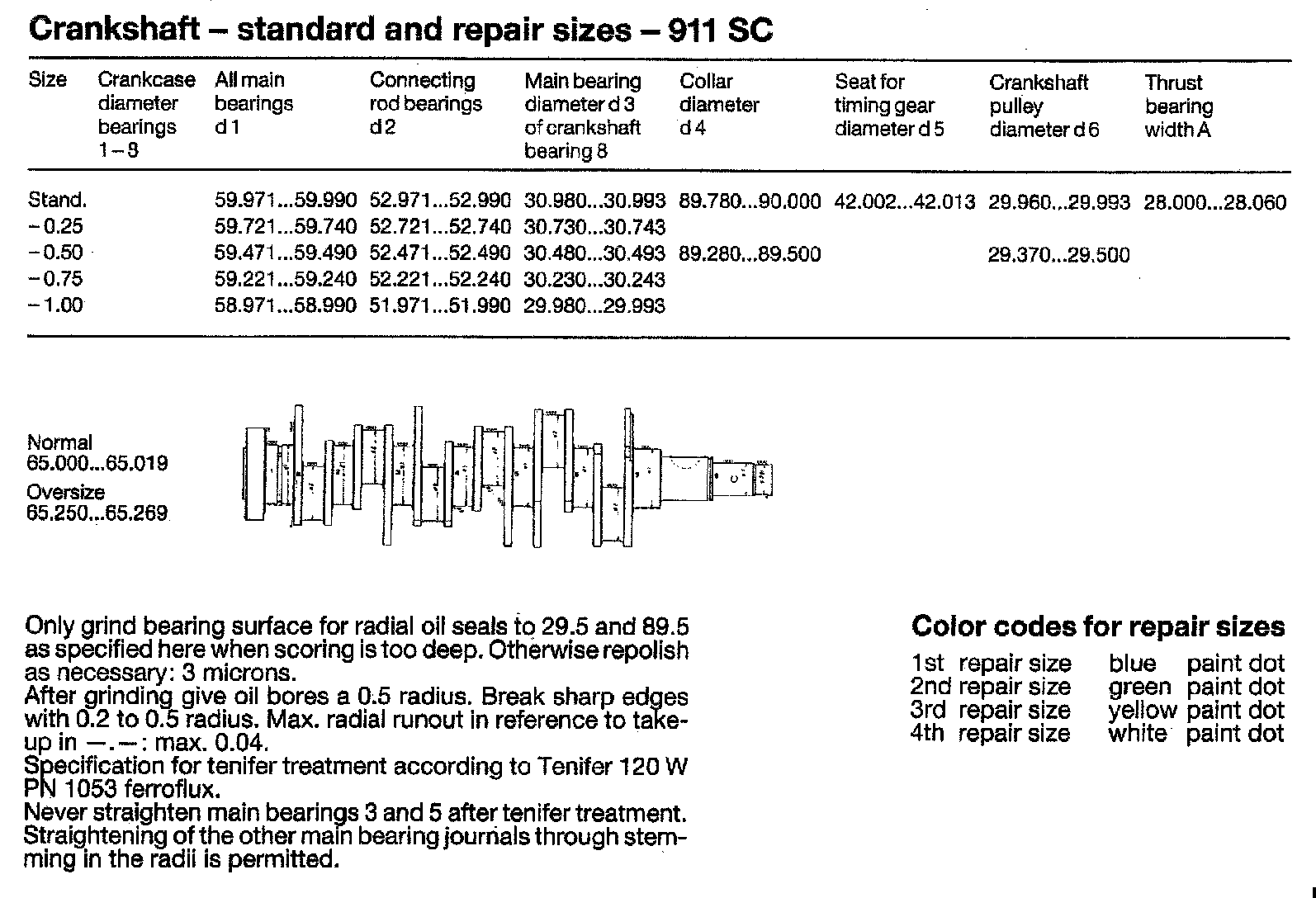

CRANKSHAFT SPECIFICATIONS

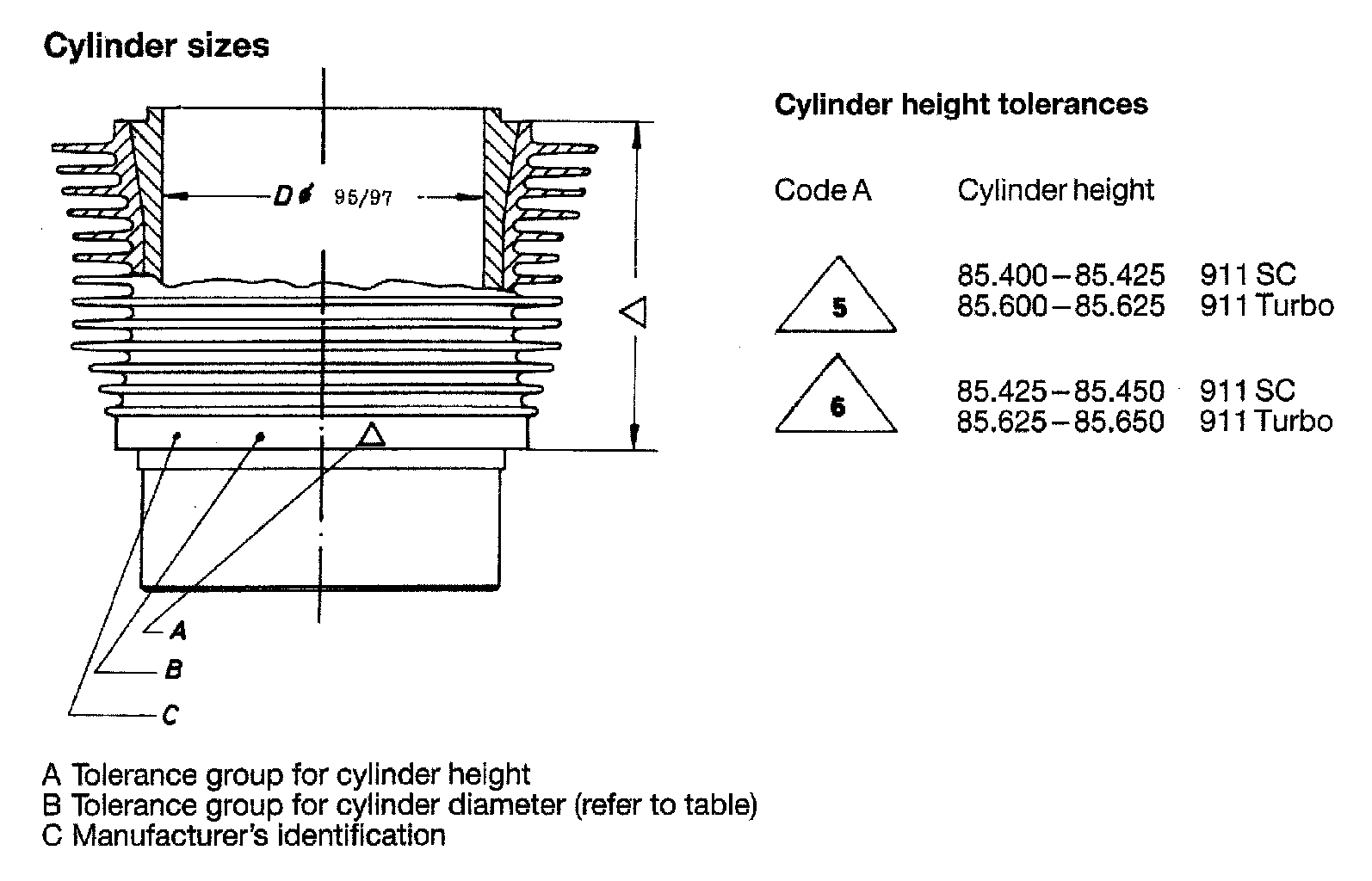

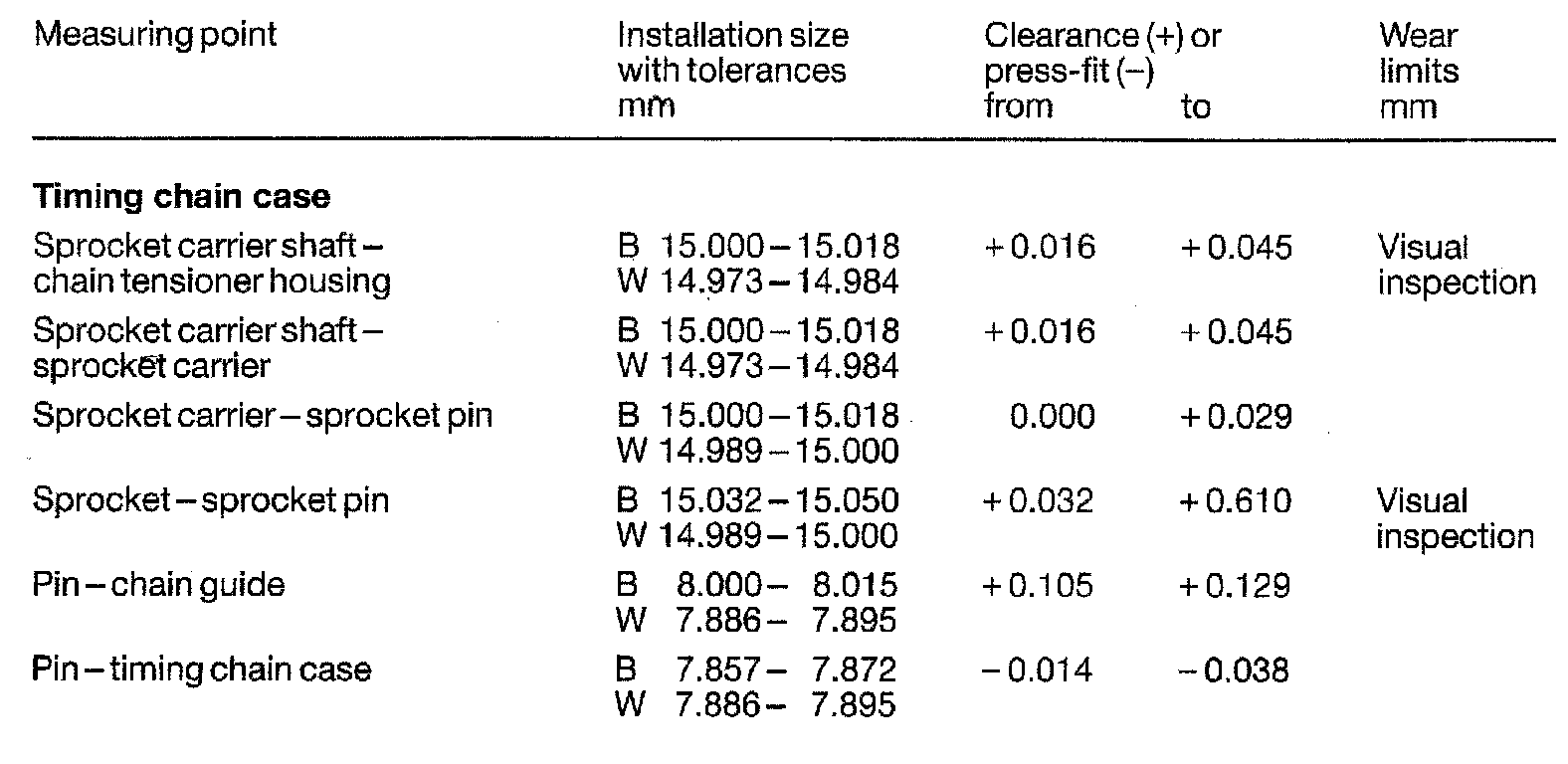

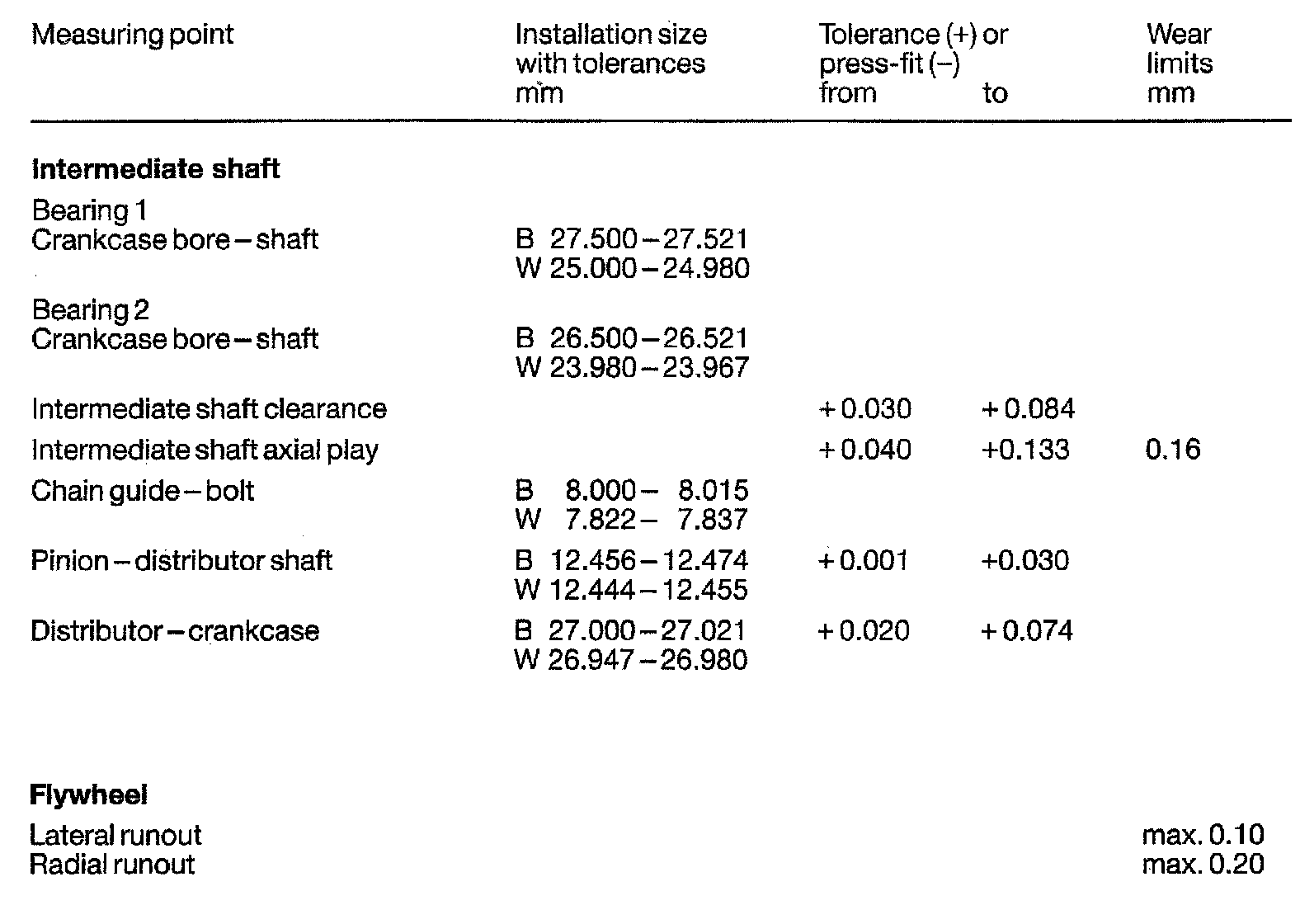

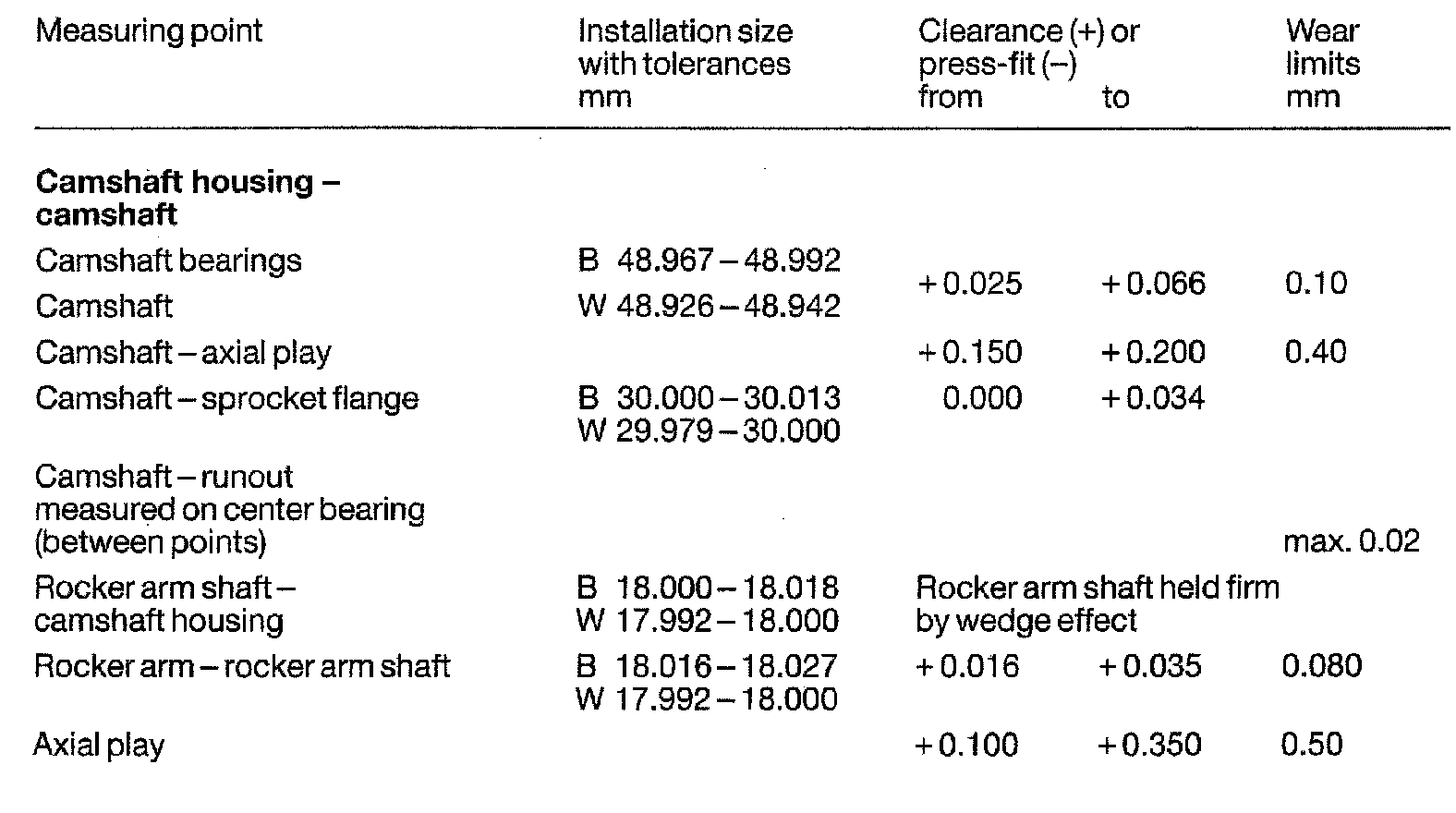

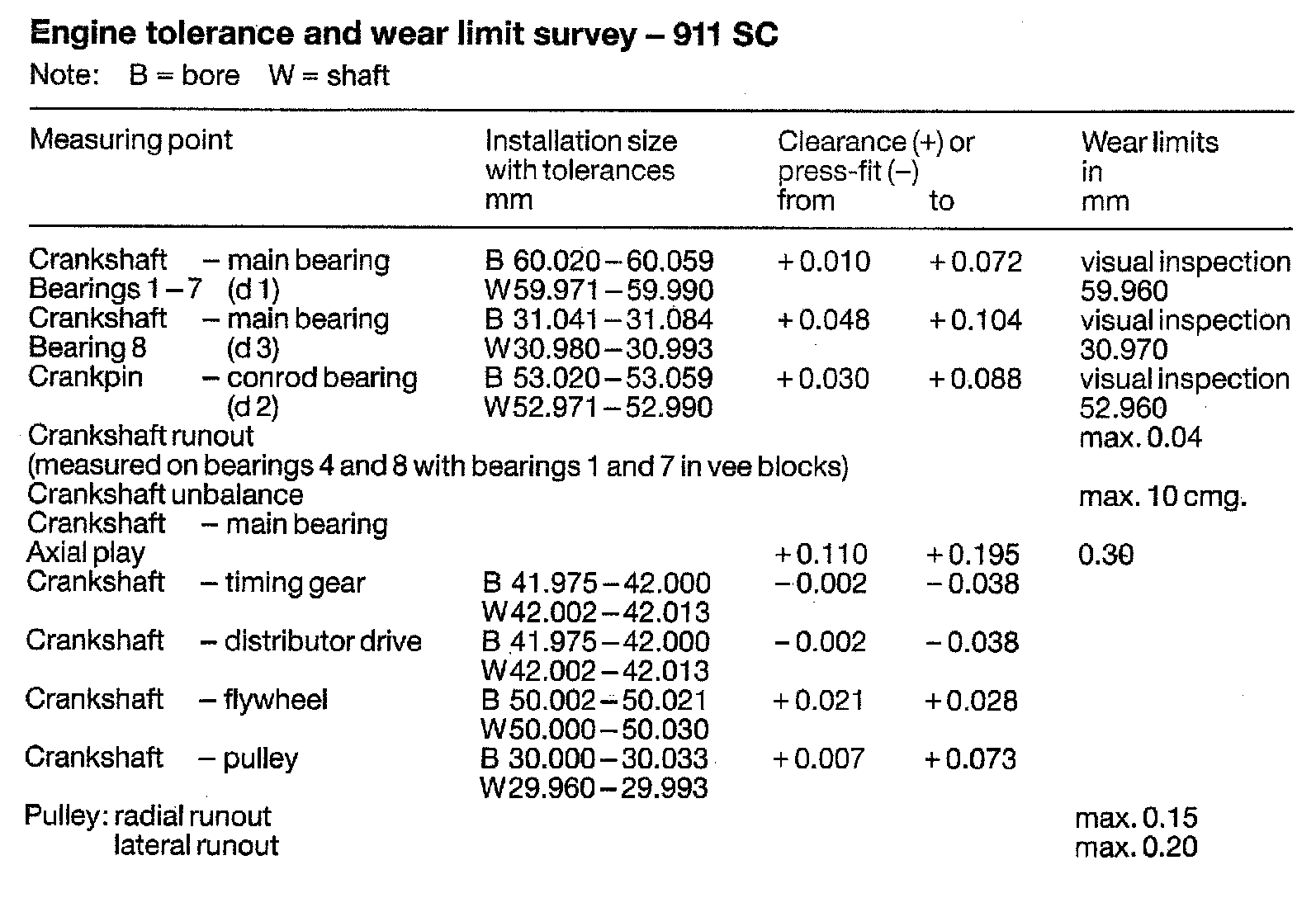

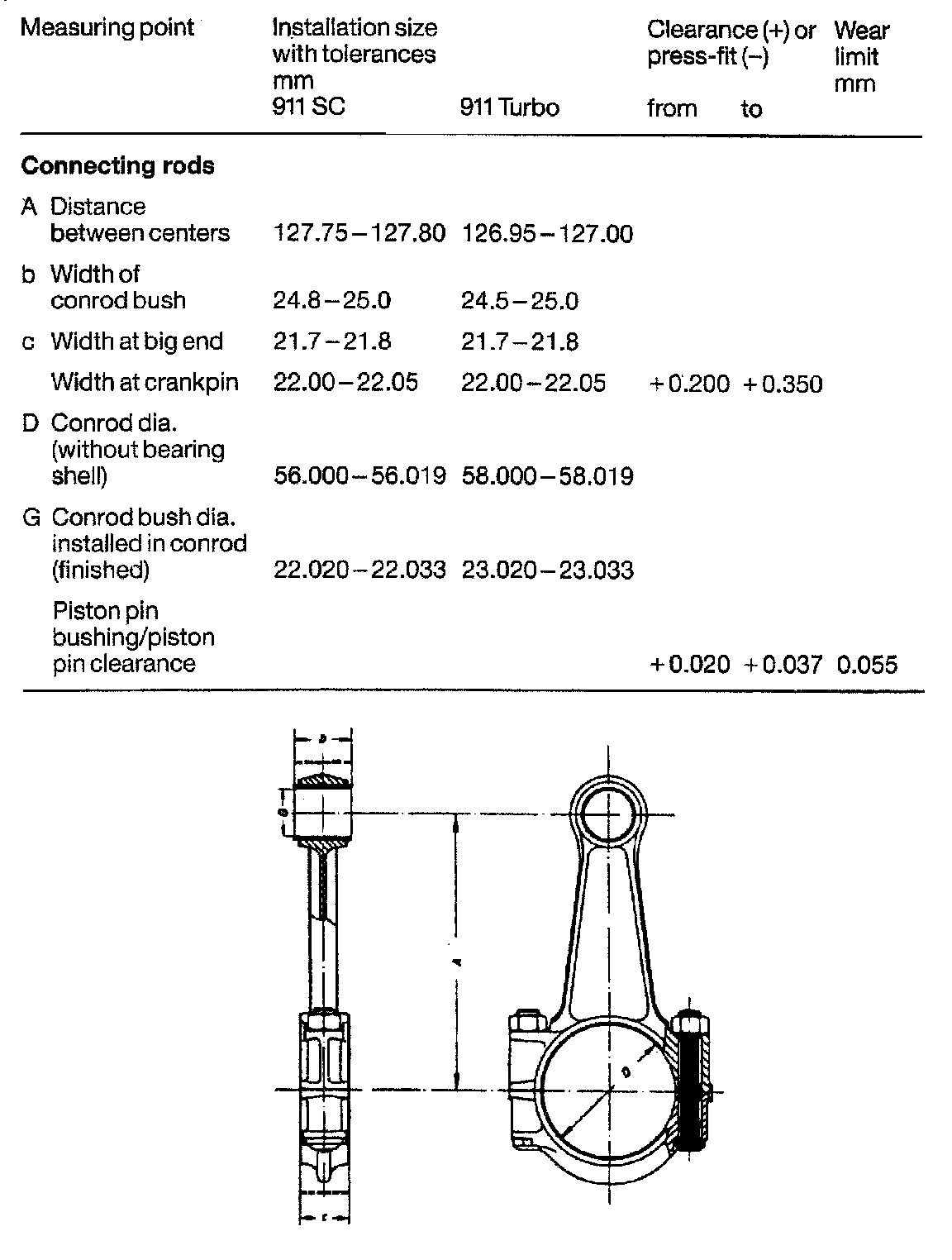

TOLERANCE AND WEAR LIMITS

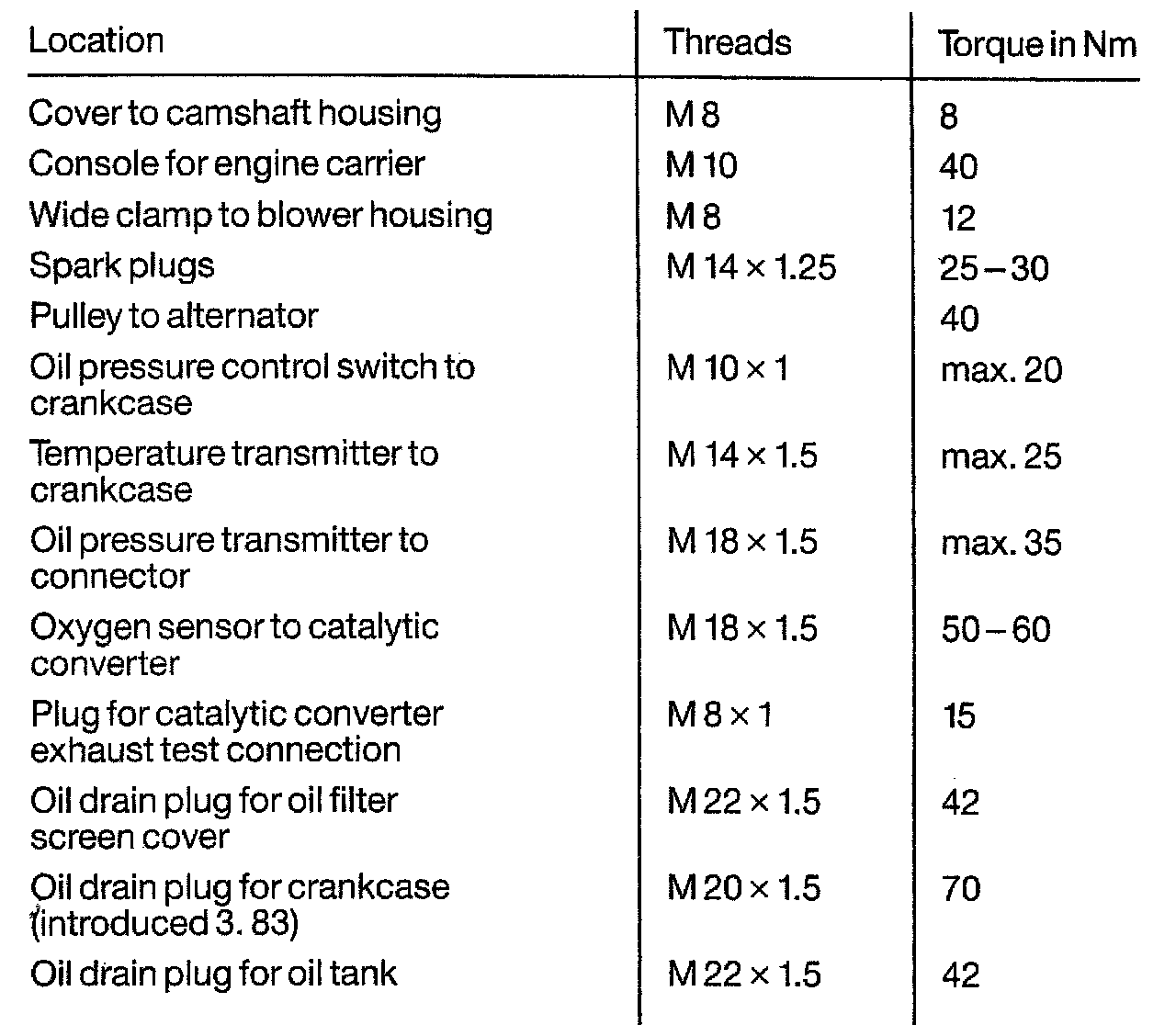

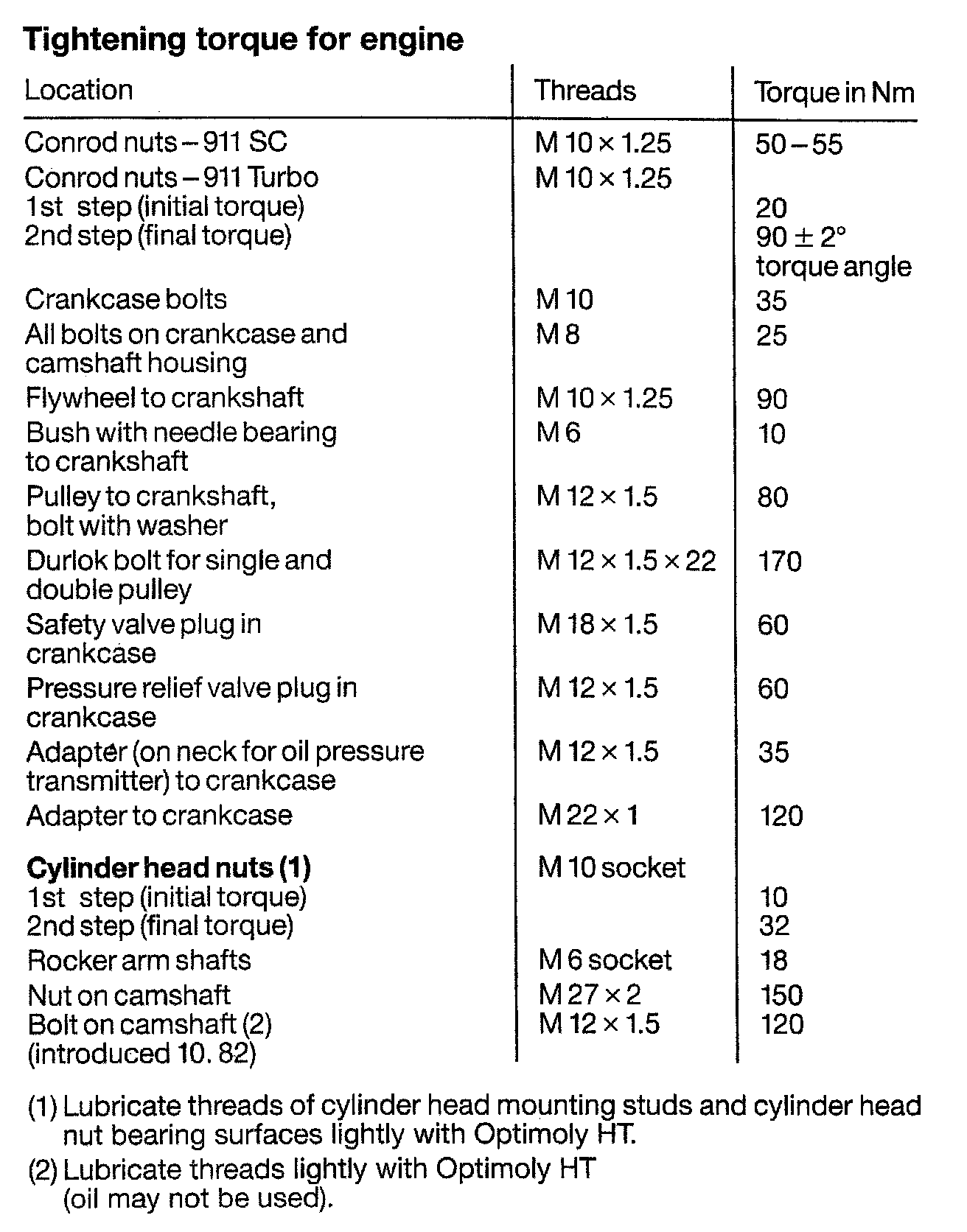

TIGHTENING SPECIFICATIONS

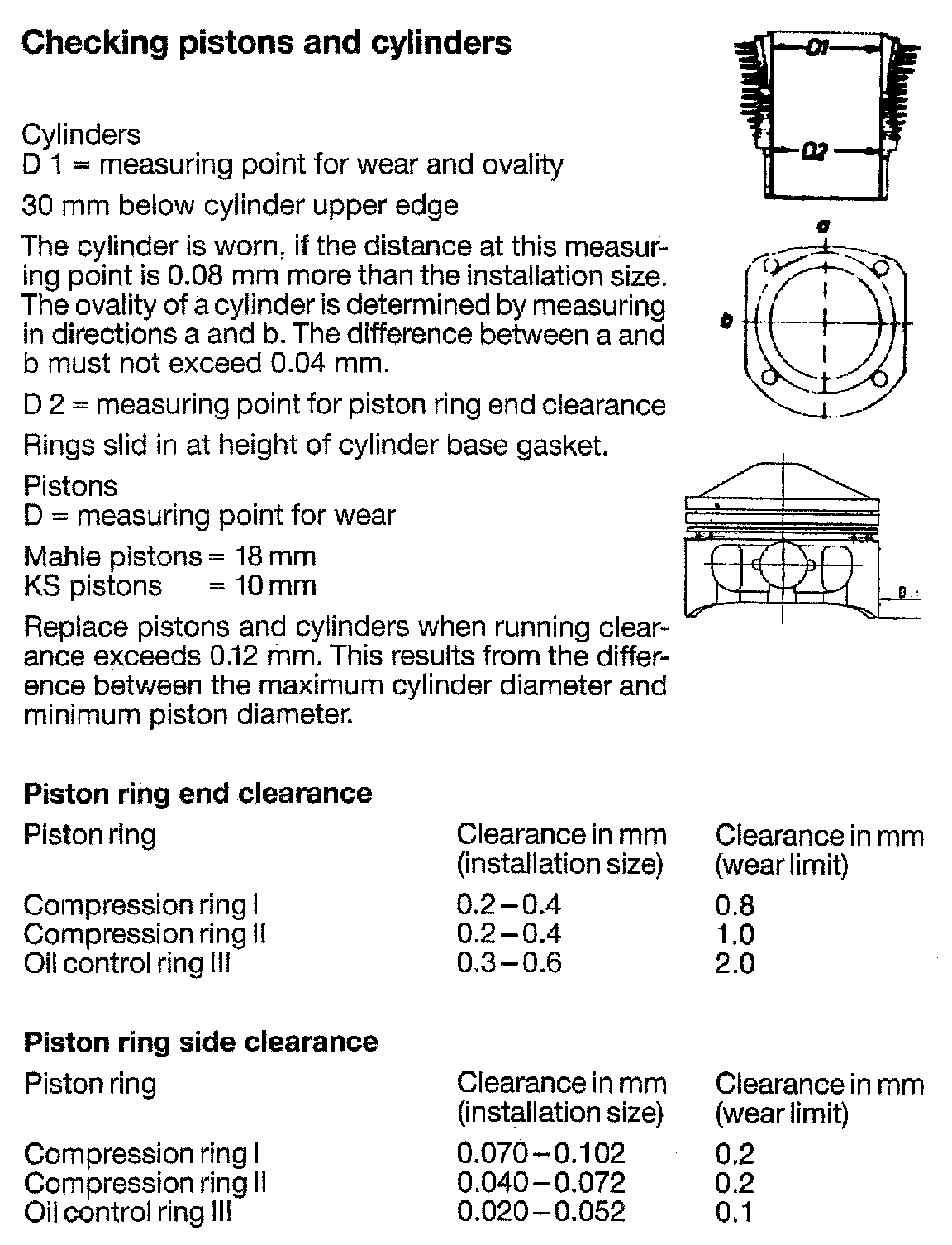

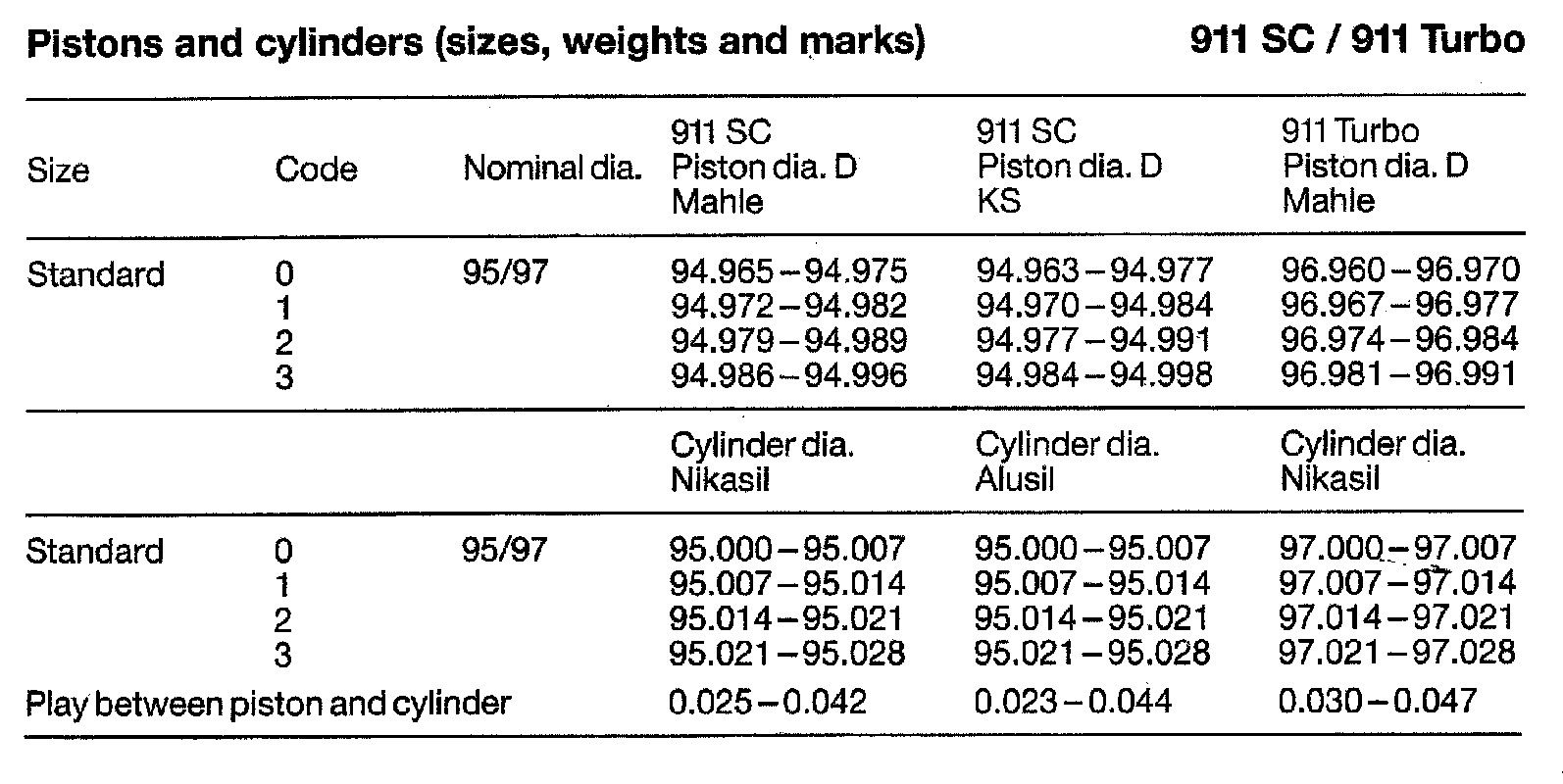

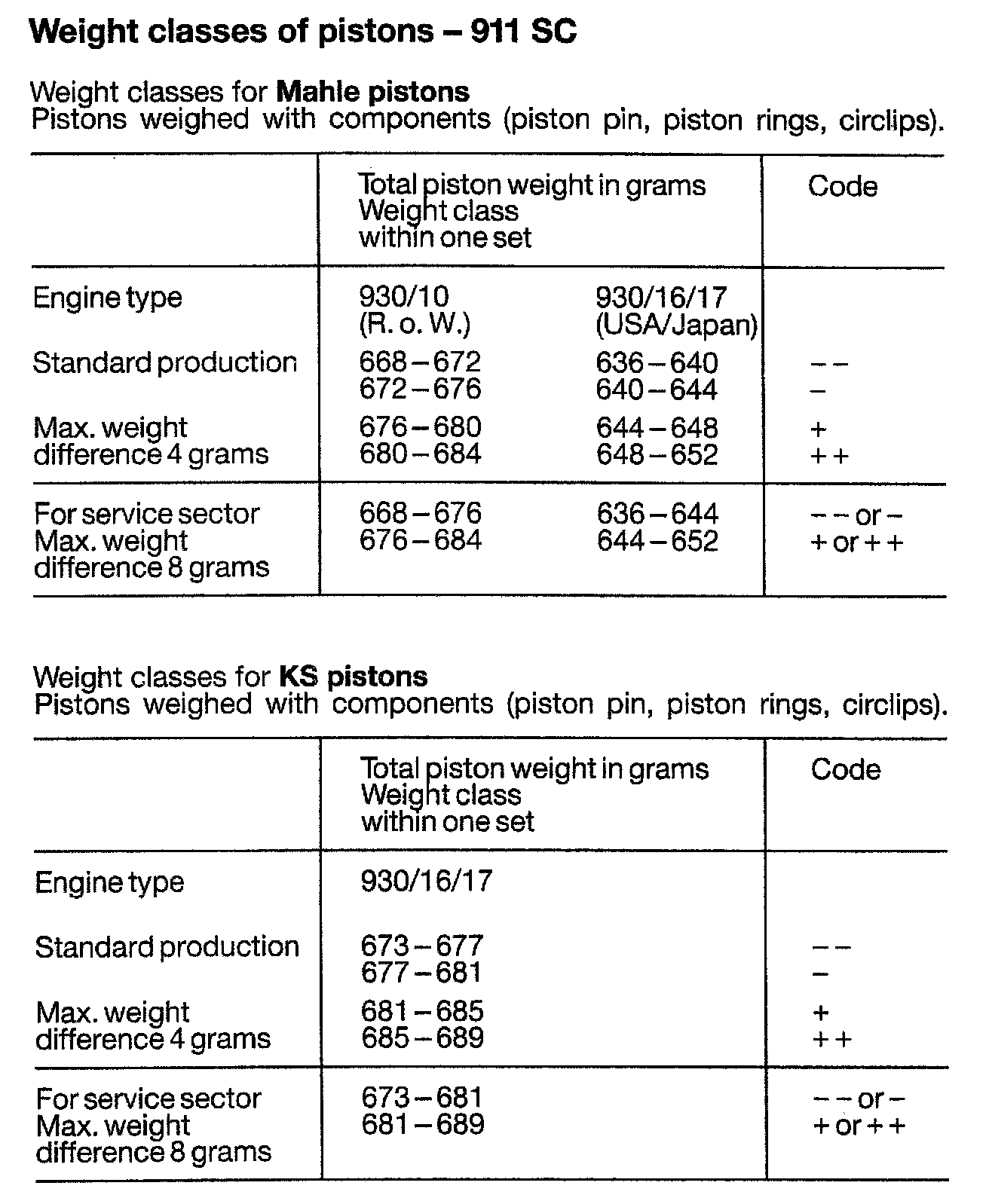

PISTON SPECIFICATIONS

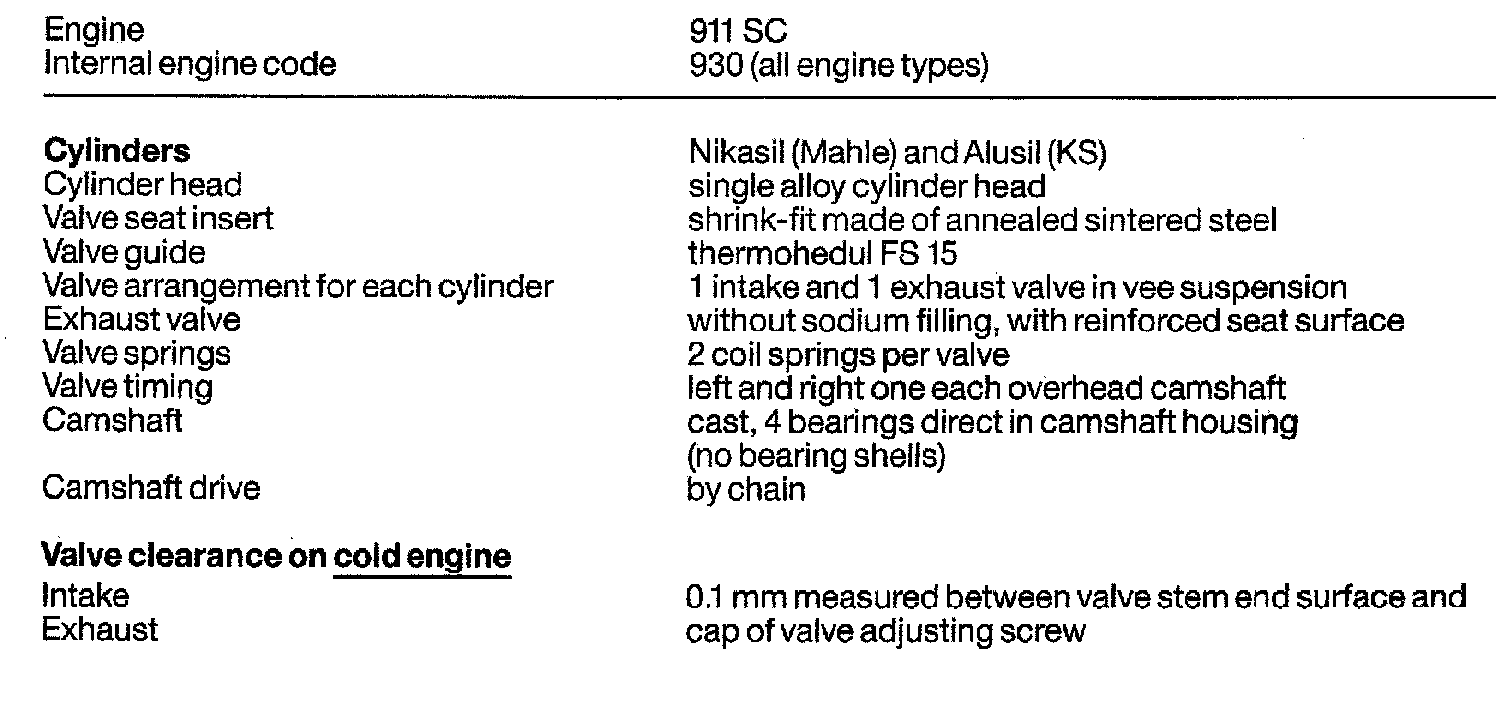

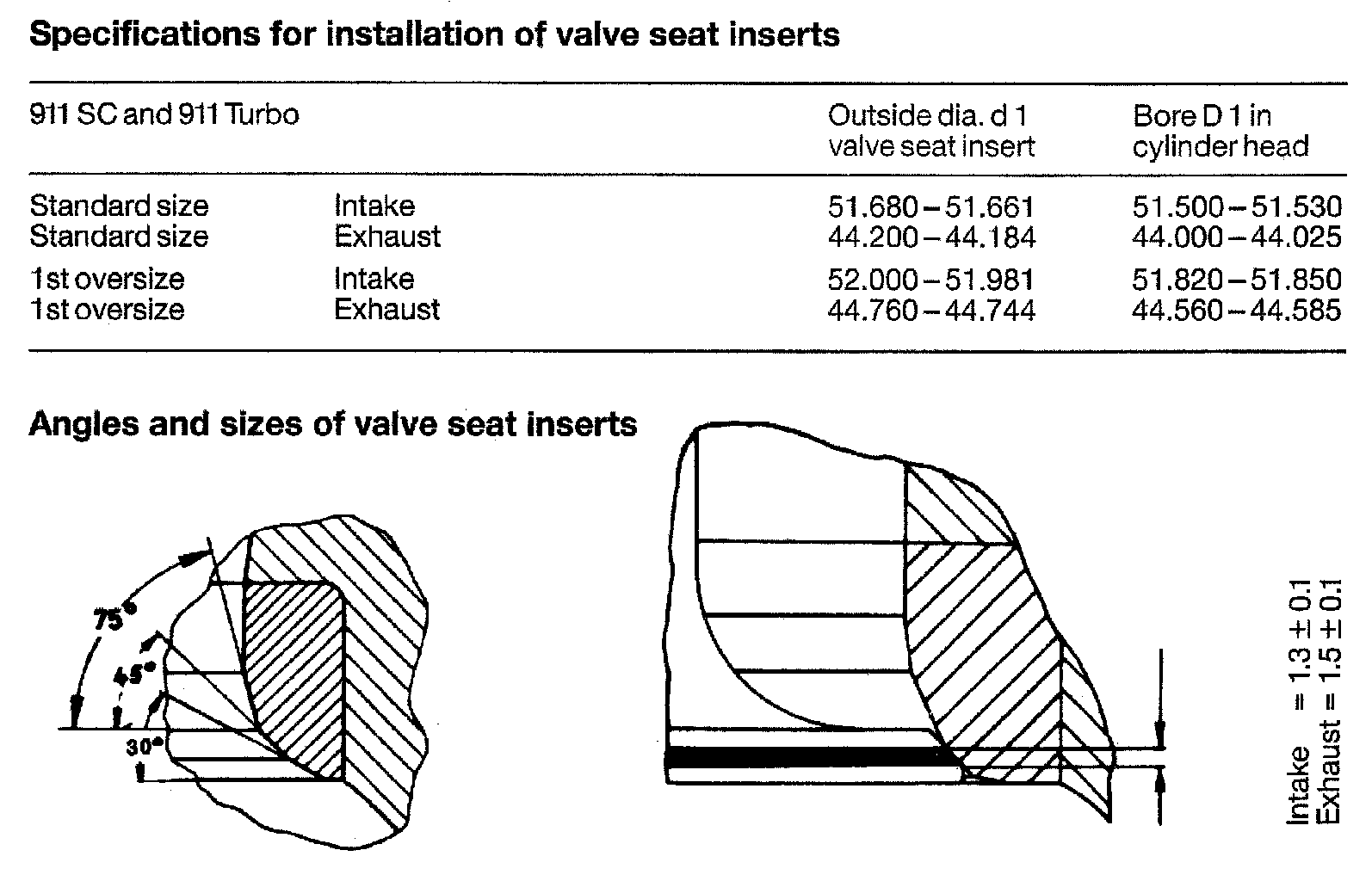

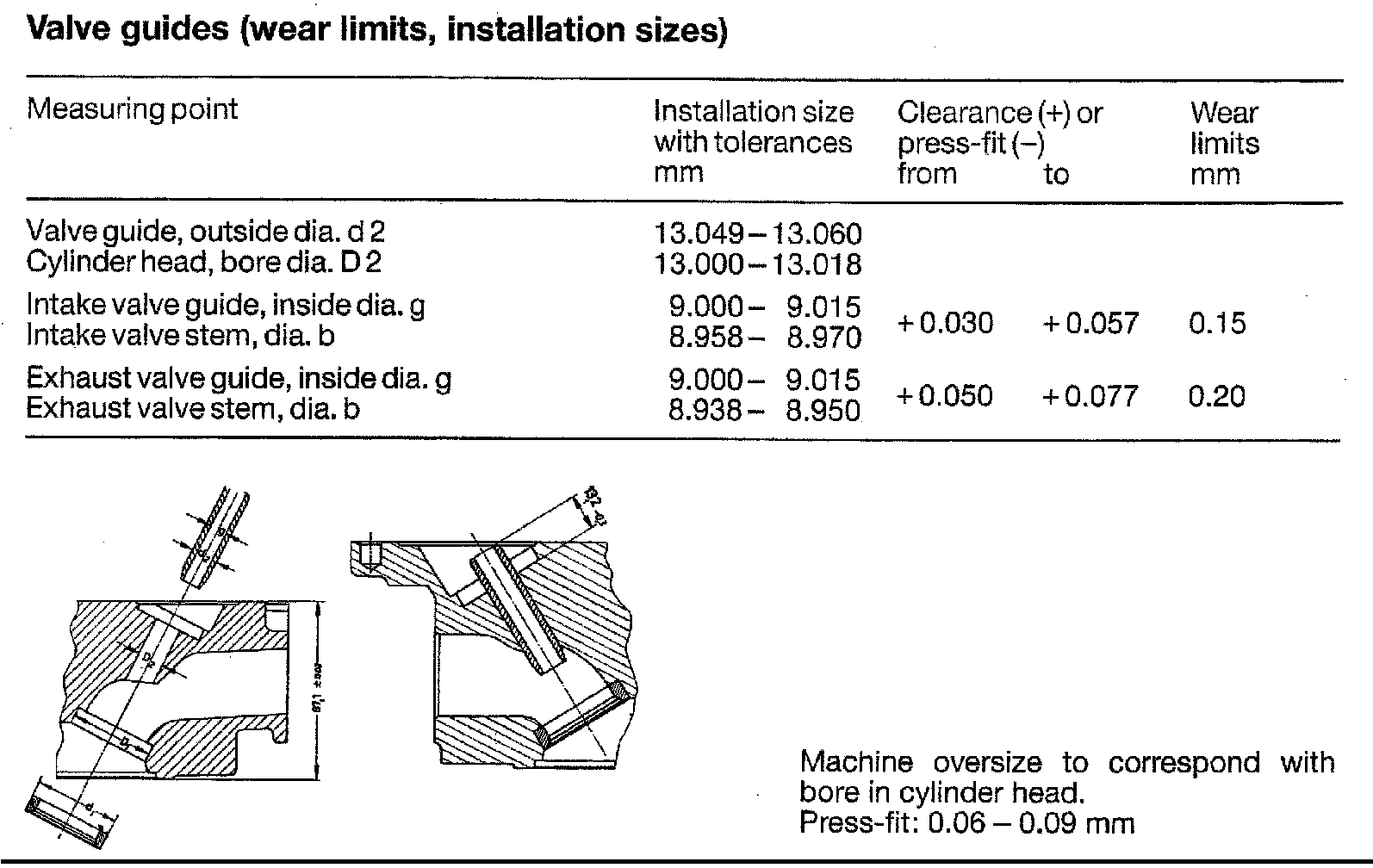

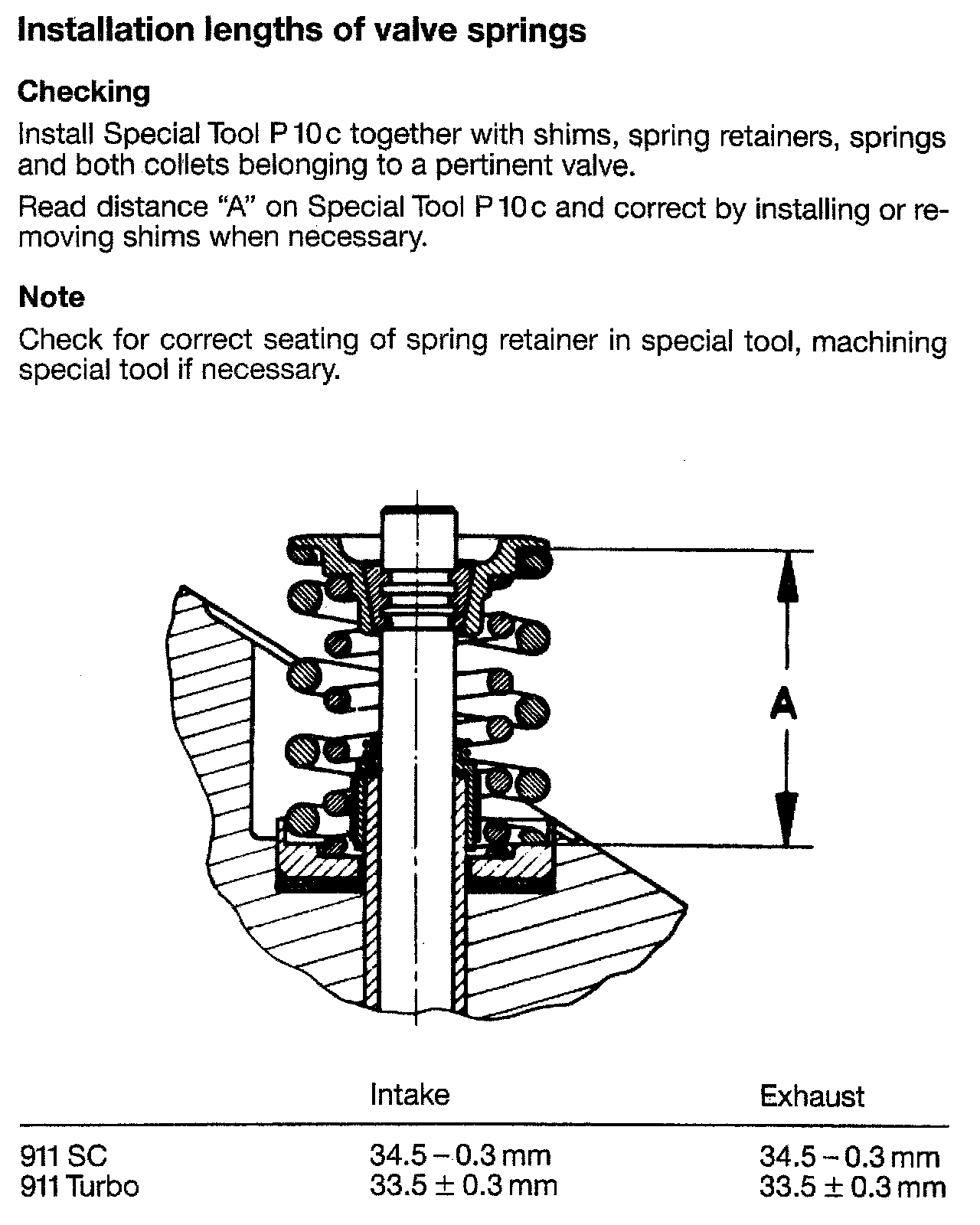

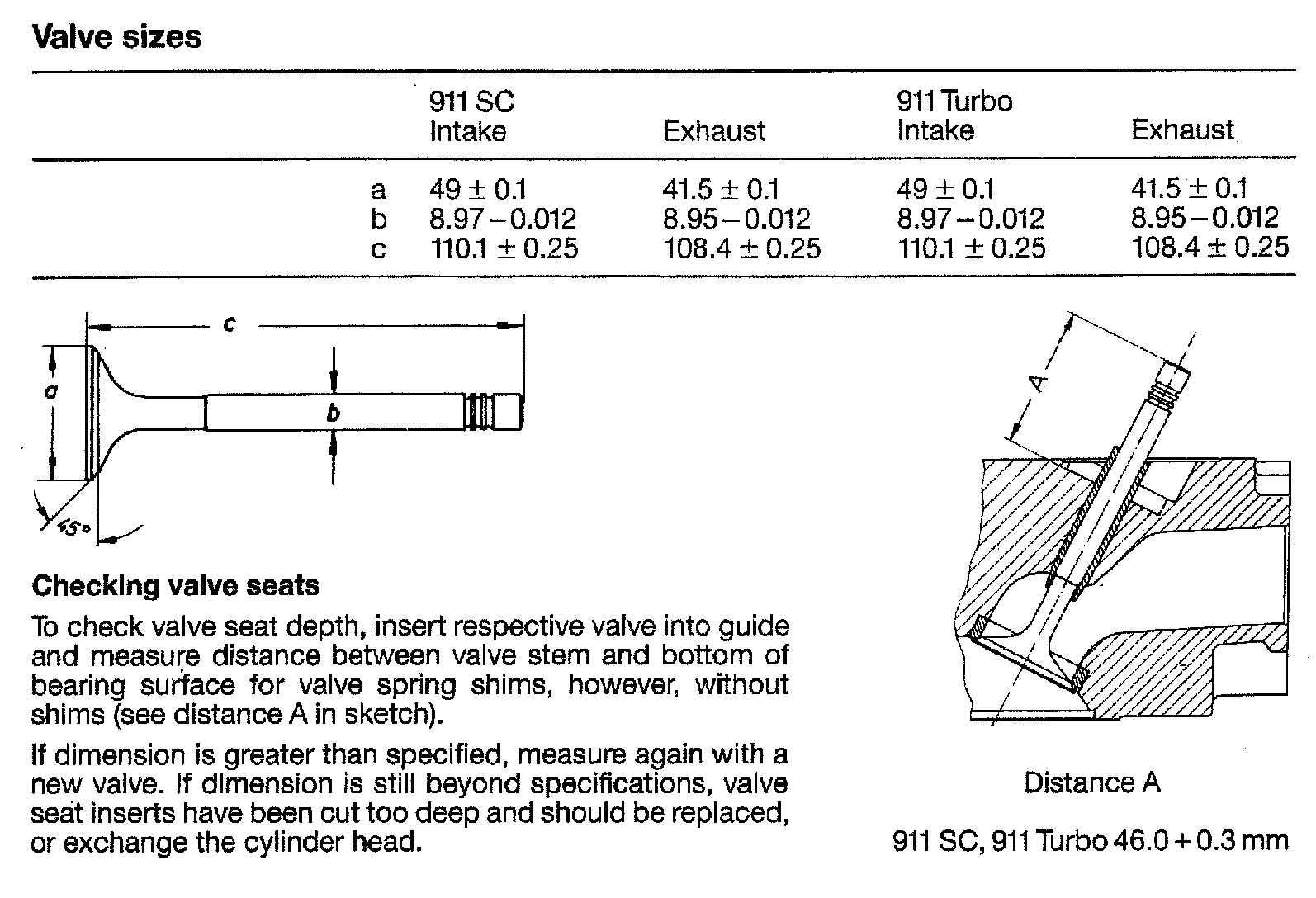

VALVE SPECIFICATIONS
