Power Window Switch




Component Connector End Views

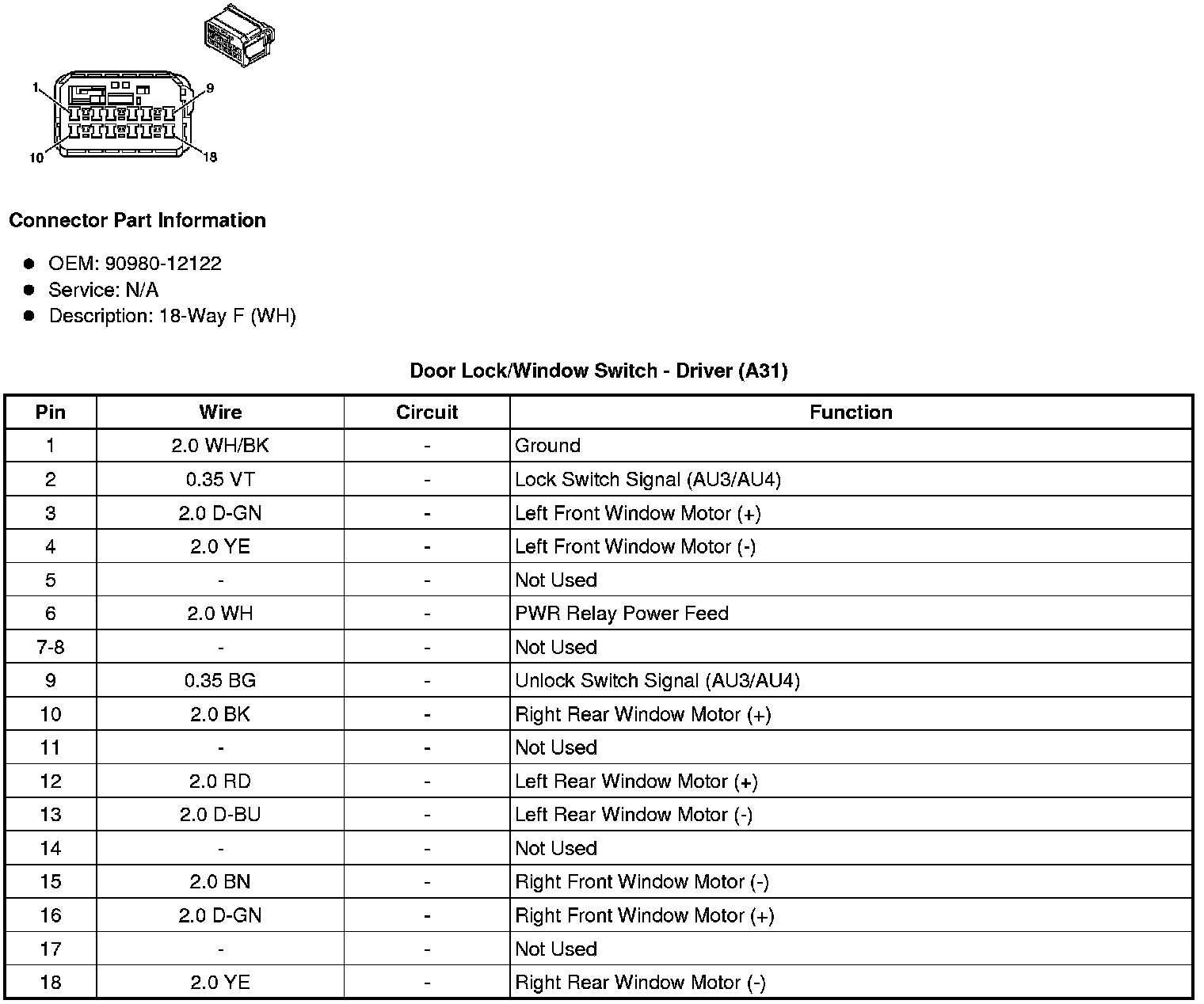

Door Lock/Window Switch - Driver (A31)





Window Switch - Left Rear (A31)





Window Switch - Passenger (A31)





Window Switch - Right Rear (A31)
