Wiper Switch




Component Connector End Views

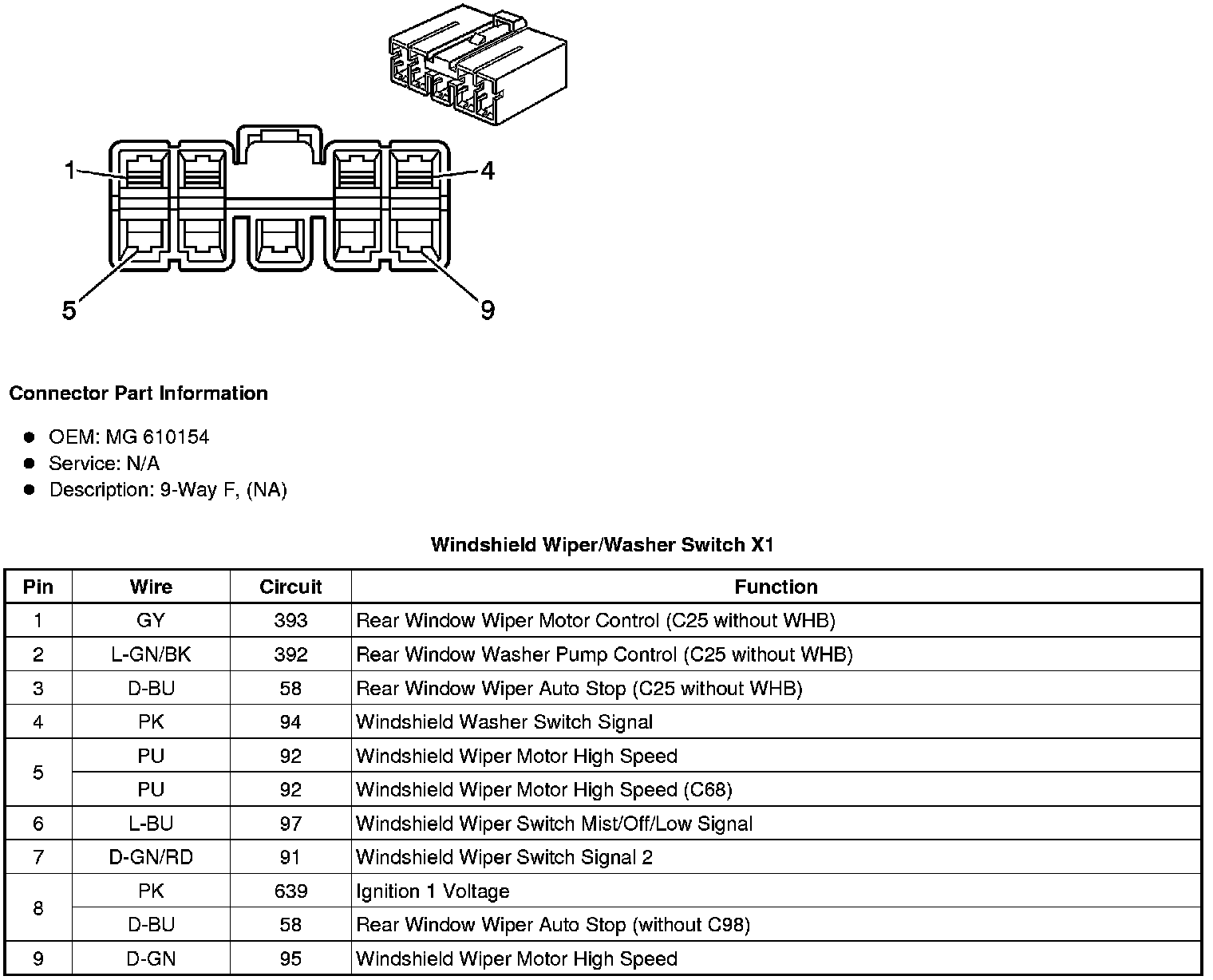

Windshield Wiper/Washer Switch X1





Windshield Wiper/Washer Switch X2 (WHB with C25)





Windshield Wiper/Washer Switch X2 (without WHB)
