Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Switch
Turn Signal Switch
Component Connector End Views

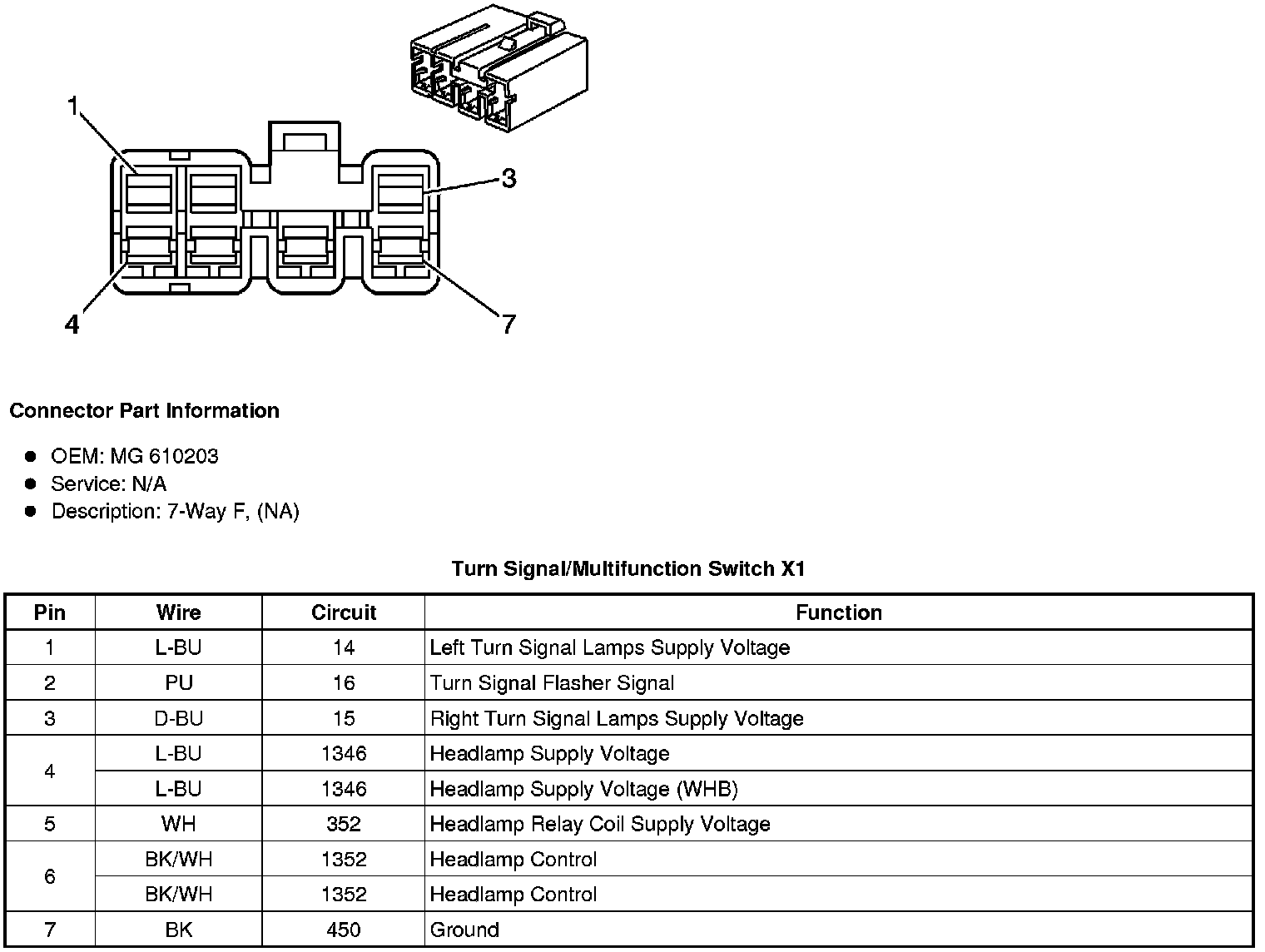

Turn Signal/Multifunction Switch X1
Turn Signal/Multifunction Switch X2
