Map Light

Component Connector End Views

Dome/Reading Lamps (without CF5)

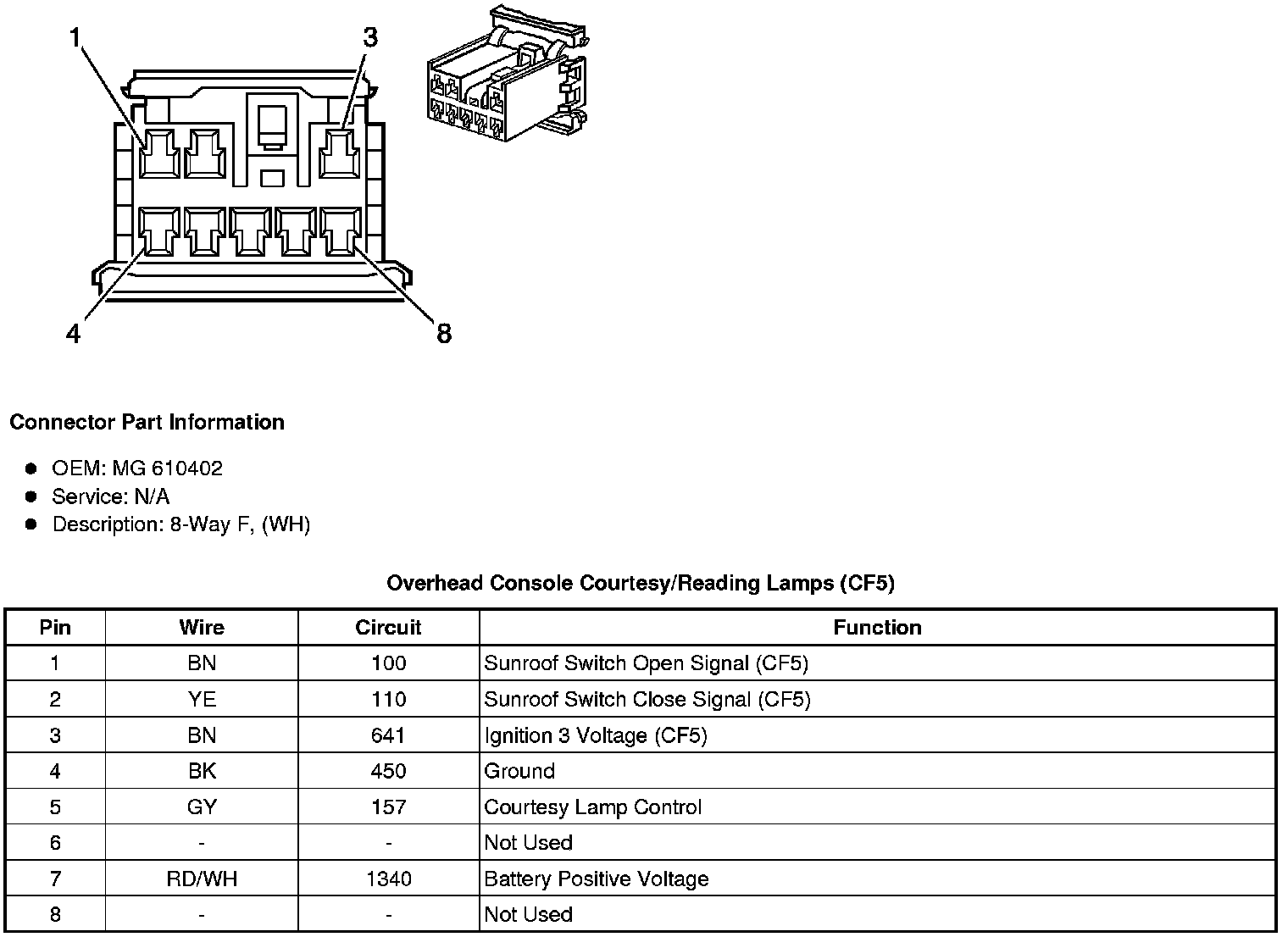

Overhead Console Courtesy/Reading Lamps (CF5)
