Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
Combination Switch
Component Connector End Views

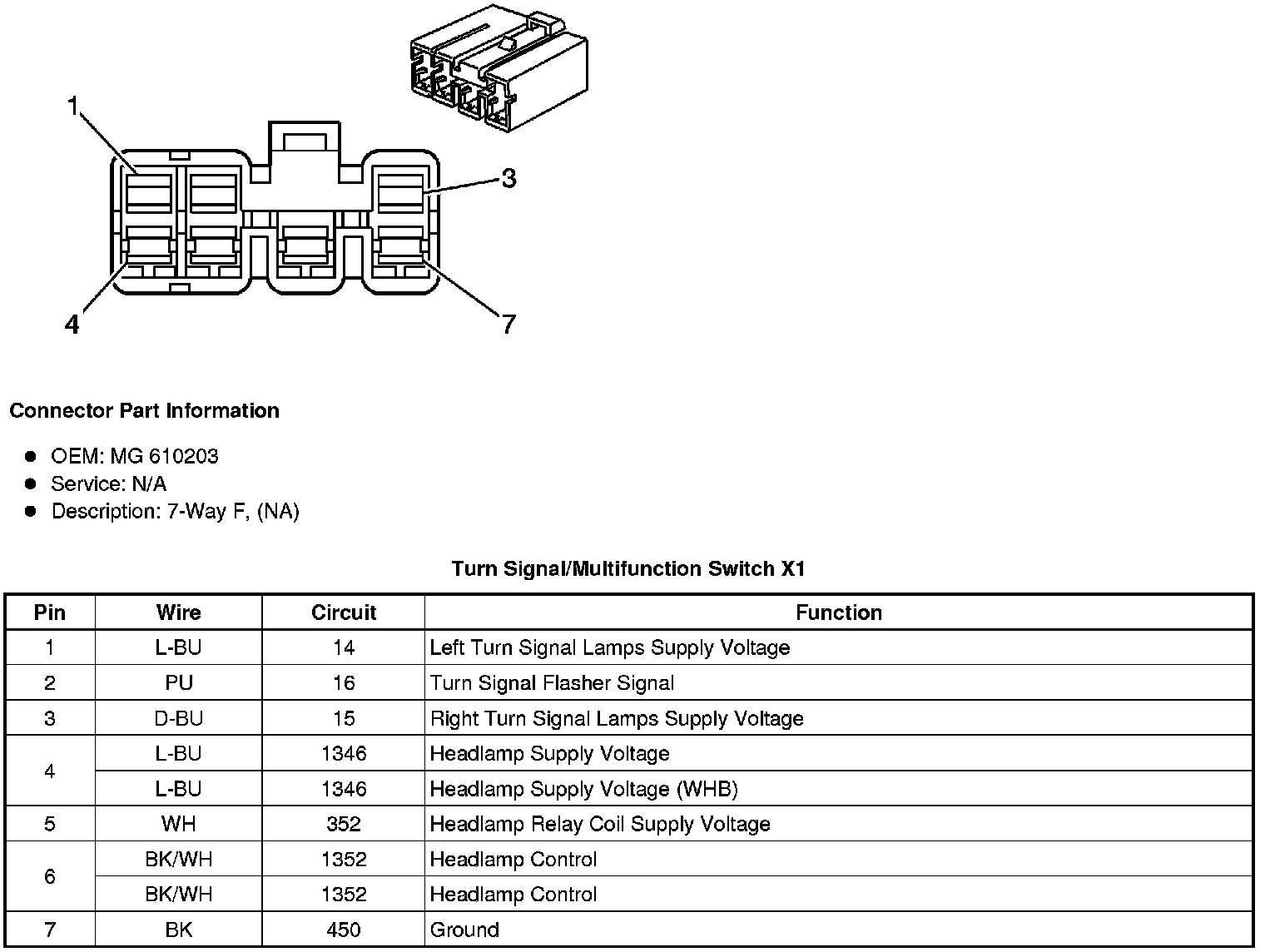

Turn Signal/Multifunction Switch X1
Turn Signal/Multifunction Switch X2
