Ignition Coil: Diagrams




Component Connector End Views

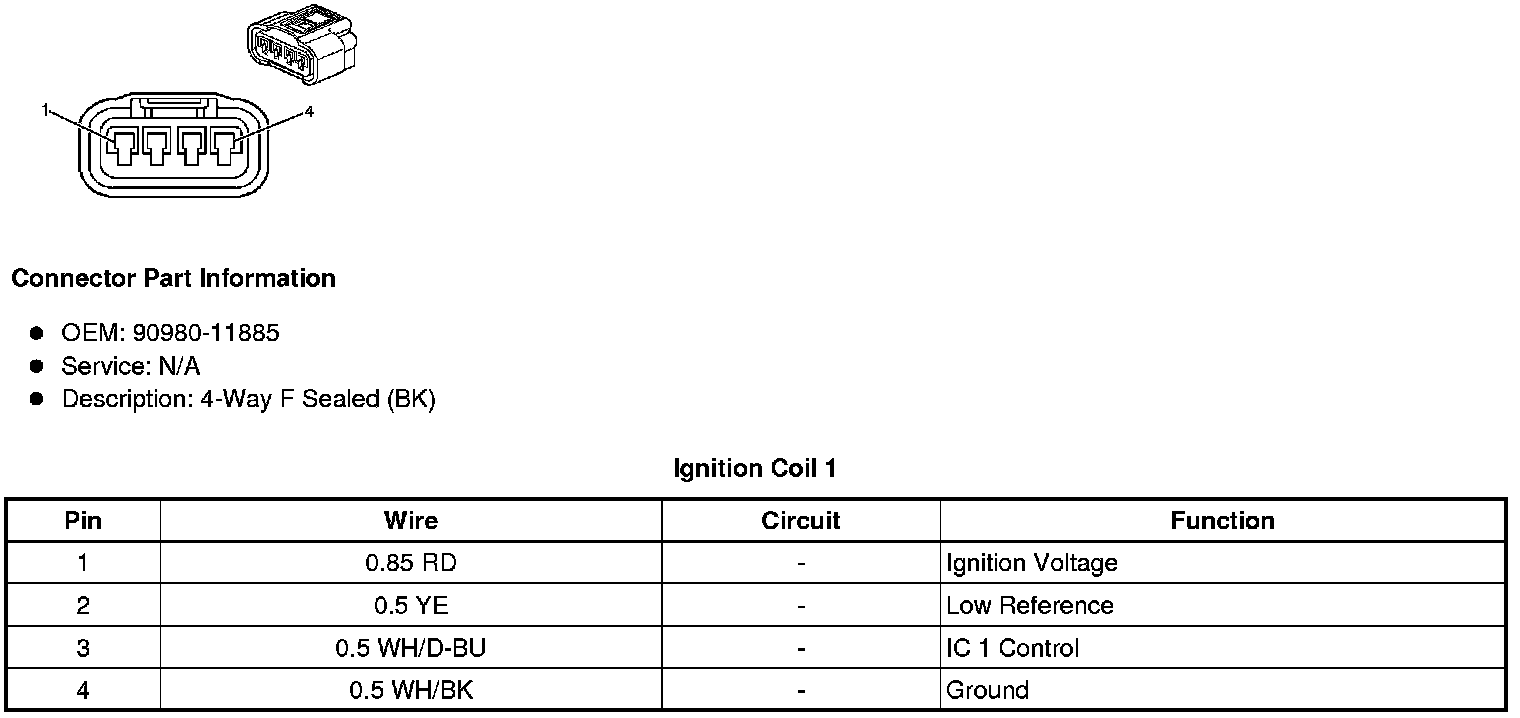

Ignition Coil 1

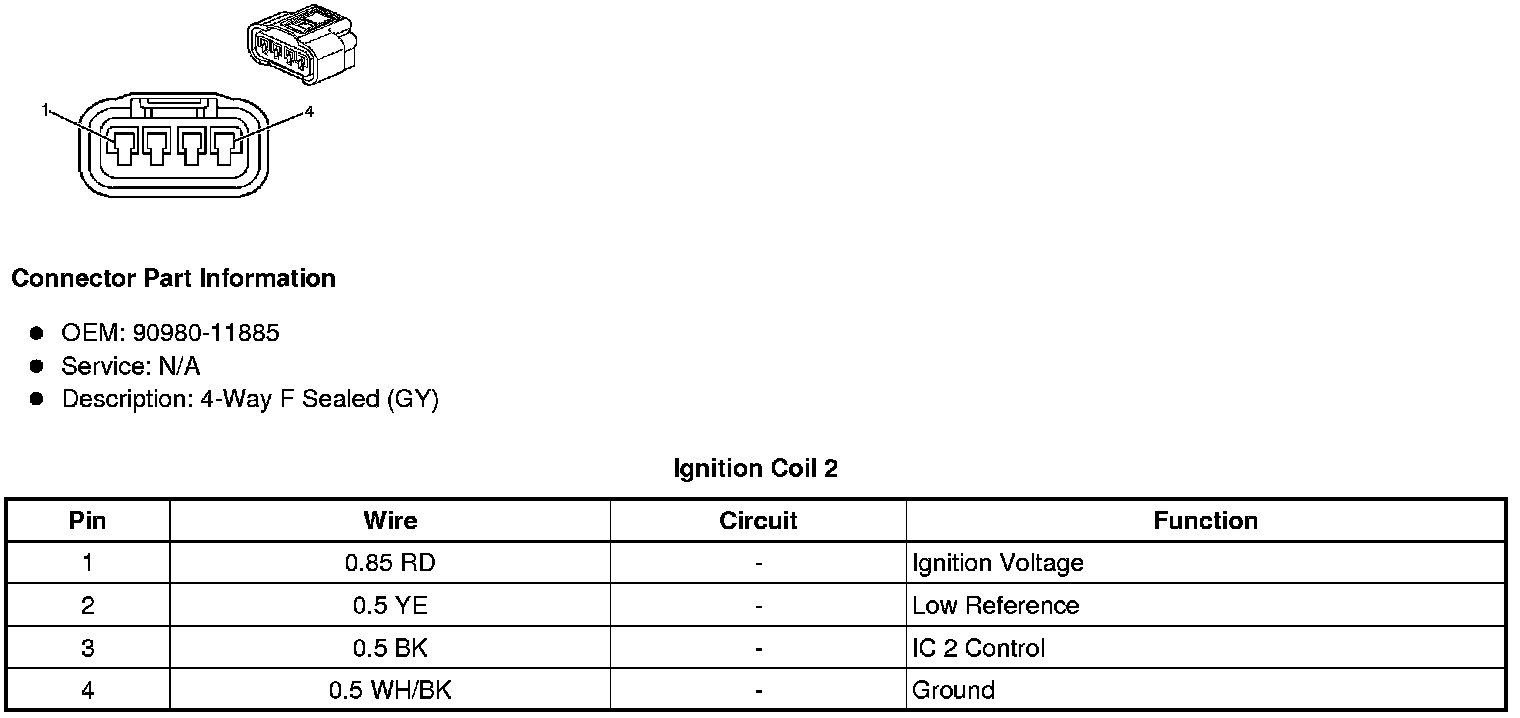

Ignition Coil 2






Ignition Coil 3






Ignition Coil 4
