Second Brake Piston Assembly

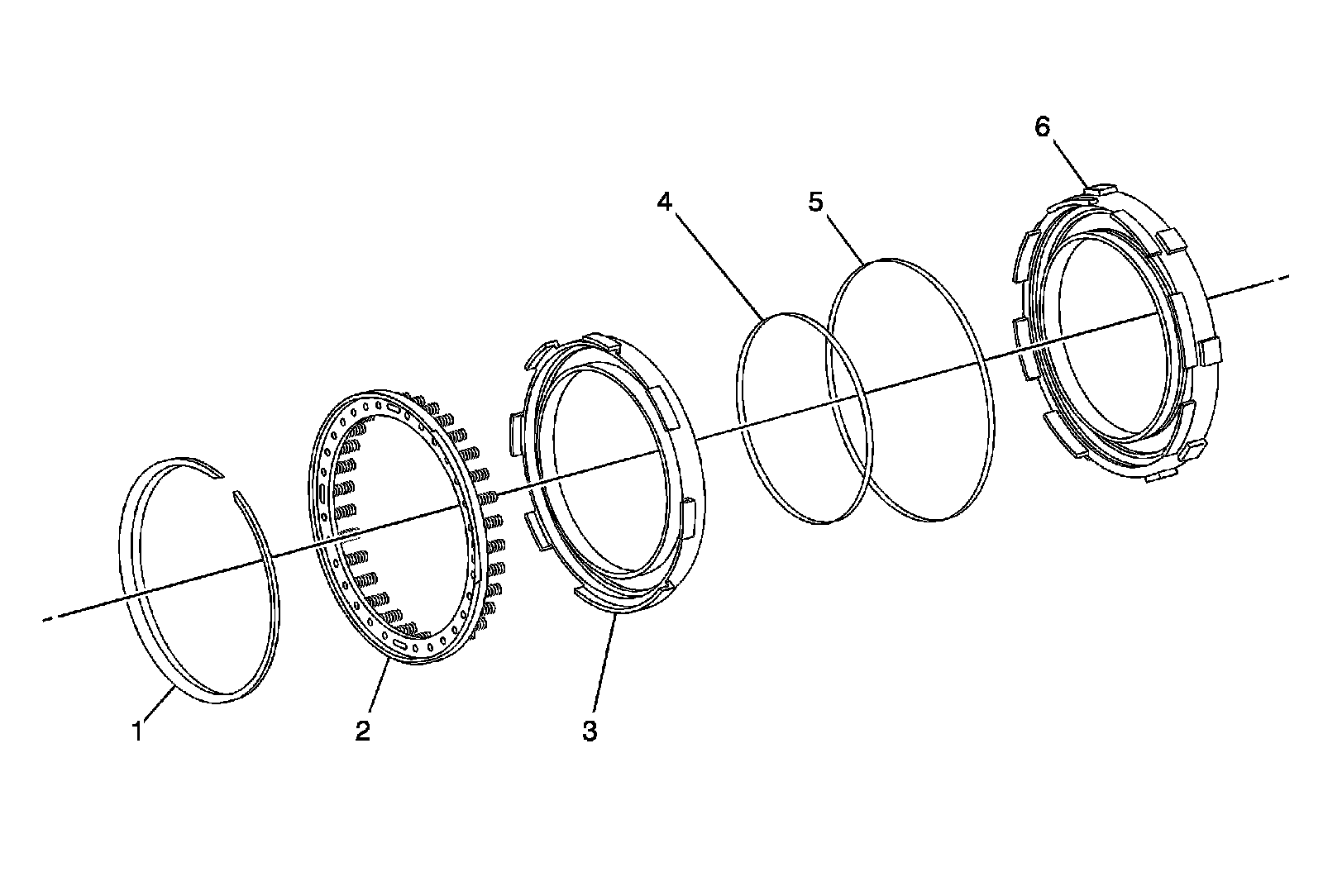

Disassembled Views

Second Brake Piston Assembly




1 - Snap Ring
2 - 2nd Brake Piston Return Spring Sub-Assembly
3 - 2nd Brake Piston
4 - 2nd Brake Cylinder O-ring
5 - 2nd Brake Cylinder O-ring
6 - 2nd Brake Cylinder
