Fuel Tank Unit




Component Connector End Views

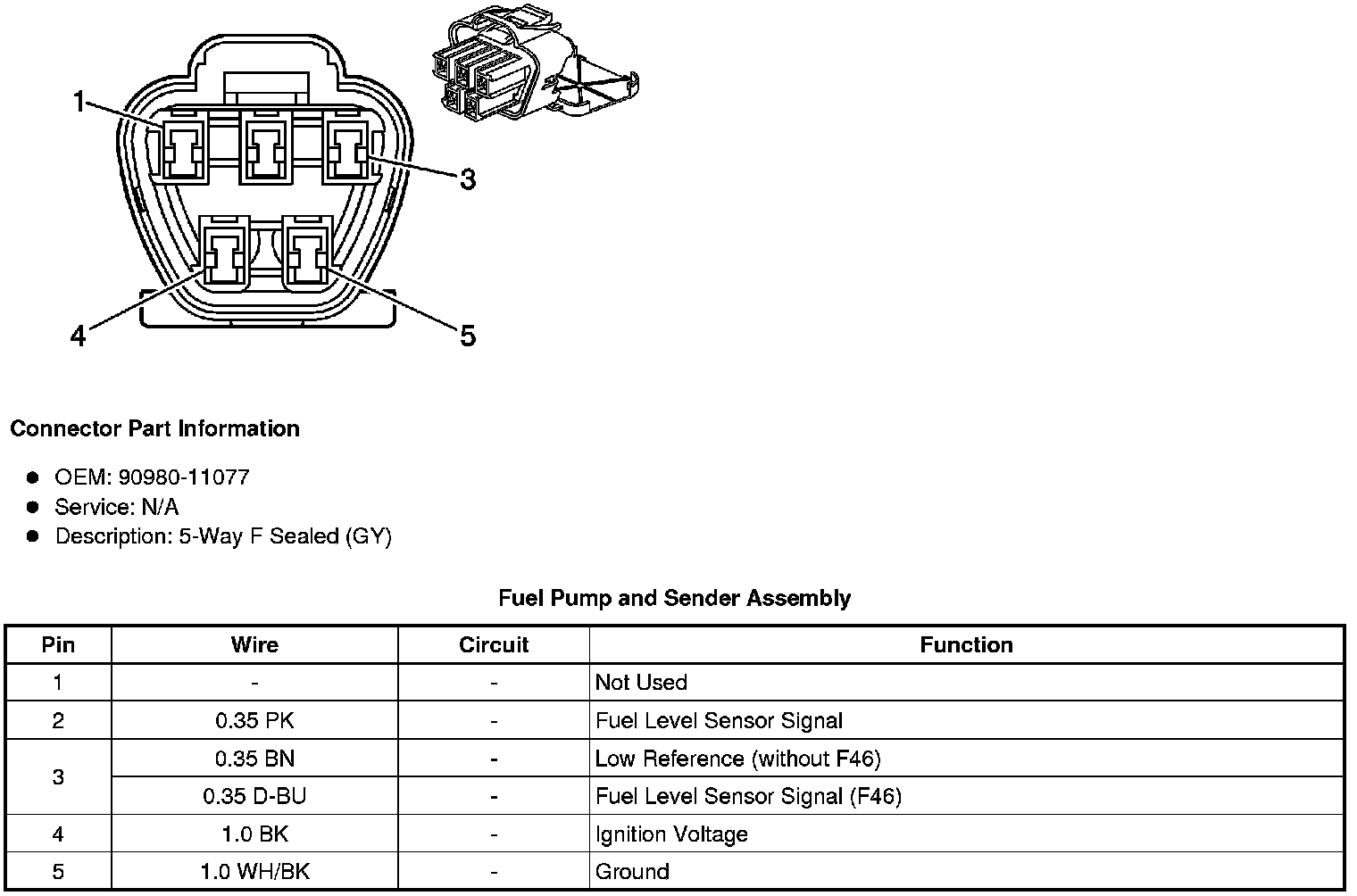

Fuel Pump and Sender Assembly






Fuel Pump and Sender Assembly - Secondary (F46)
