Daytime Running Lamp Control Unit

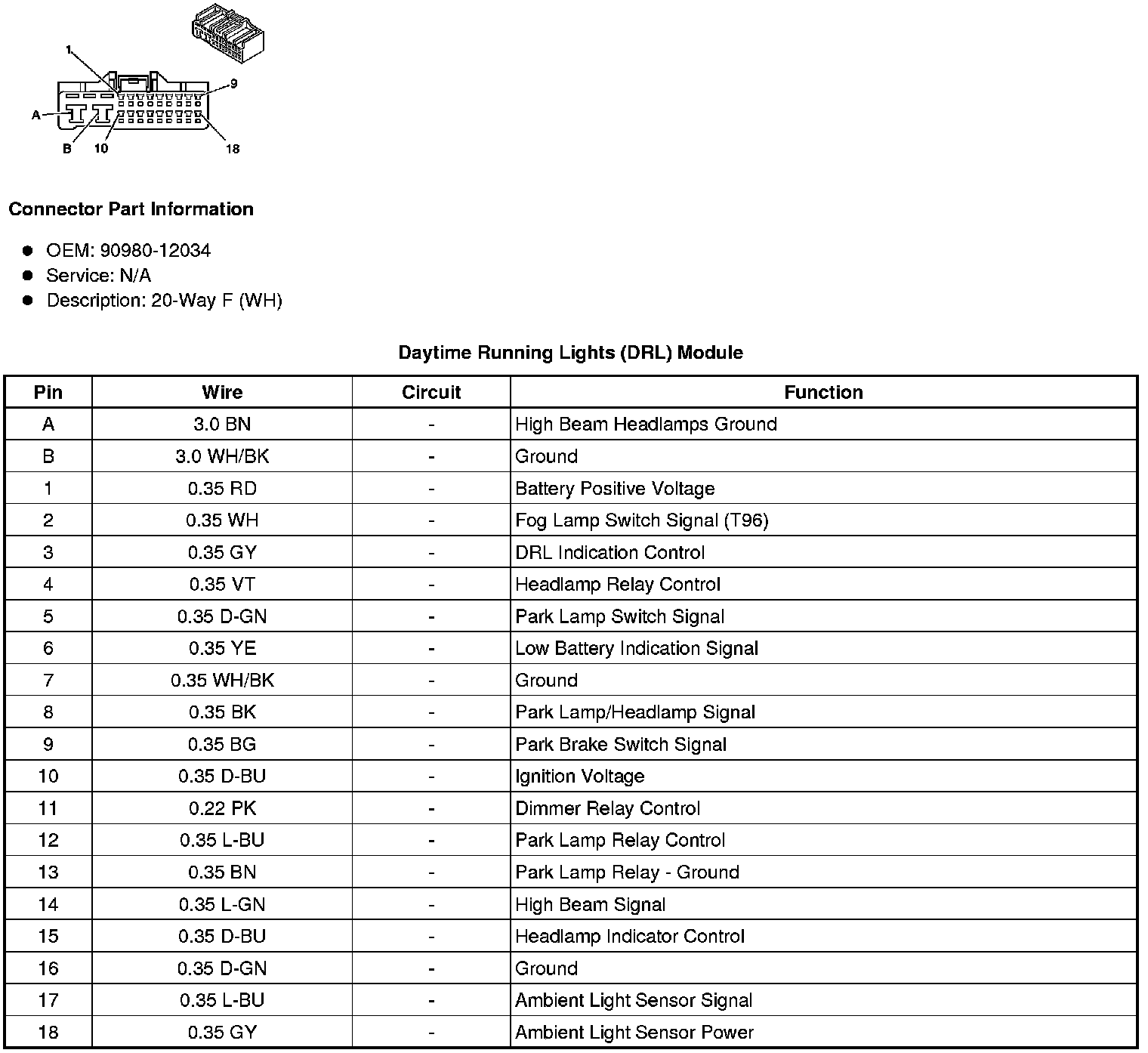

Component Connector End Views

Daytime Running Lights (DRL) Module
