Home >> Pontiac >> 2009 >> Torrent FWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch




Component Connector End Views

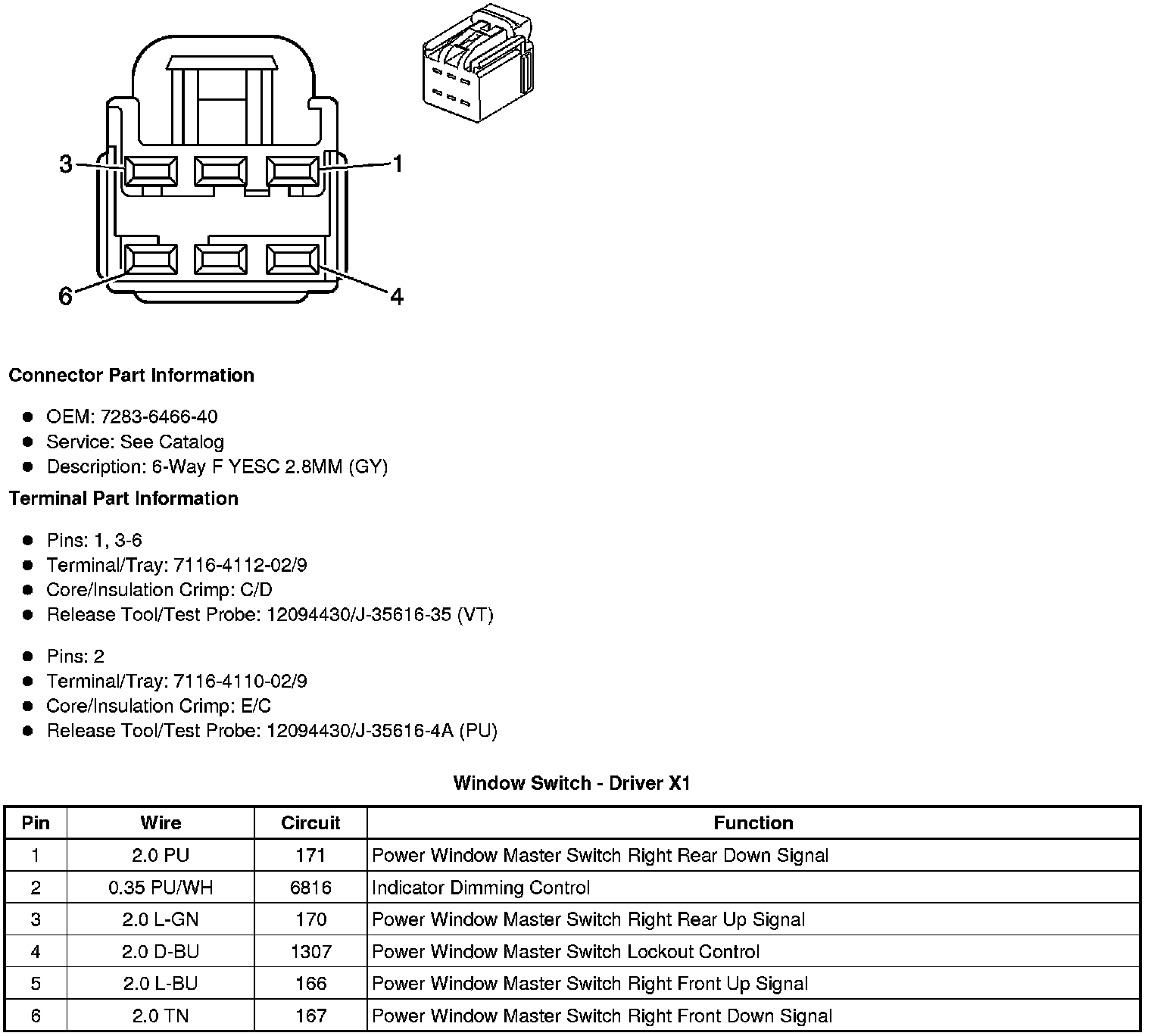

Window Switch - Driver X1

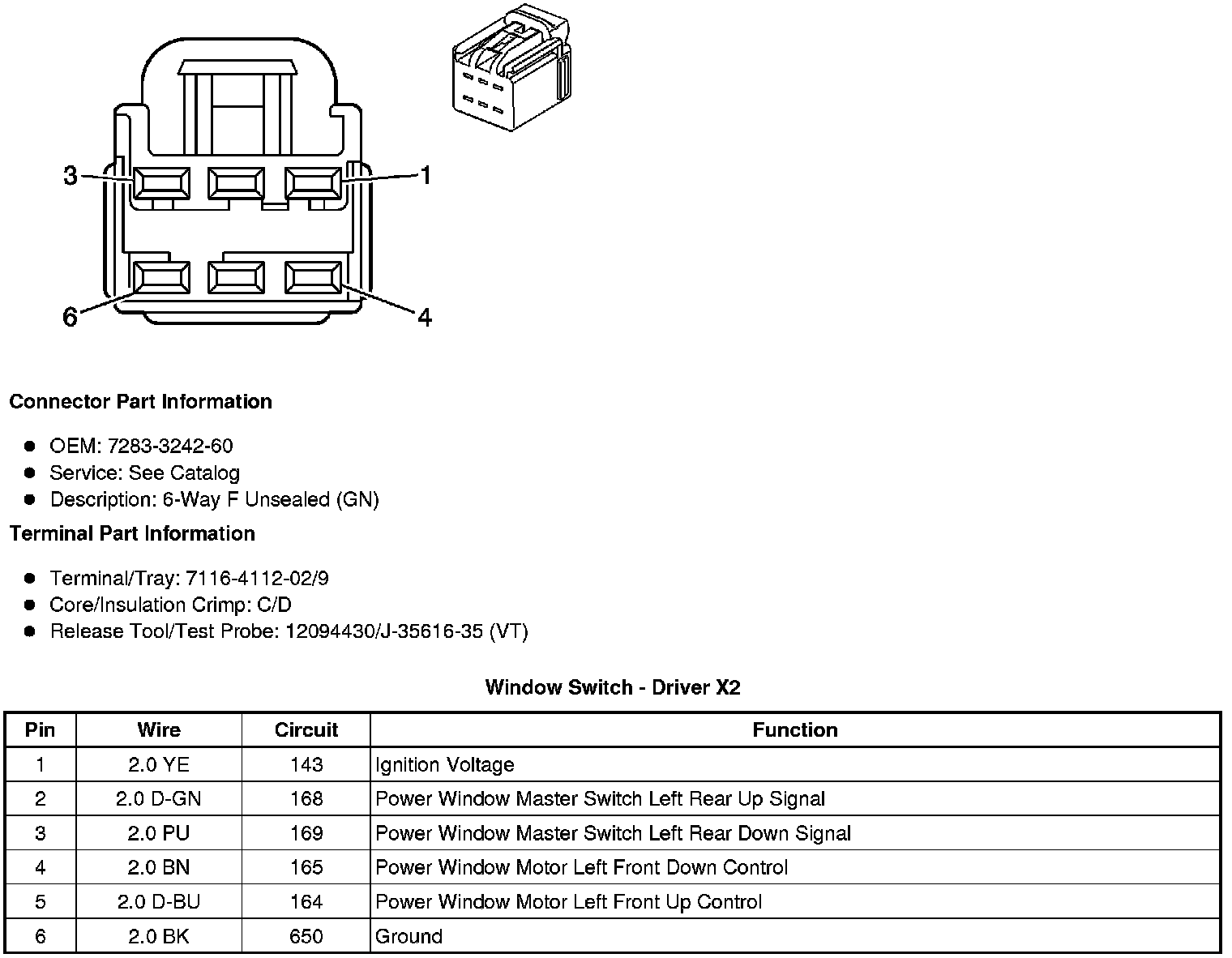

Window Switch - Driver X2

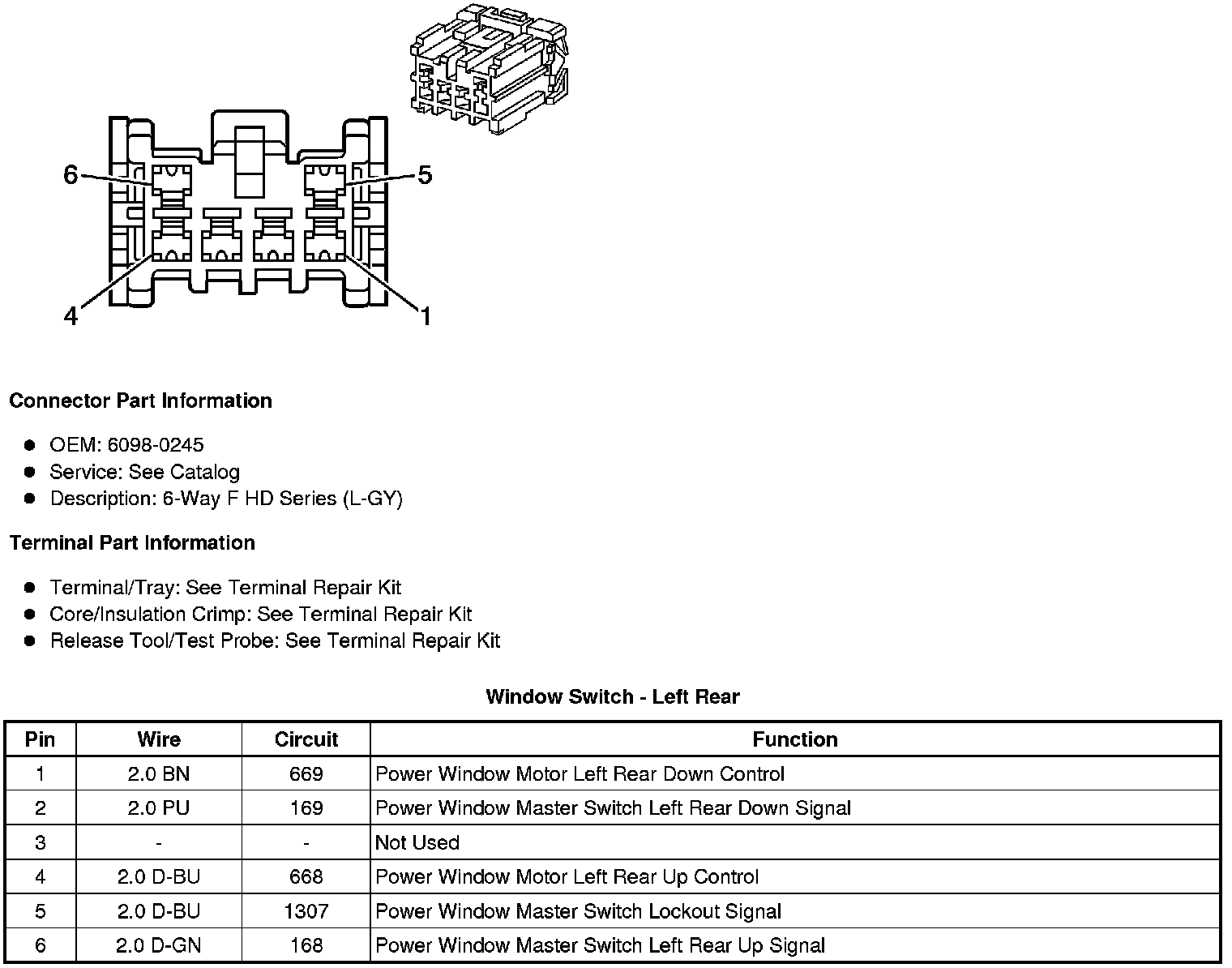

Window Switch - Left Rear

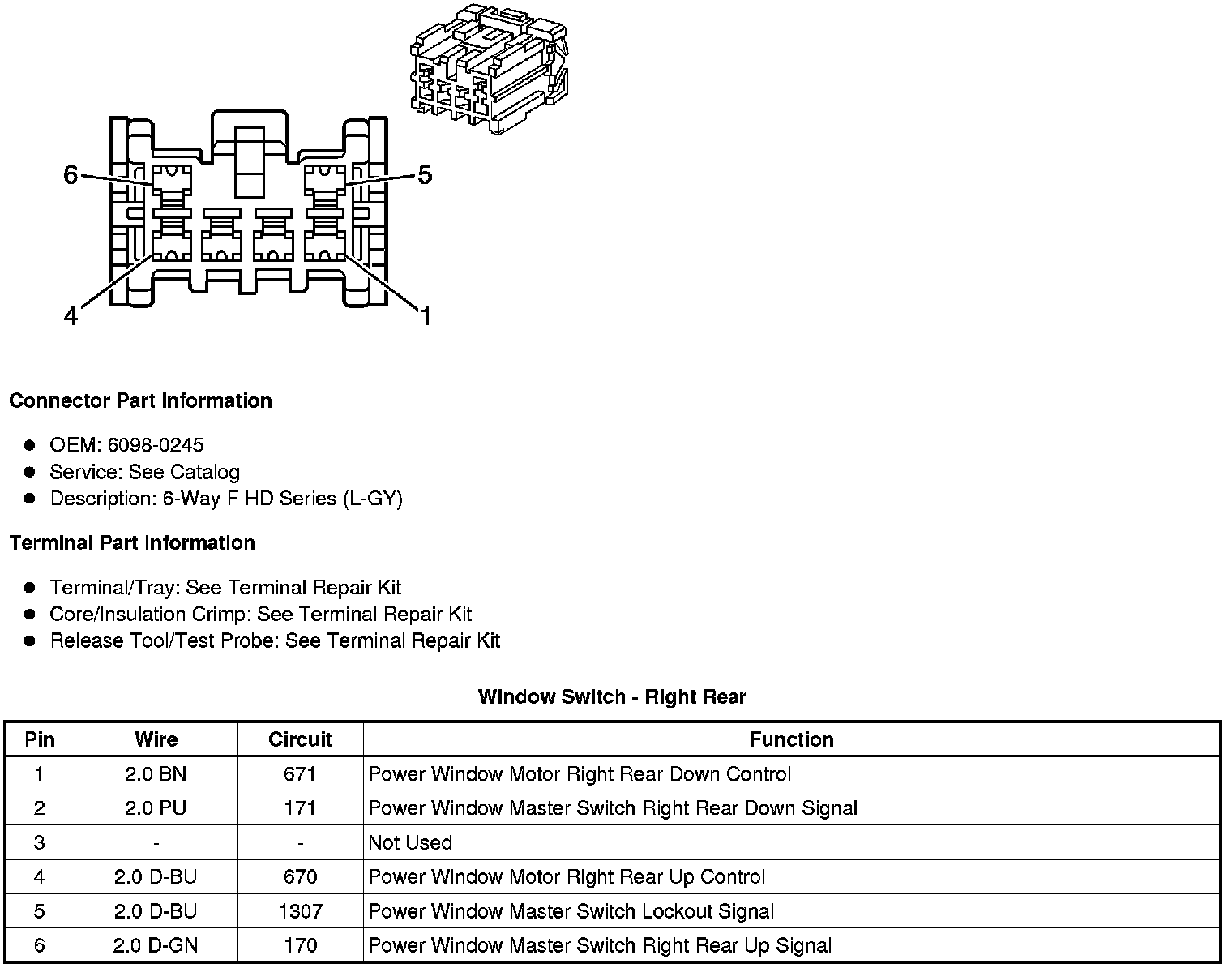

Window Switch - Right Rear
