Camshaft Position Sensor: Diagrams




Component Connector End Views

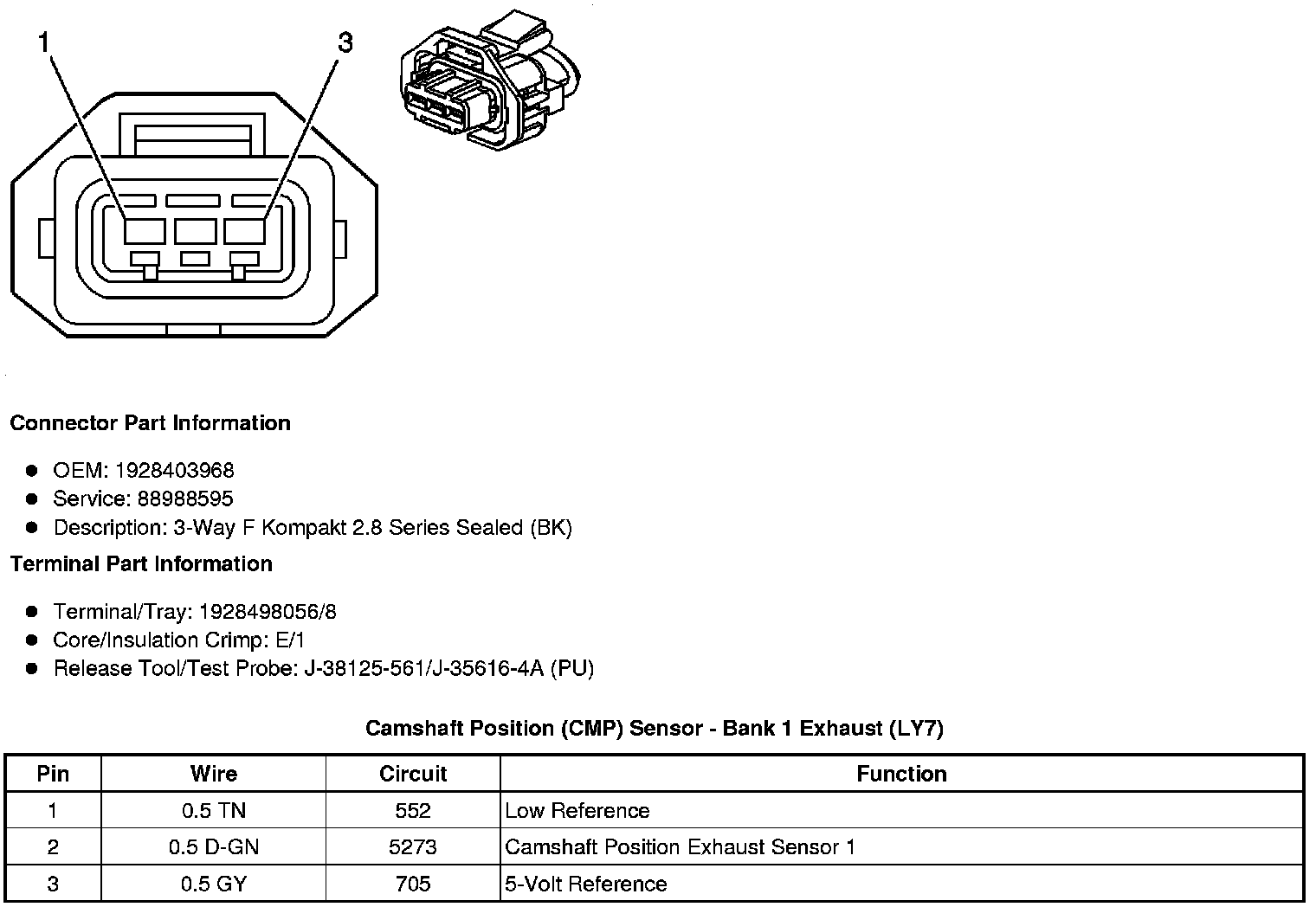

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LY7)

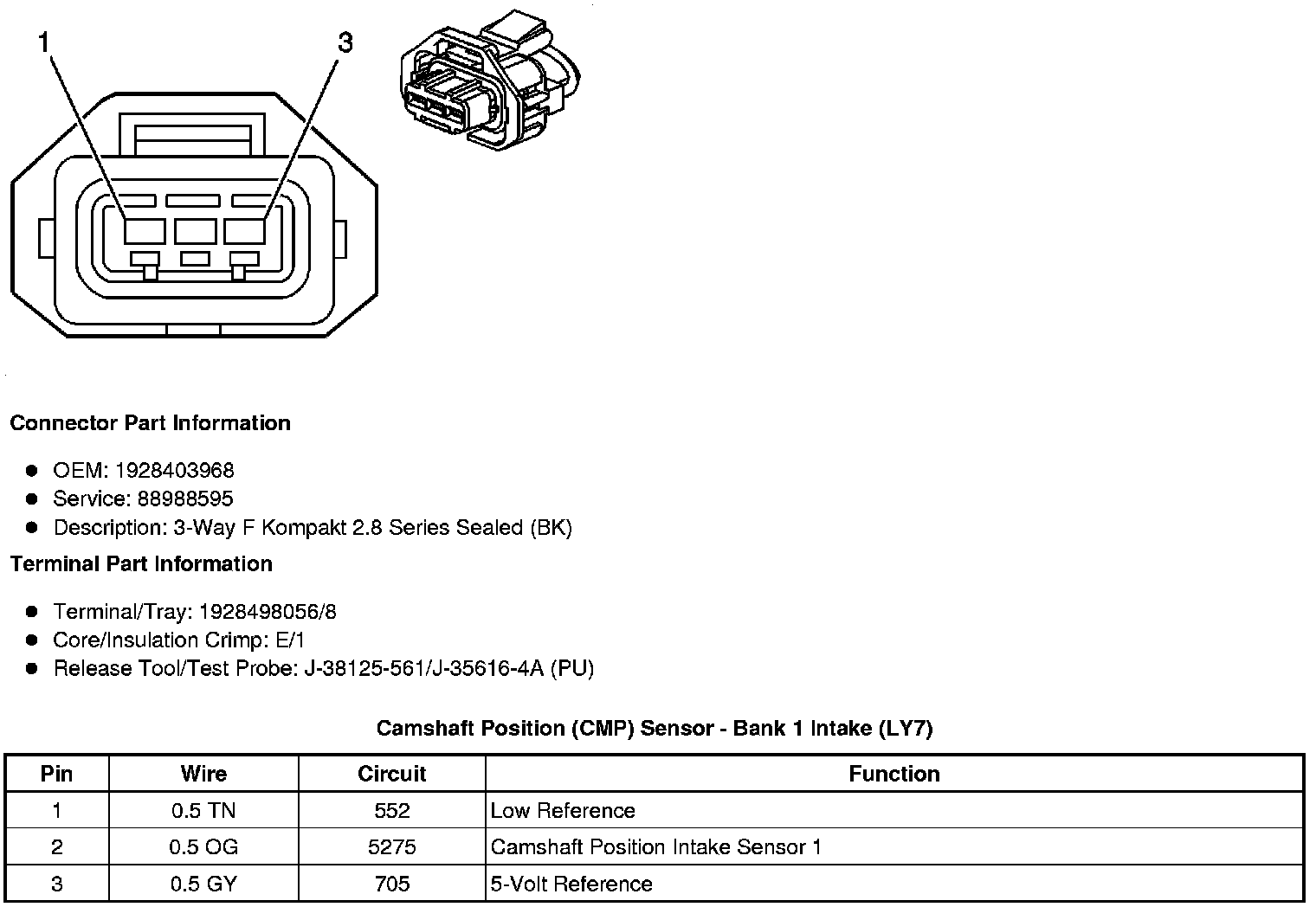

Camshaft Position (CMP) Sensor - Bank 1 Intake (LY7)

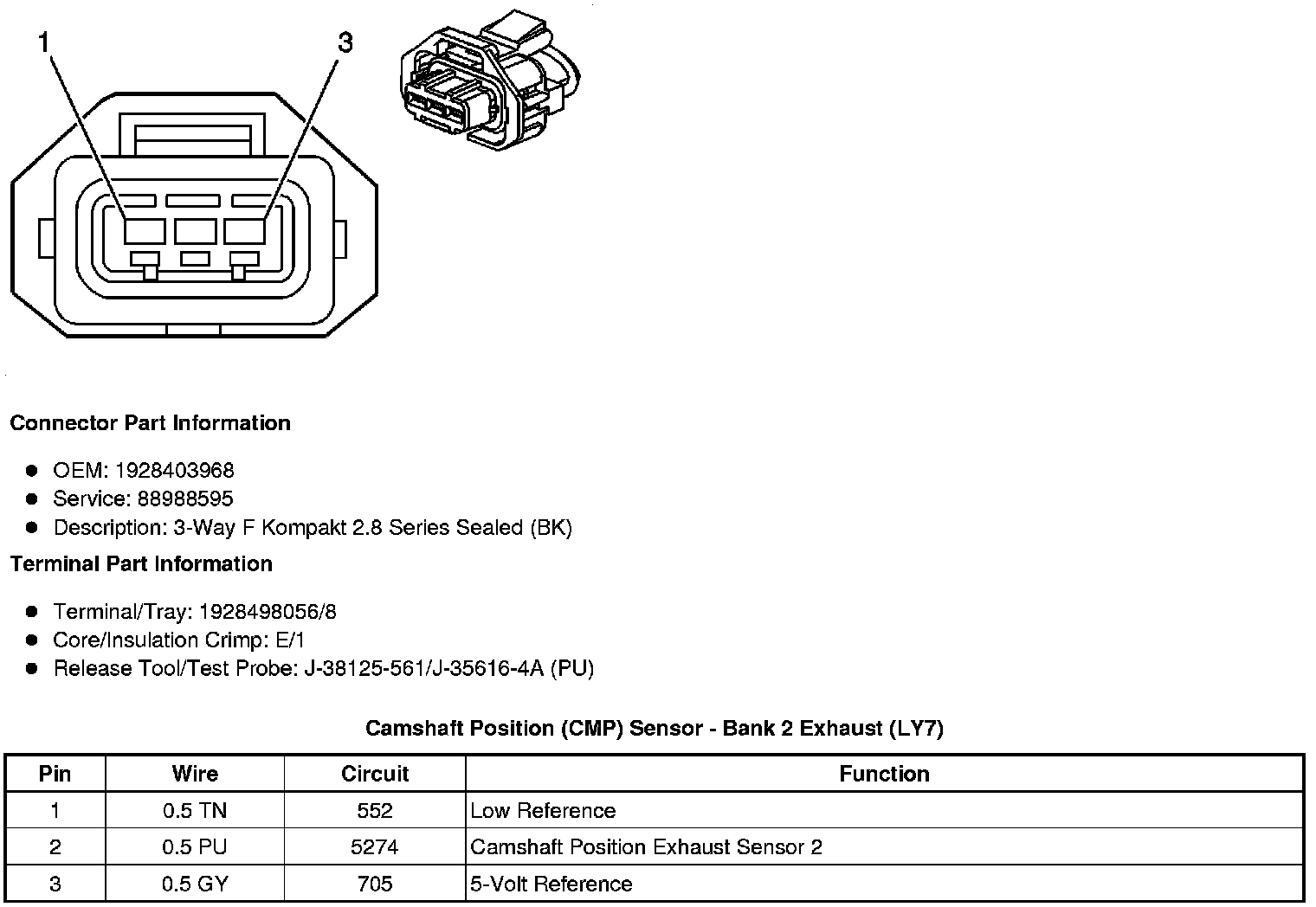

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LY7)






Camshaft Position (CMP) Sensor - Bank 2 Intake (LY7)
