Underhood Fuse Block




Electrical Center Identification Views

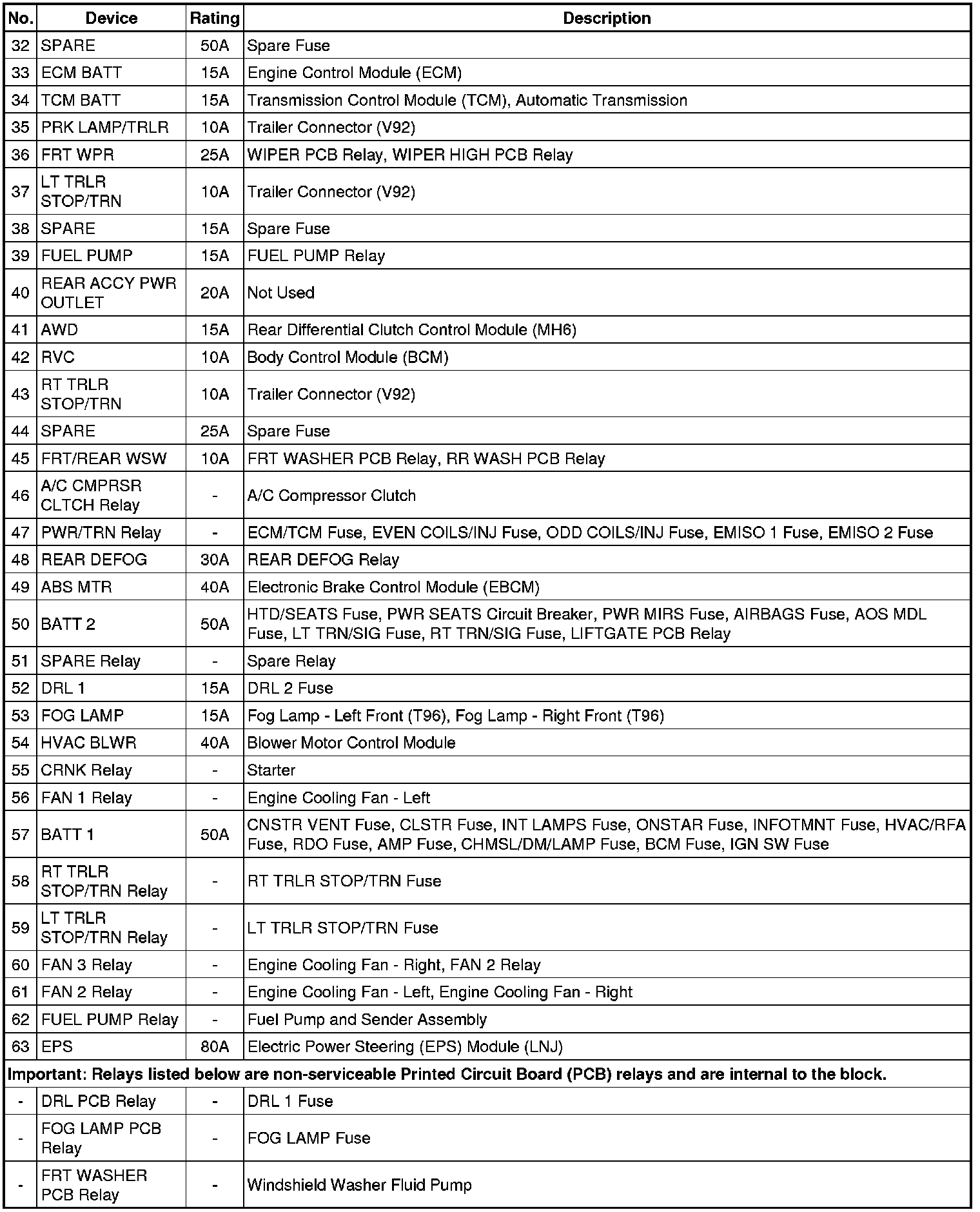

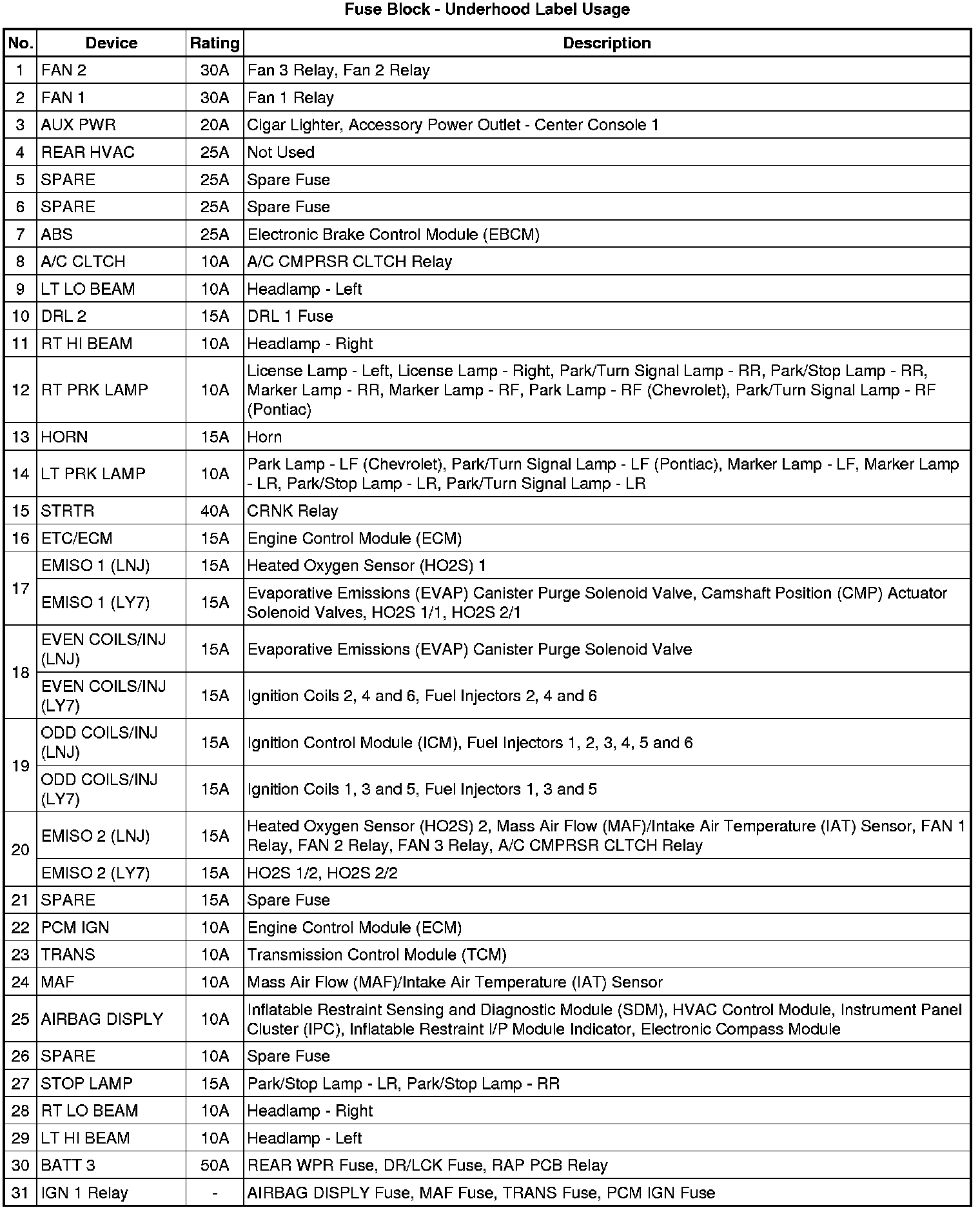

Fuse Block - Underhood Label

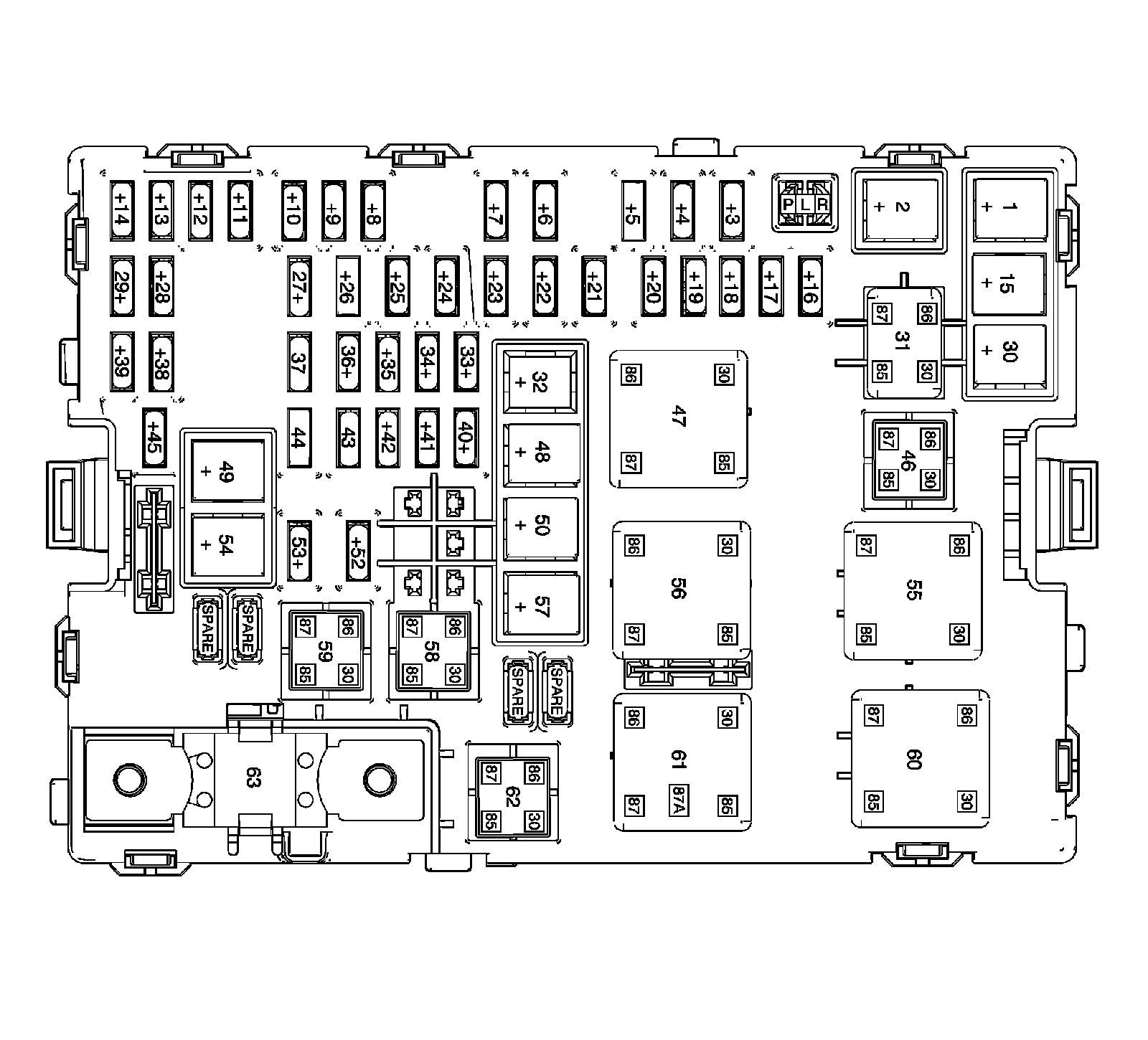

Fuse Block - Underhood Top View

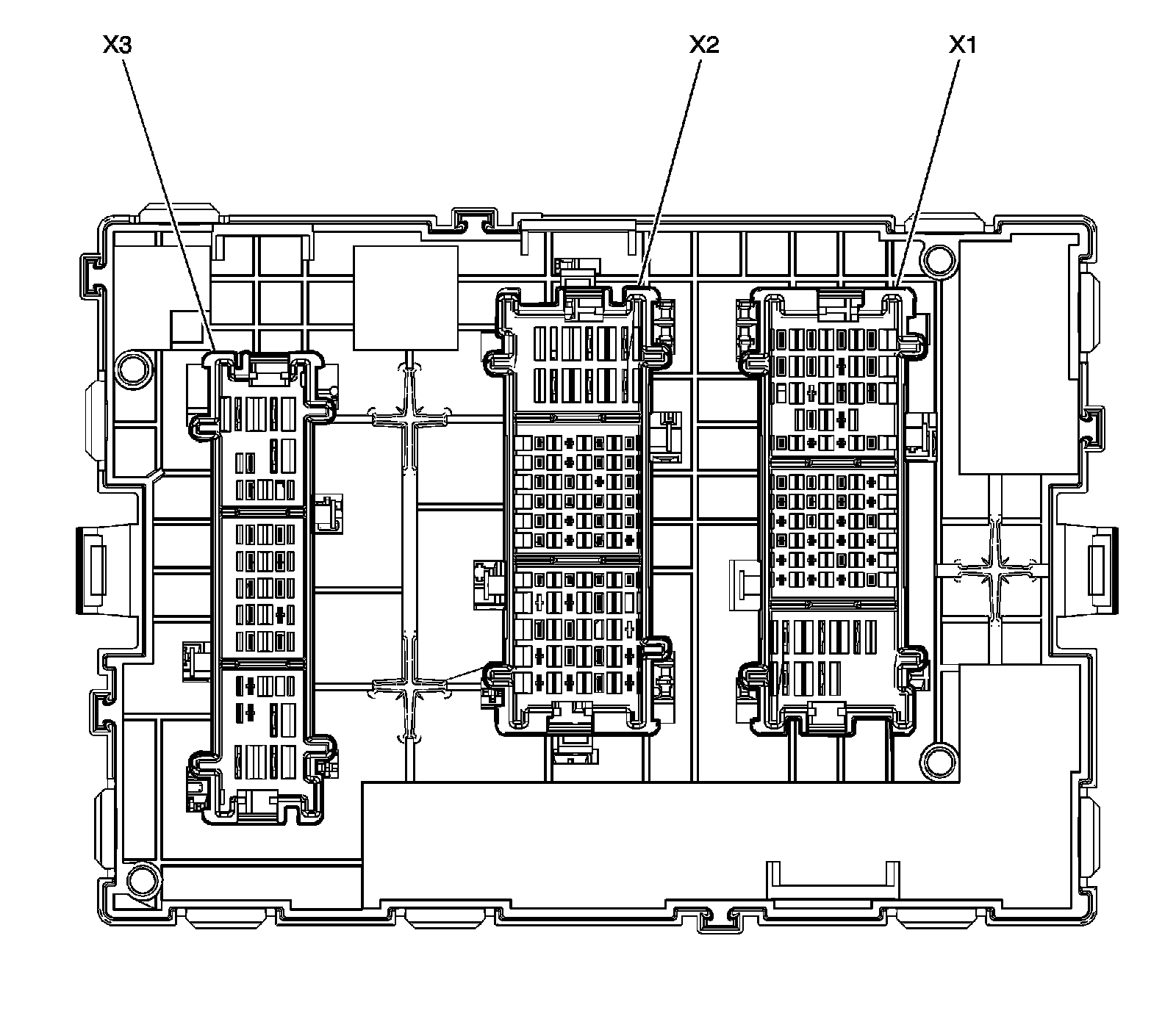

Fuse Block - Underhood Bottom View

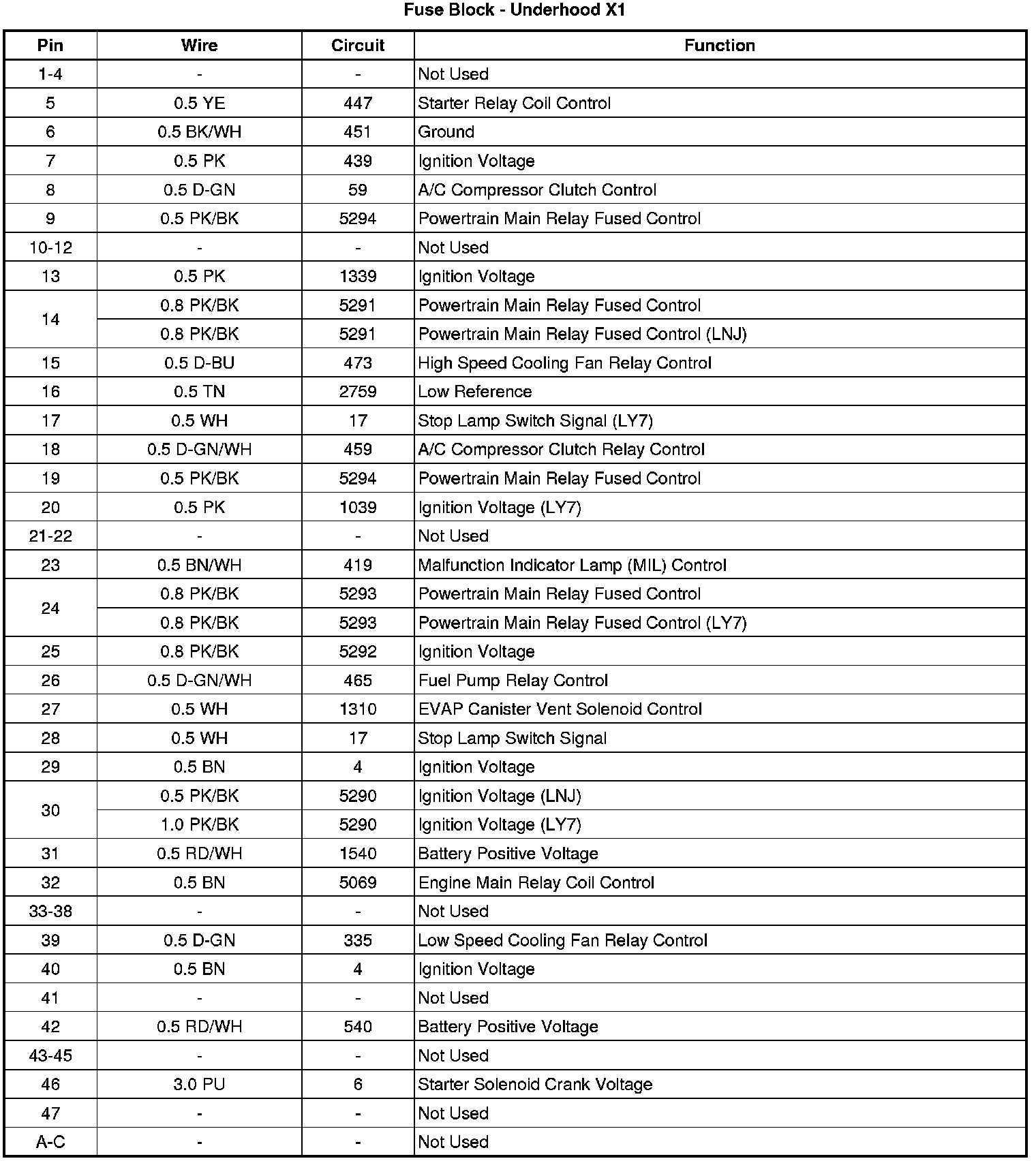

Fuse Block - Underhood X1

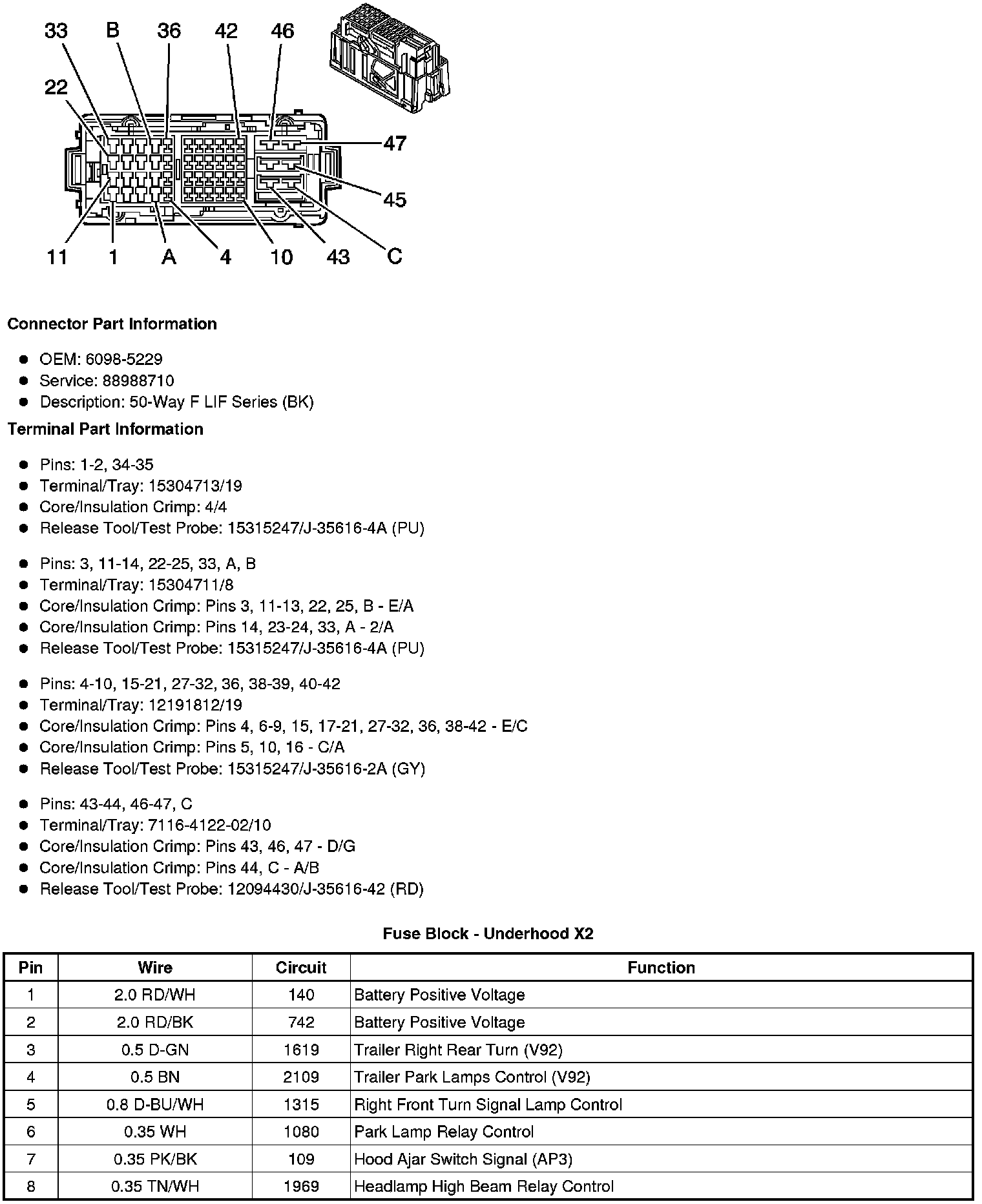

Fuse Block - Underhood X2

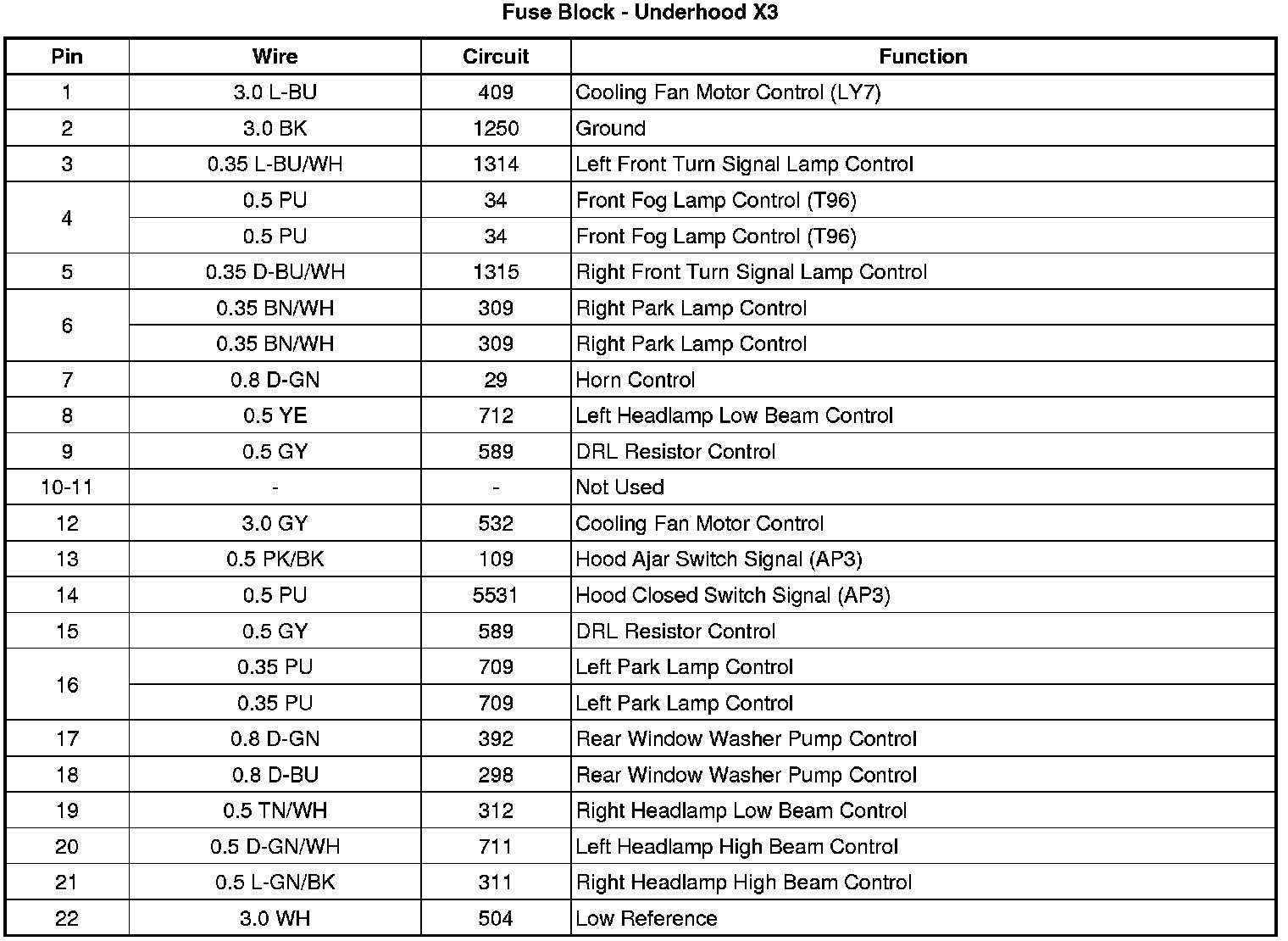

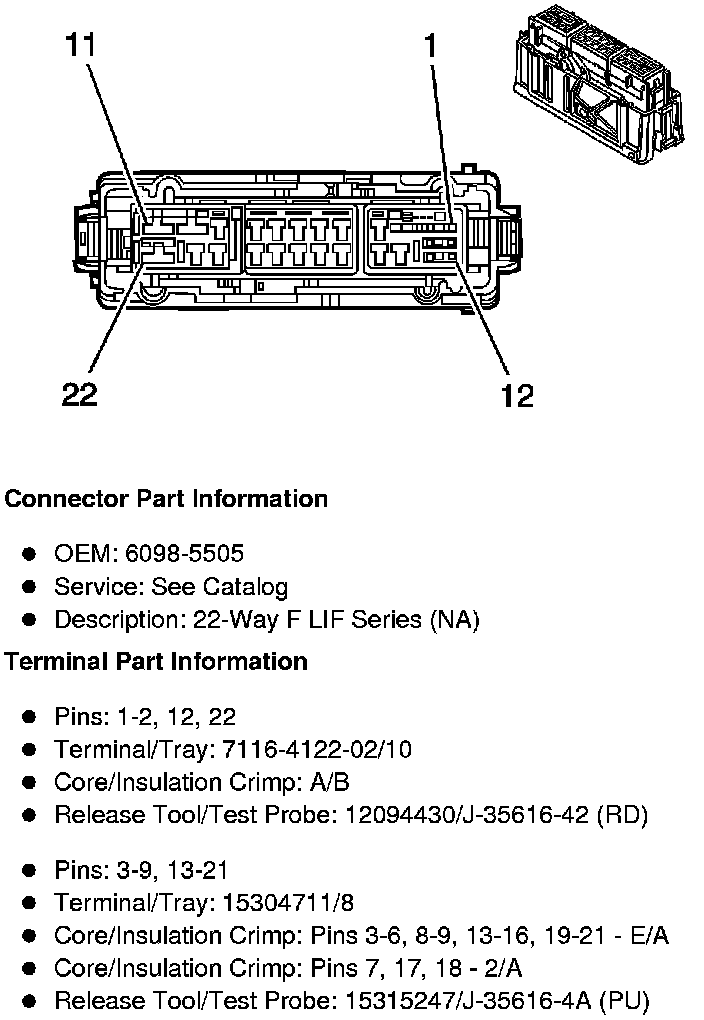

Fuse Block - Underhood X3

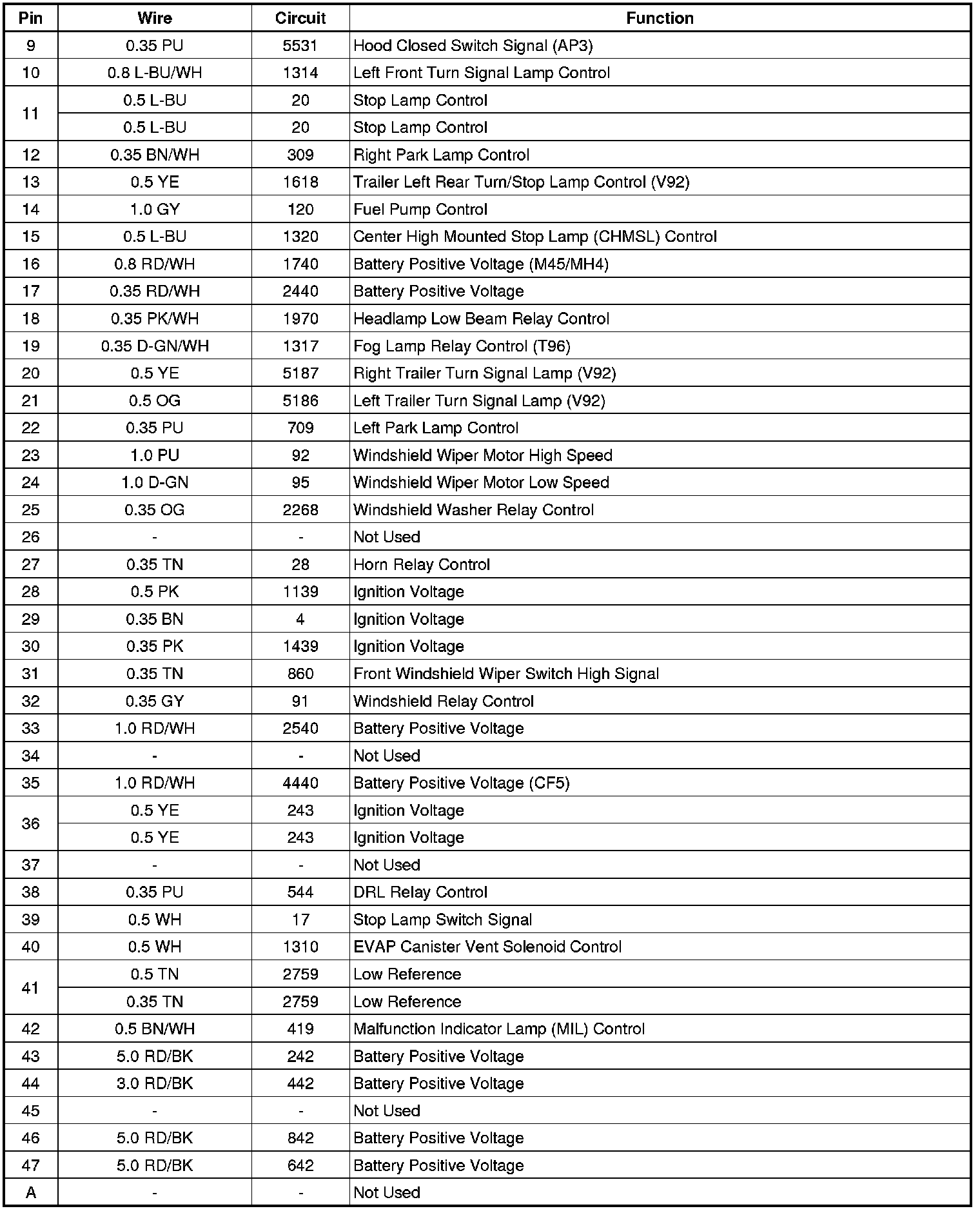

Fuse Block - Underhood X4
