Output Gear Assembly

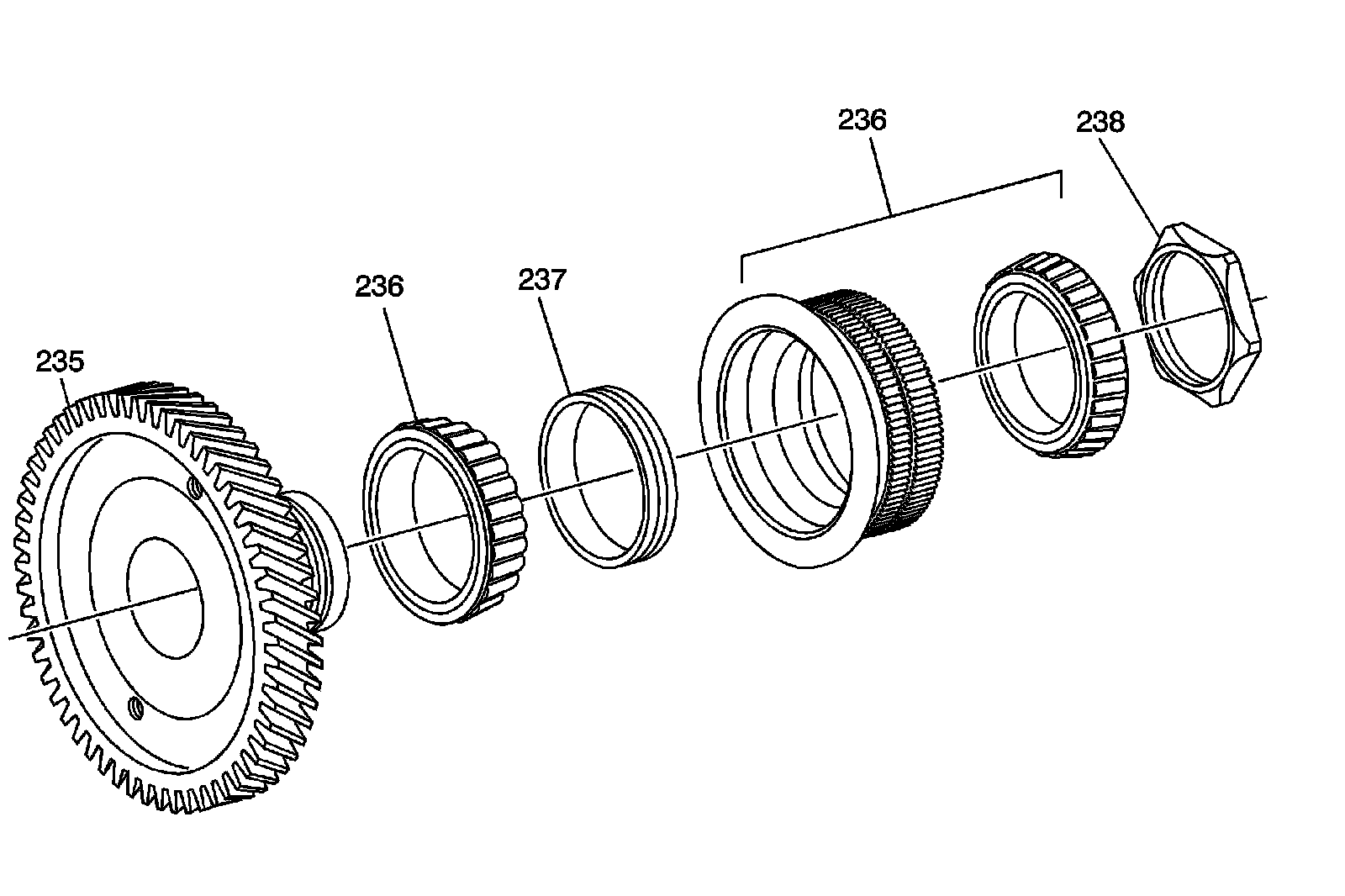

Disassembled Views

Output Gear Assembly




235 - Output Gear
236 - Output Gear Bearing Assembly
237 - Output Gear Bearing Assembly Spacer
238 - Output Gear Bearing Assembly Lock Nut
