System Diagram




Component Connector End Views

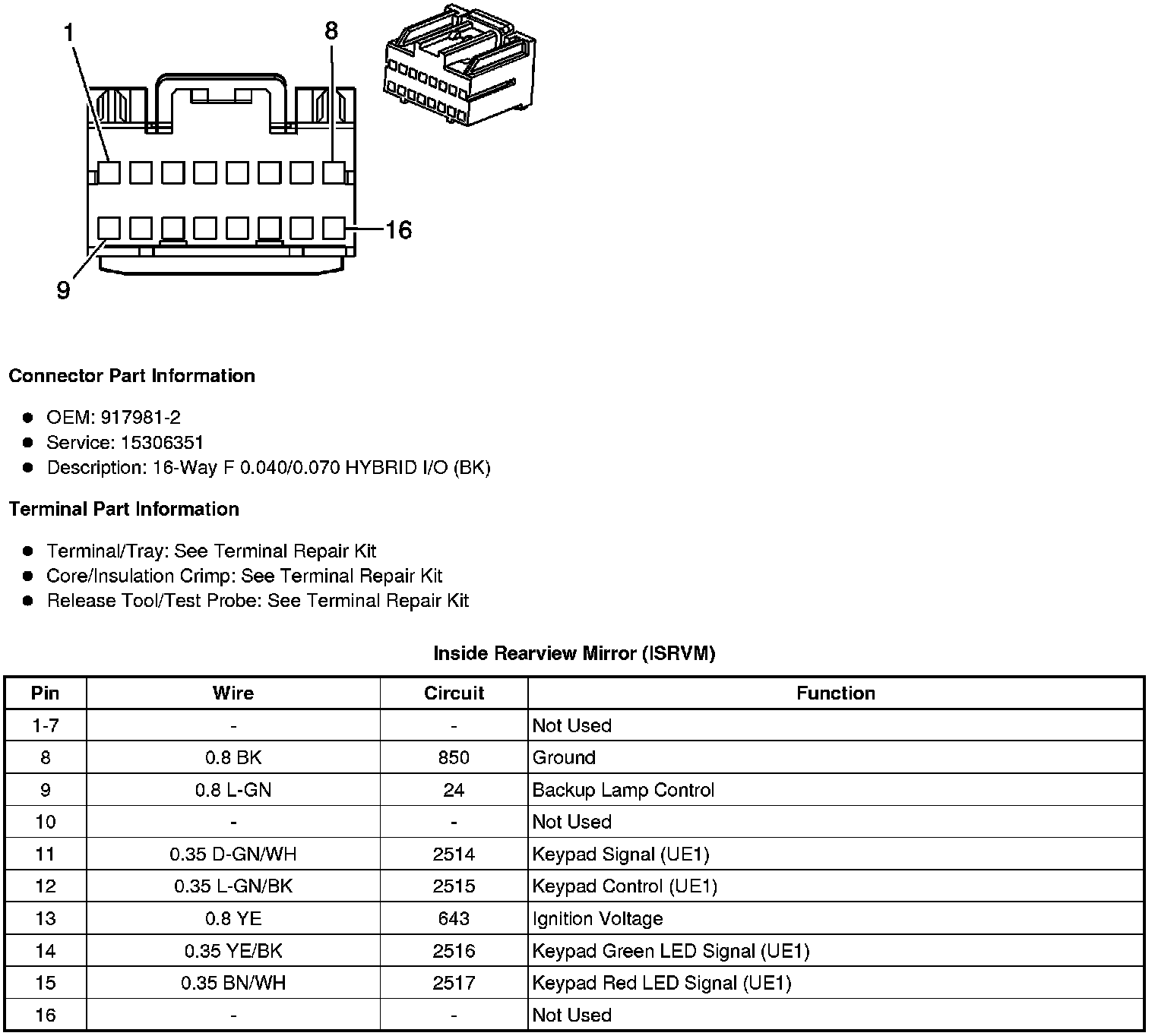

Inside Rearview Mirror (ISRVM)

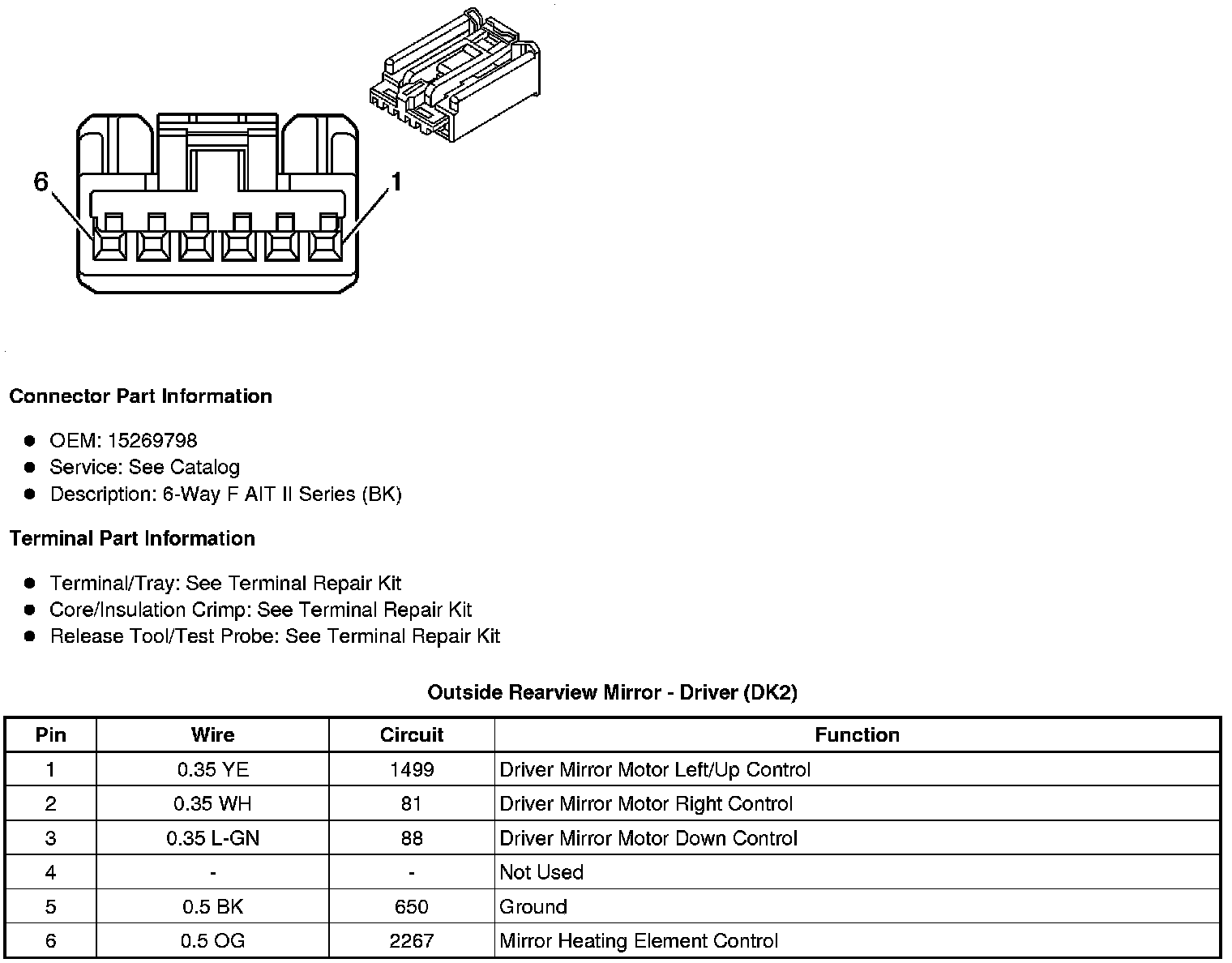

Outside Rearview Mirror - Driver (DK2)






Outside Rearview Mirror - Driver (without DK2)

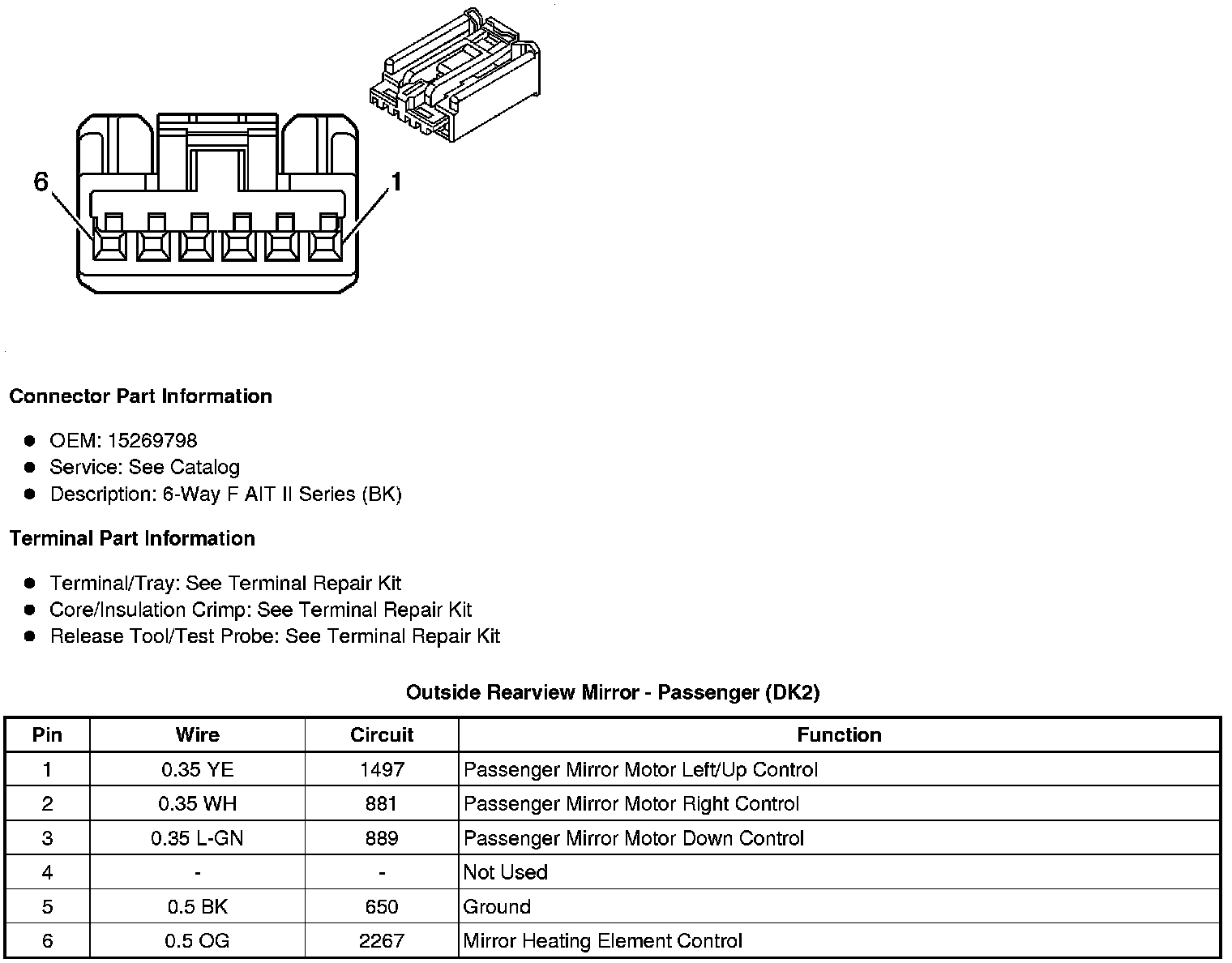

Outside Rearview Mirror - Passenger (DK2)






Outside Rearview Mirror - Passenger (without DK2)
