Home >> Pontiac >> 2009 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Latch

Front Door Latch




Component Connector End Views

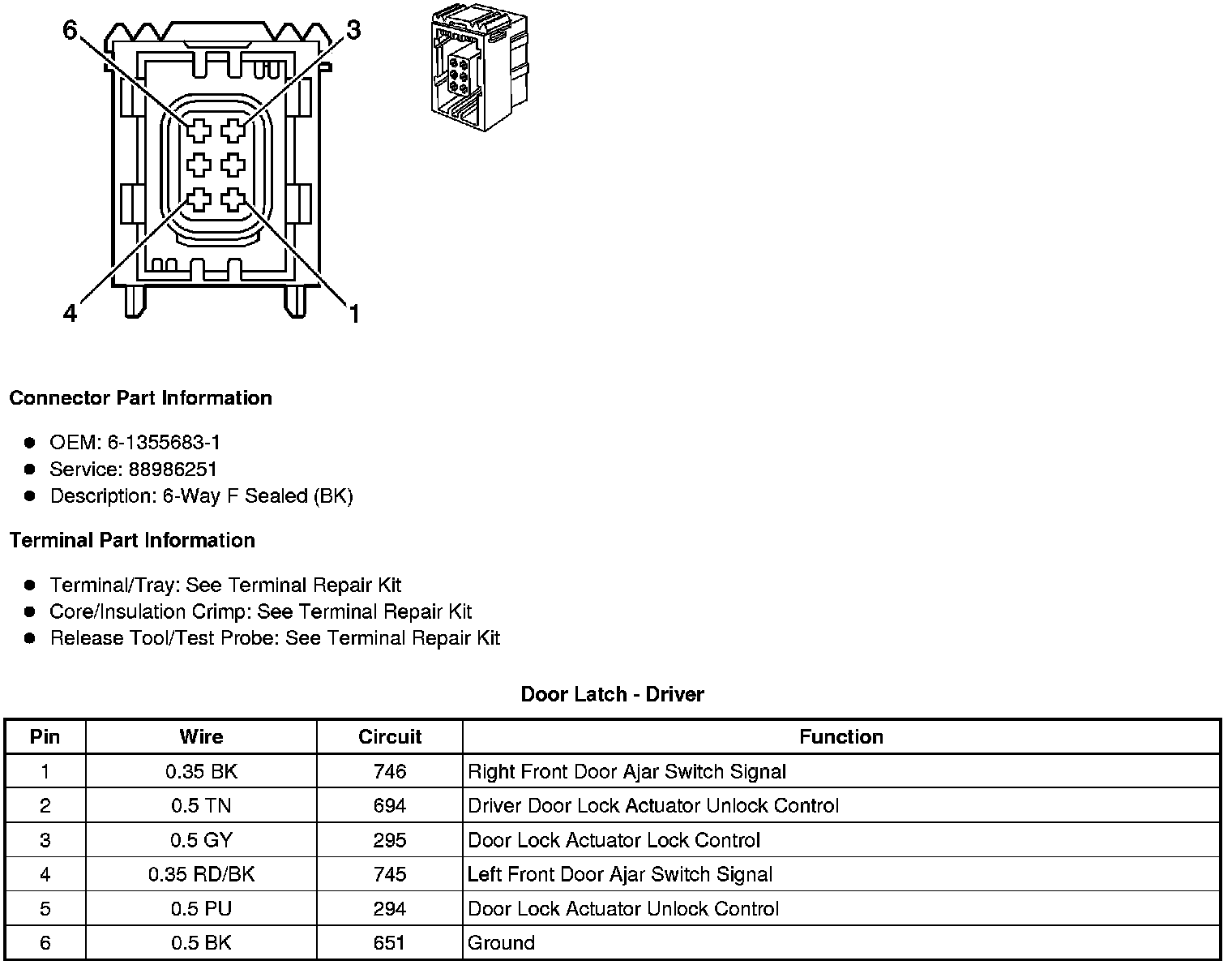

Door Latch - Driver

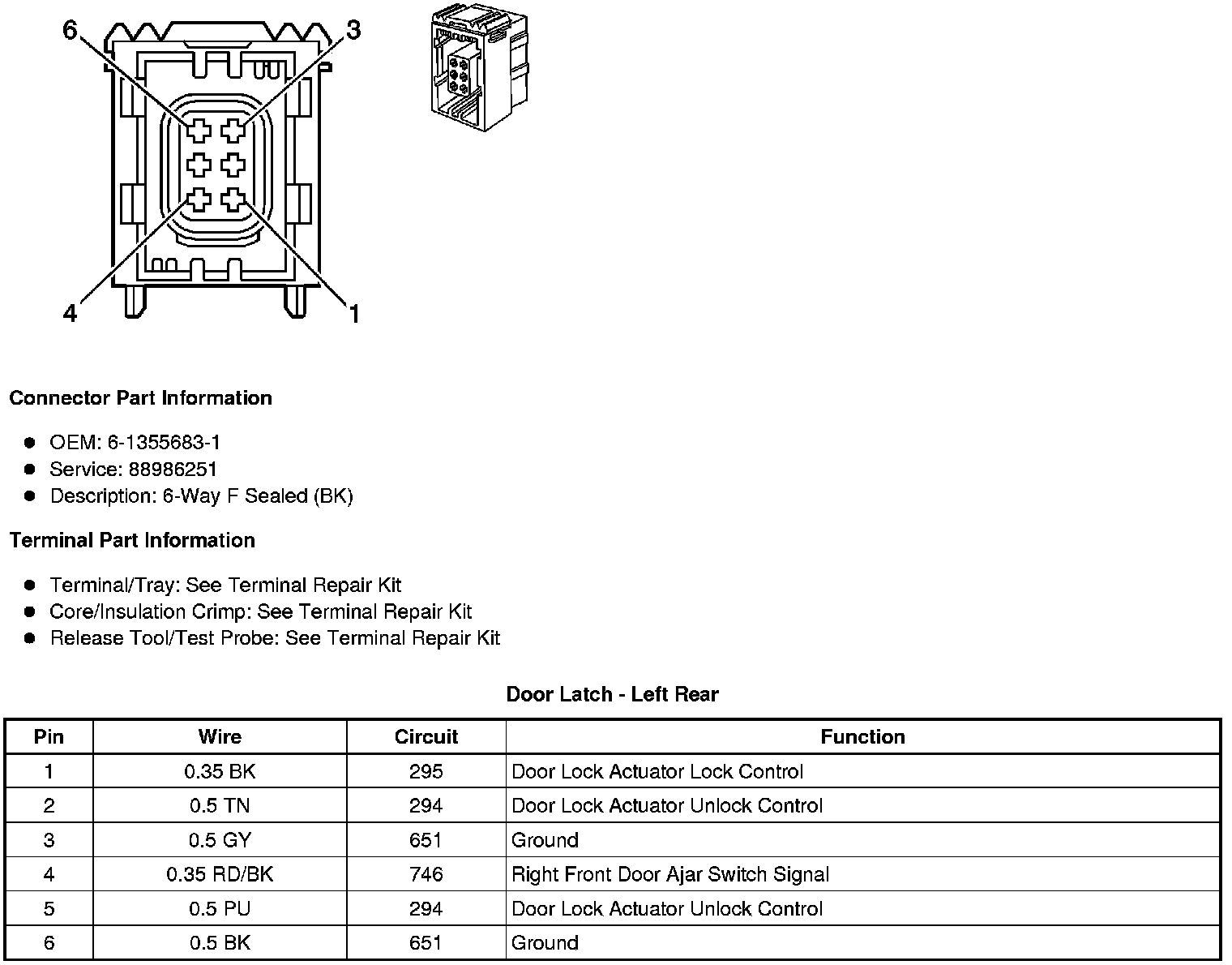

Door Latch - Left Rear

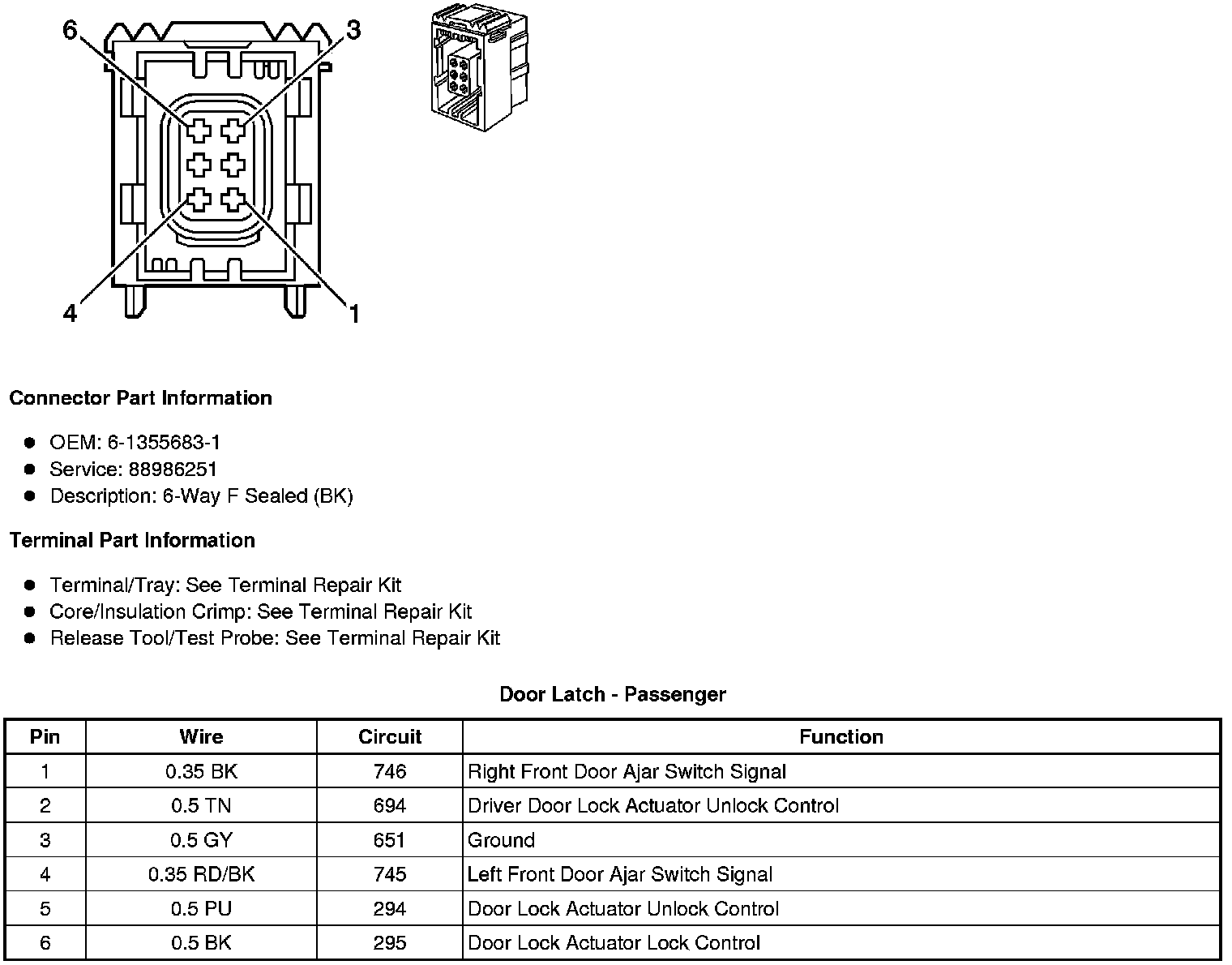

Door Latch - Passenger

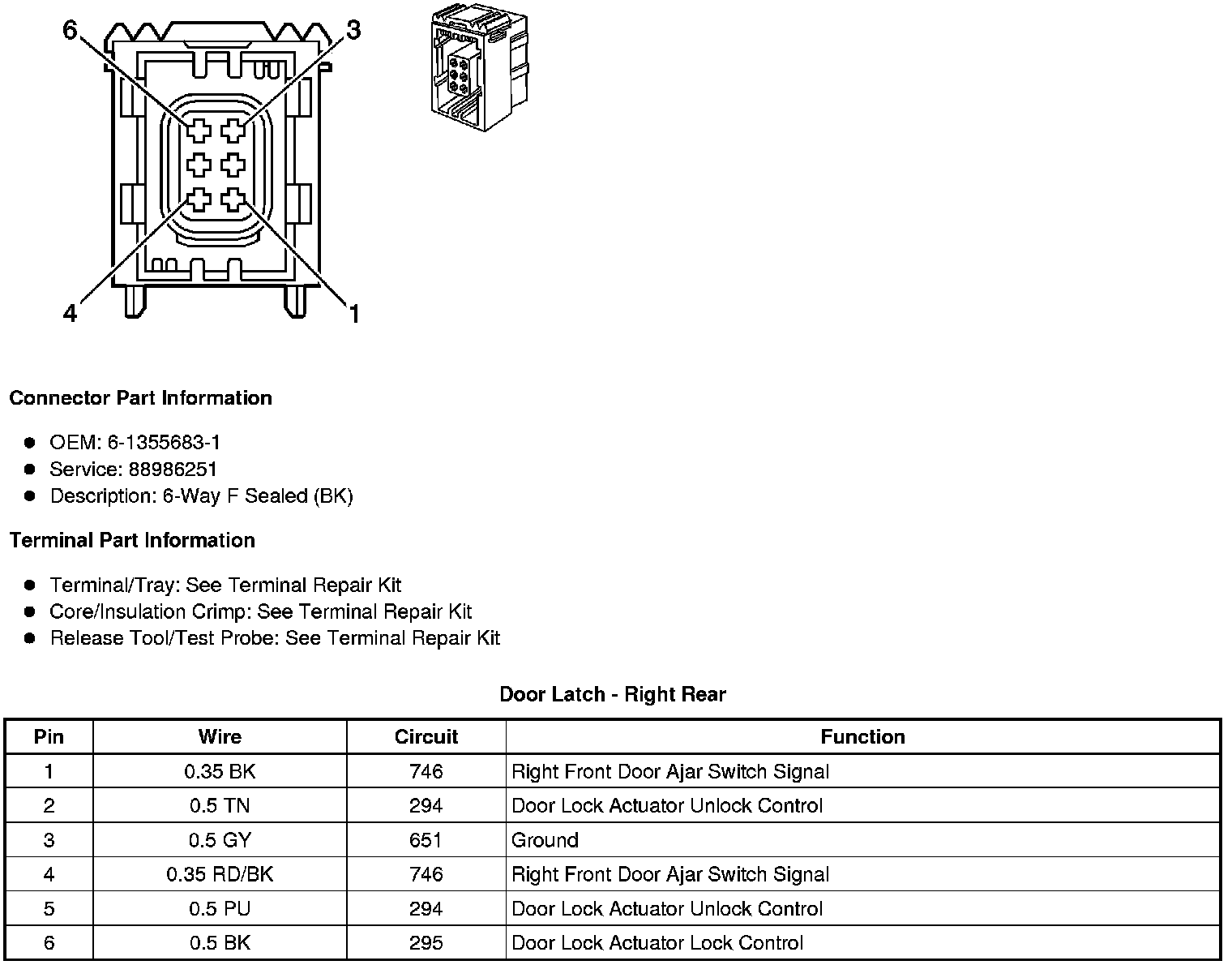

Door Latch - Right Rear
