Pontiac
>>
2009
>>
Torrent AWD V6-3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
EGR Valve
EGR Valve

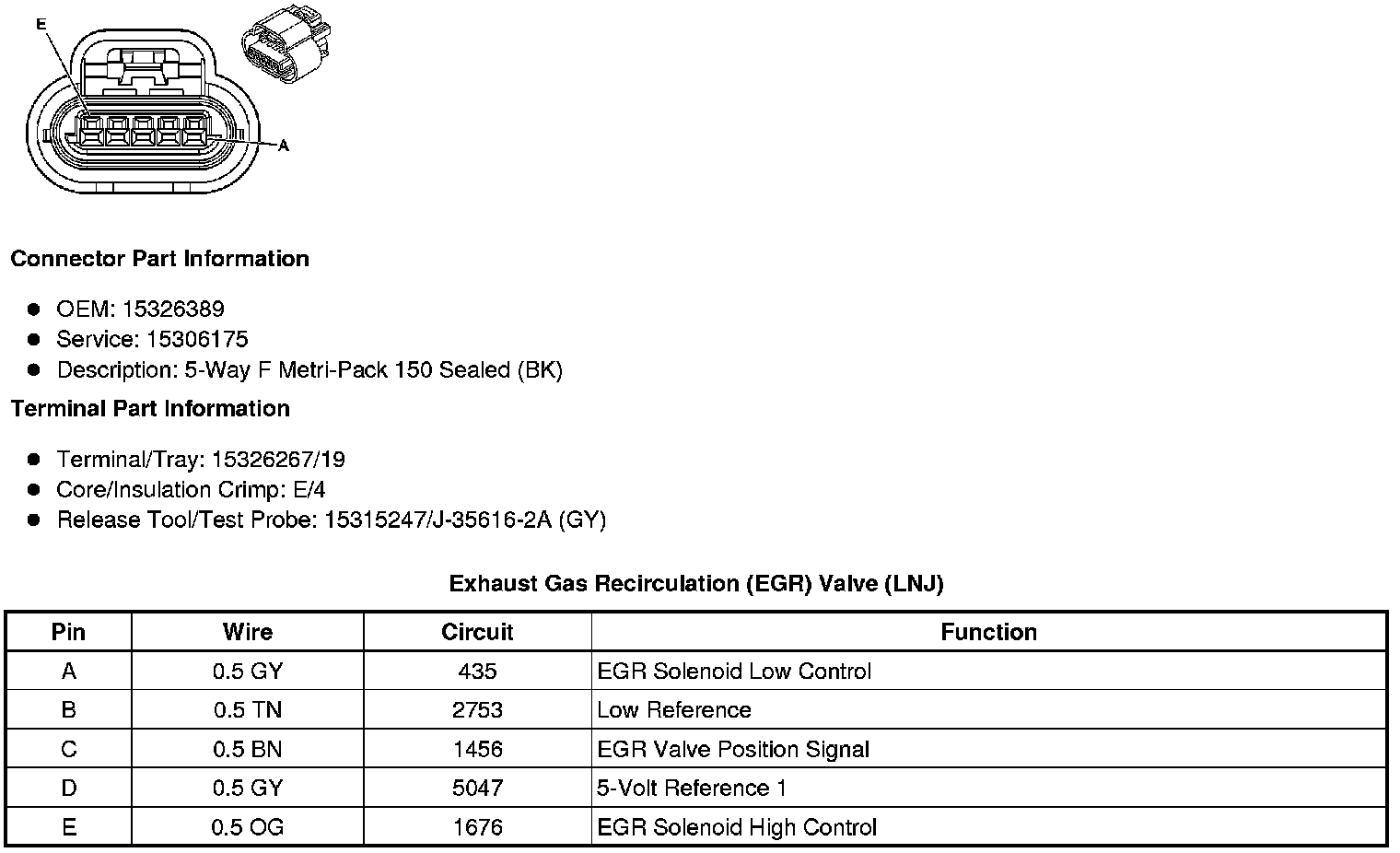

Component Connector End Views
Exhaust Gas Recirculation (EGR) Valve (LNJ)
