Home >> Pontiac >> 2009 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp

Backup Lamp




Component Connector End Views

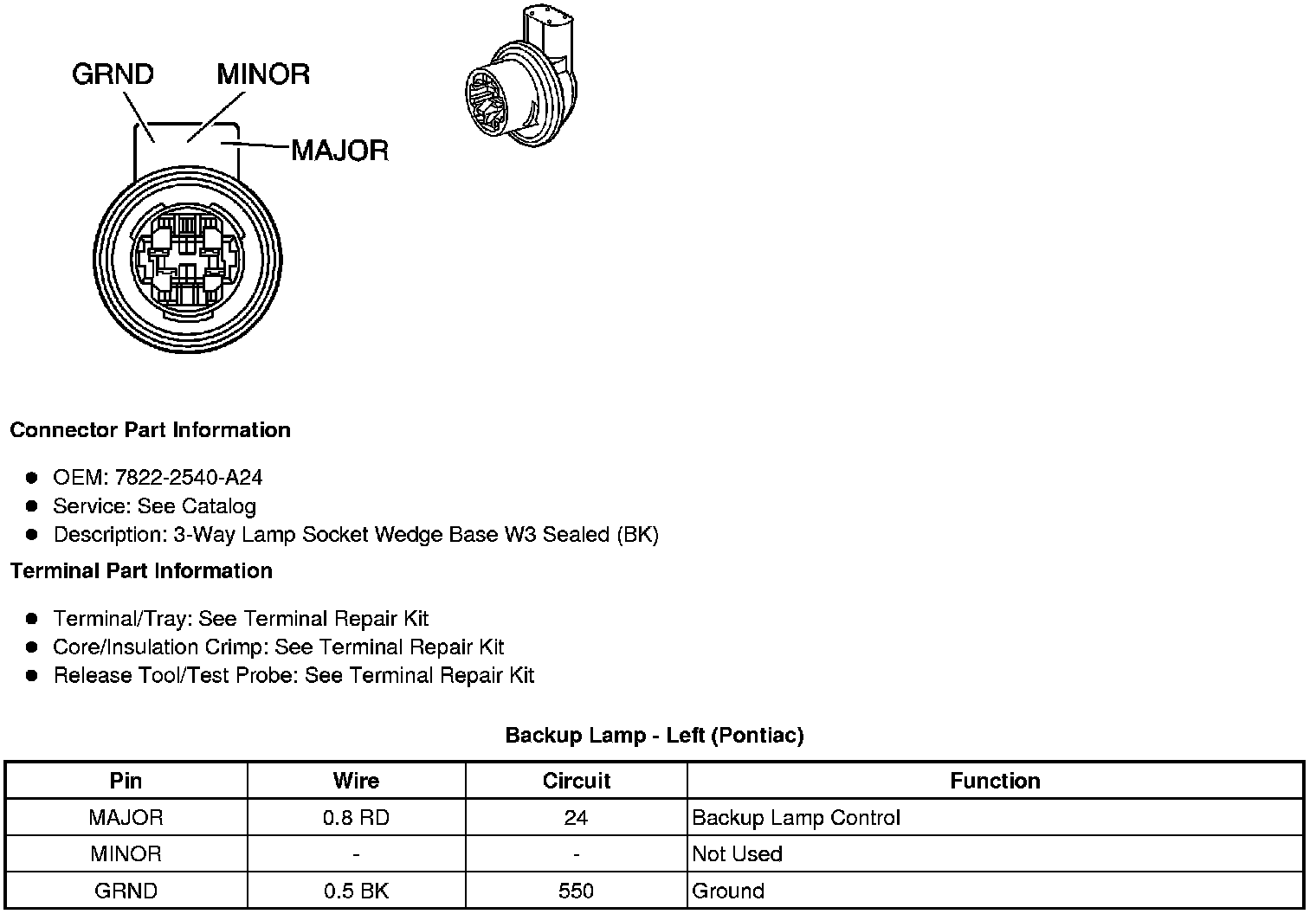

Backup Lamp - Left (Pontiac)






Backup Lamp - Right (Pontiac)
