Central Control Module




Component Connector End Views

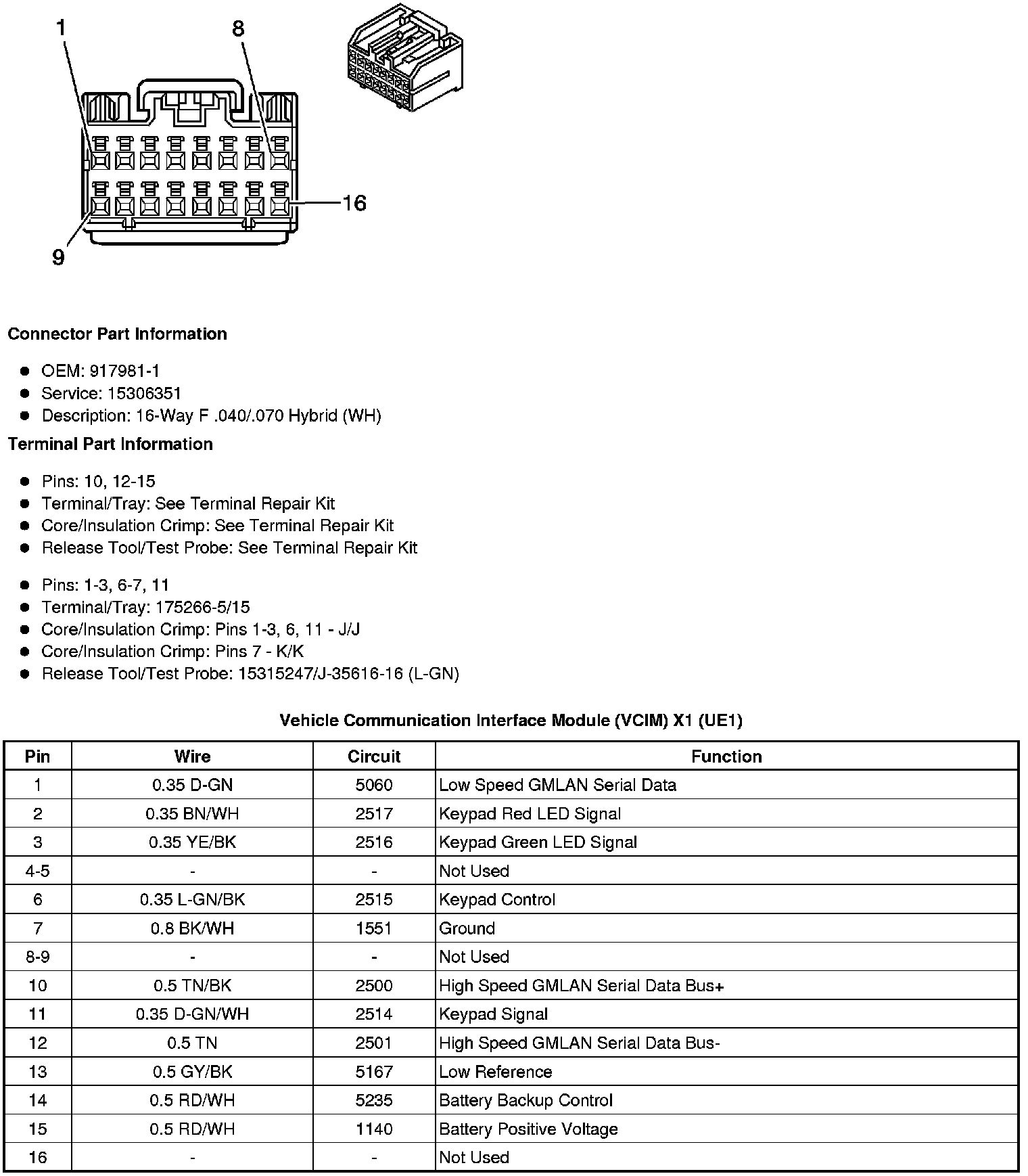

Vehicle Communication Interface Module (VCIM) X1 (UE1)

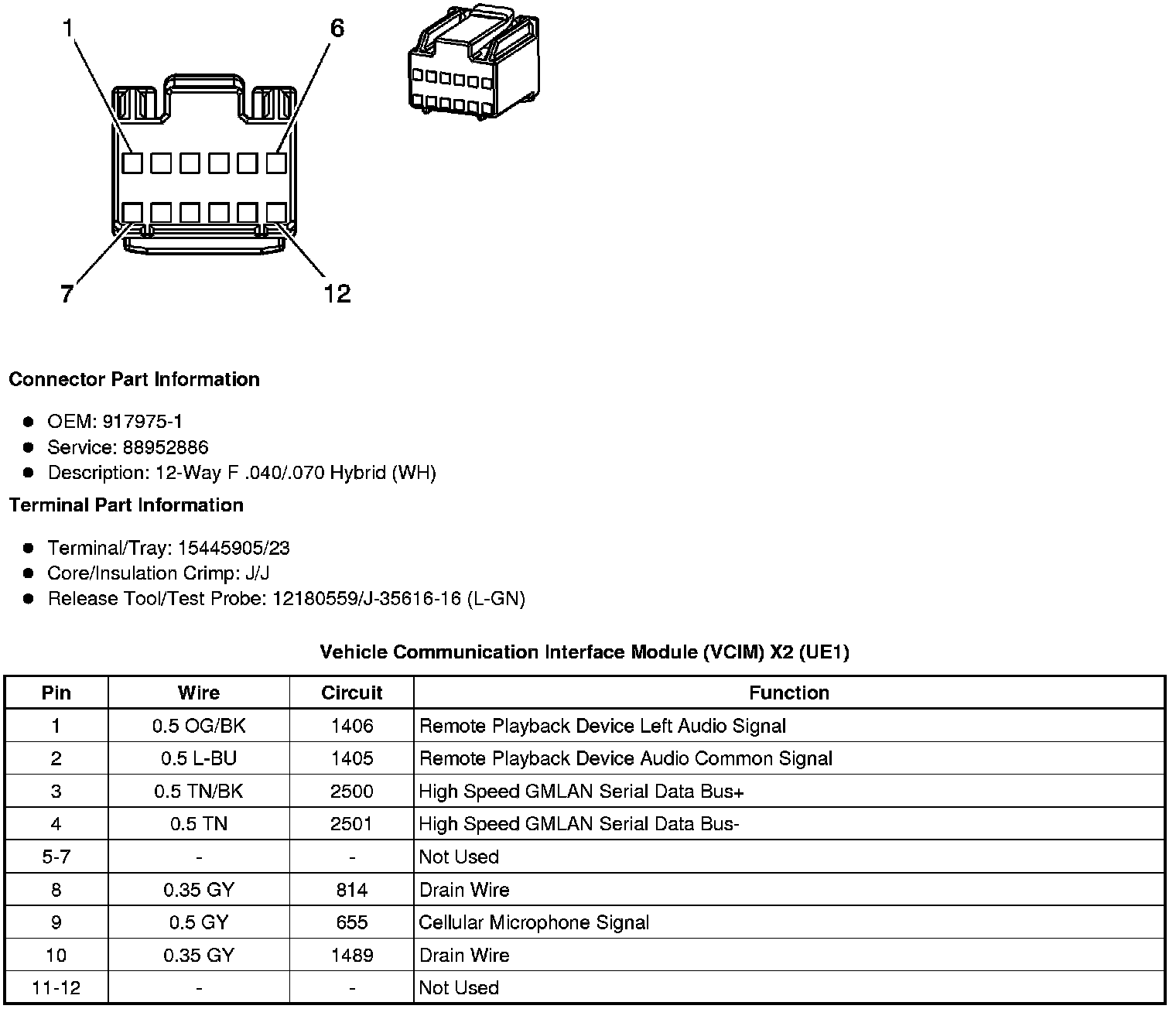

Vehicle Communication Interface Module (VCIM) X2 (UE1)

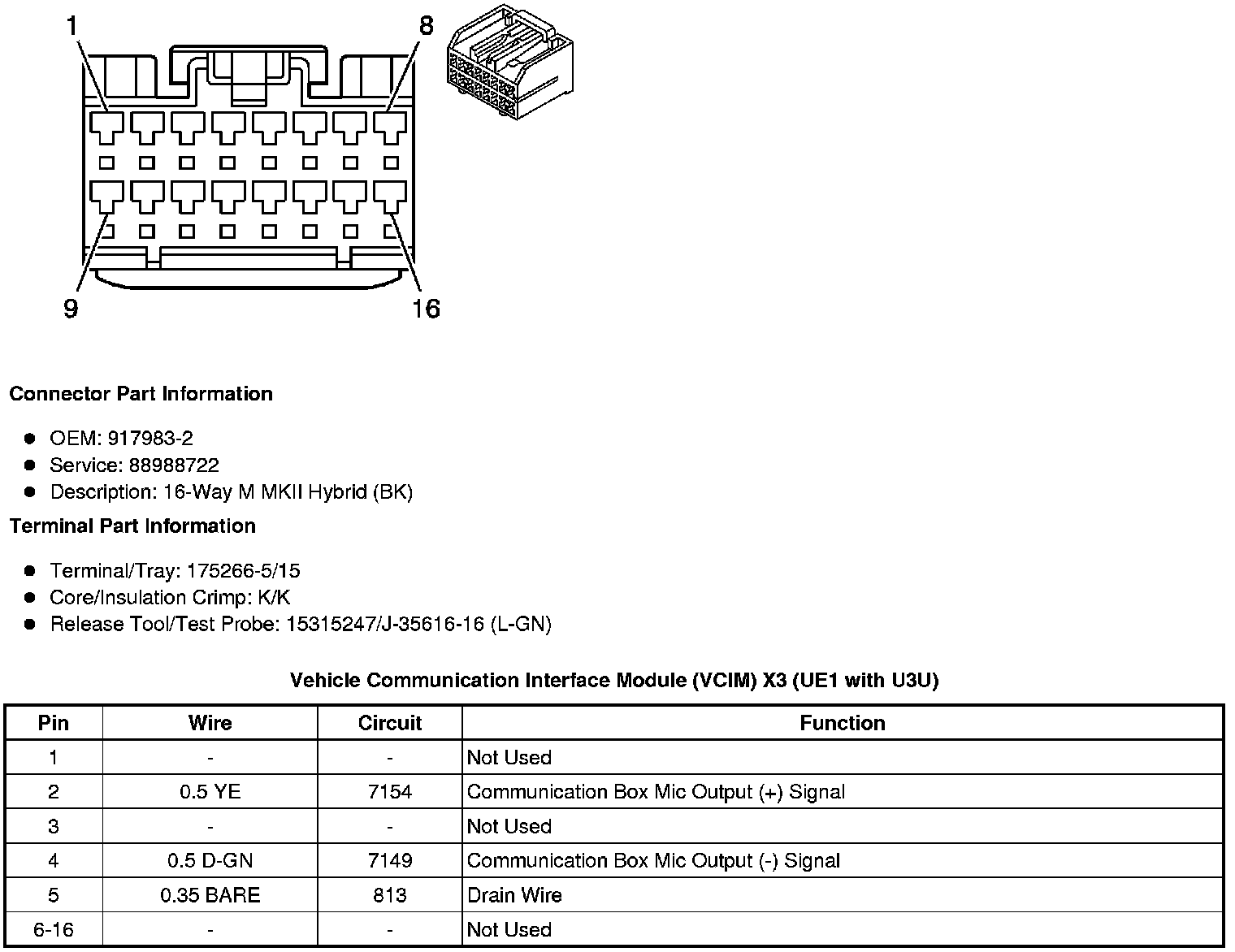

Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3U)






Vehicle Communication Interface Module (VCIM) Battery (UE1)
