Inflatable Restraint Steering Wheel Module
Component Connector End Views

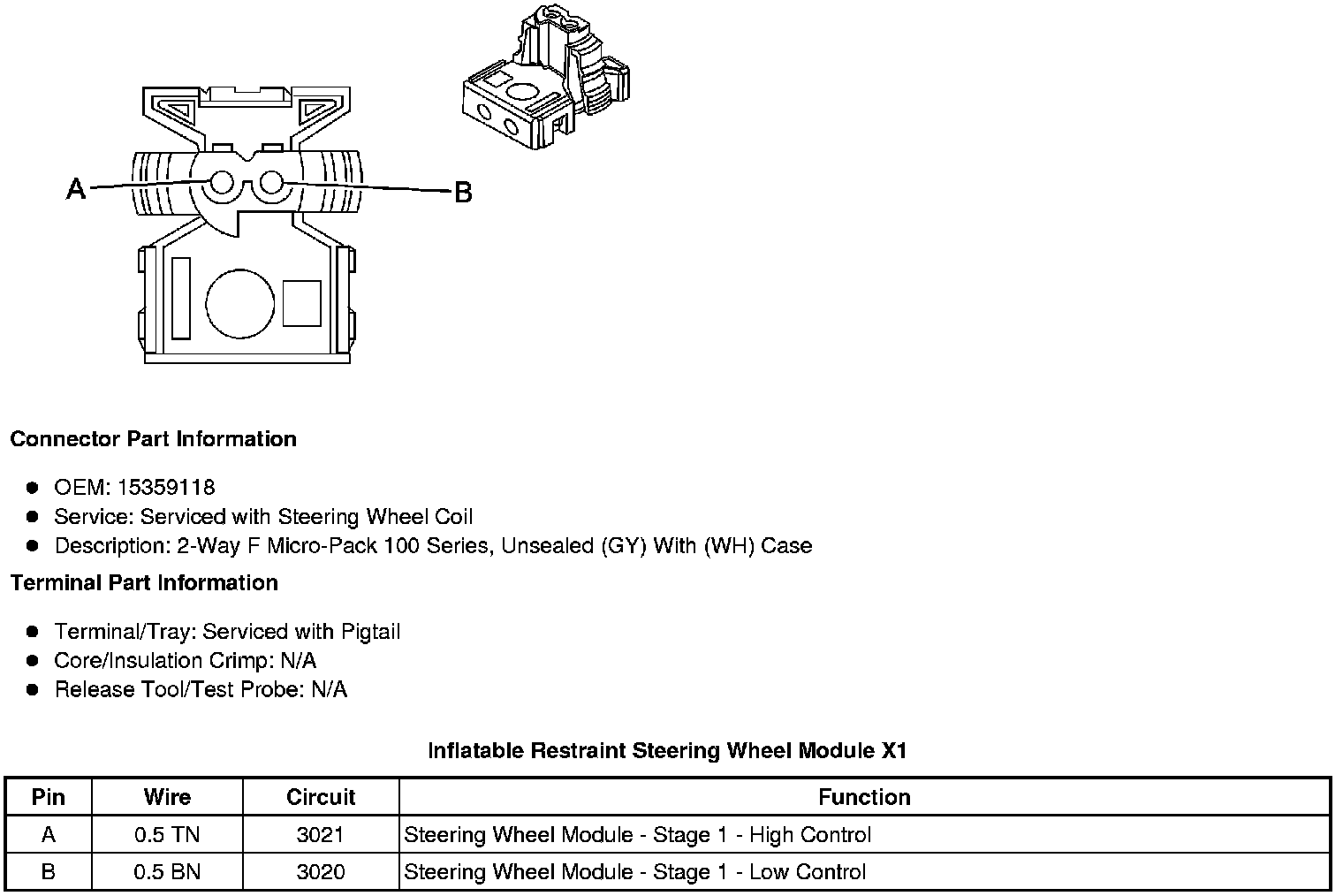

Inflatable Restraint Steering Wheel Module X1

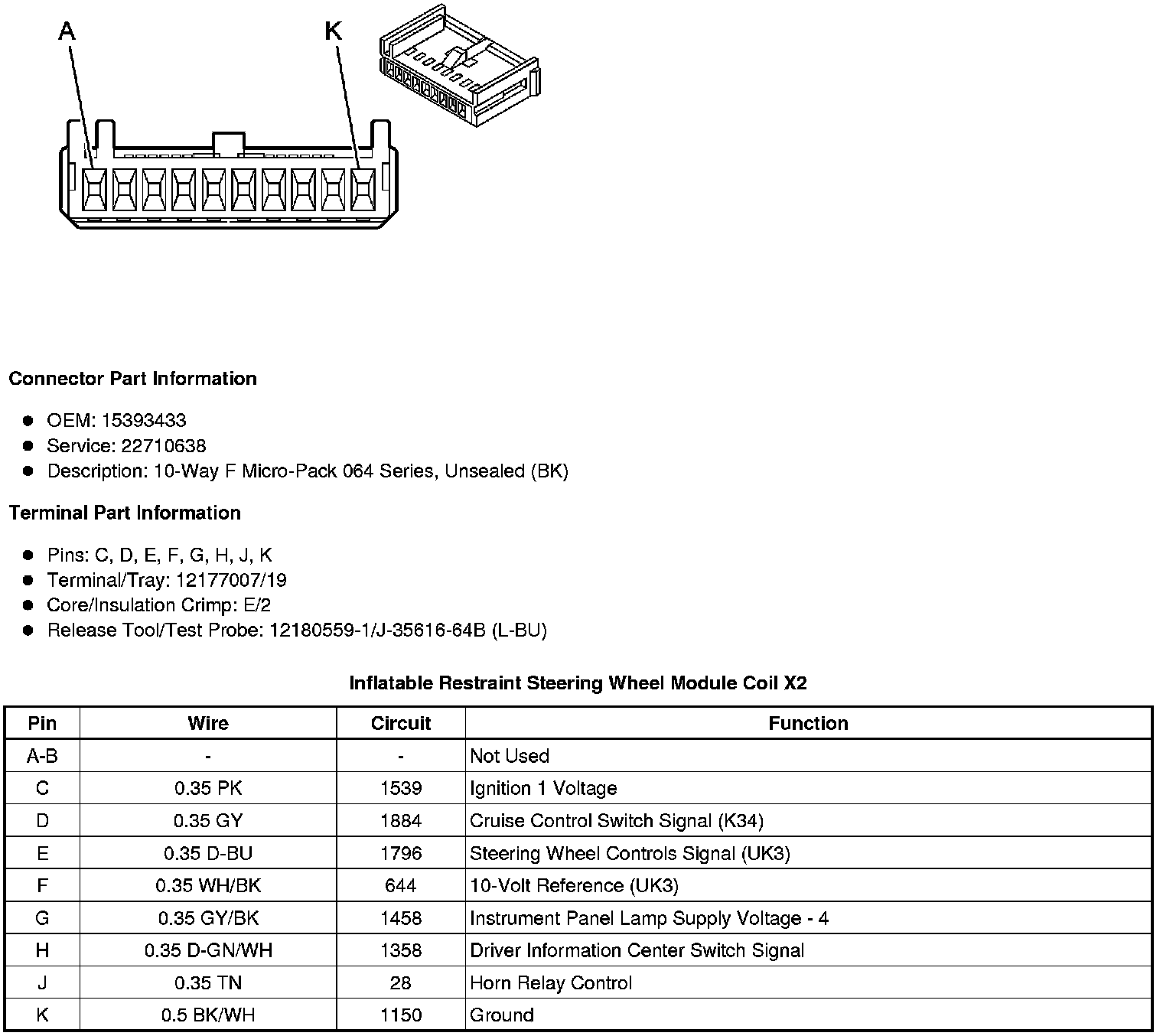

Inflatable Restraint Steering Wheel Module Coil X2

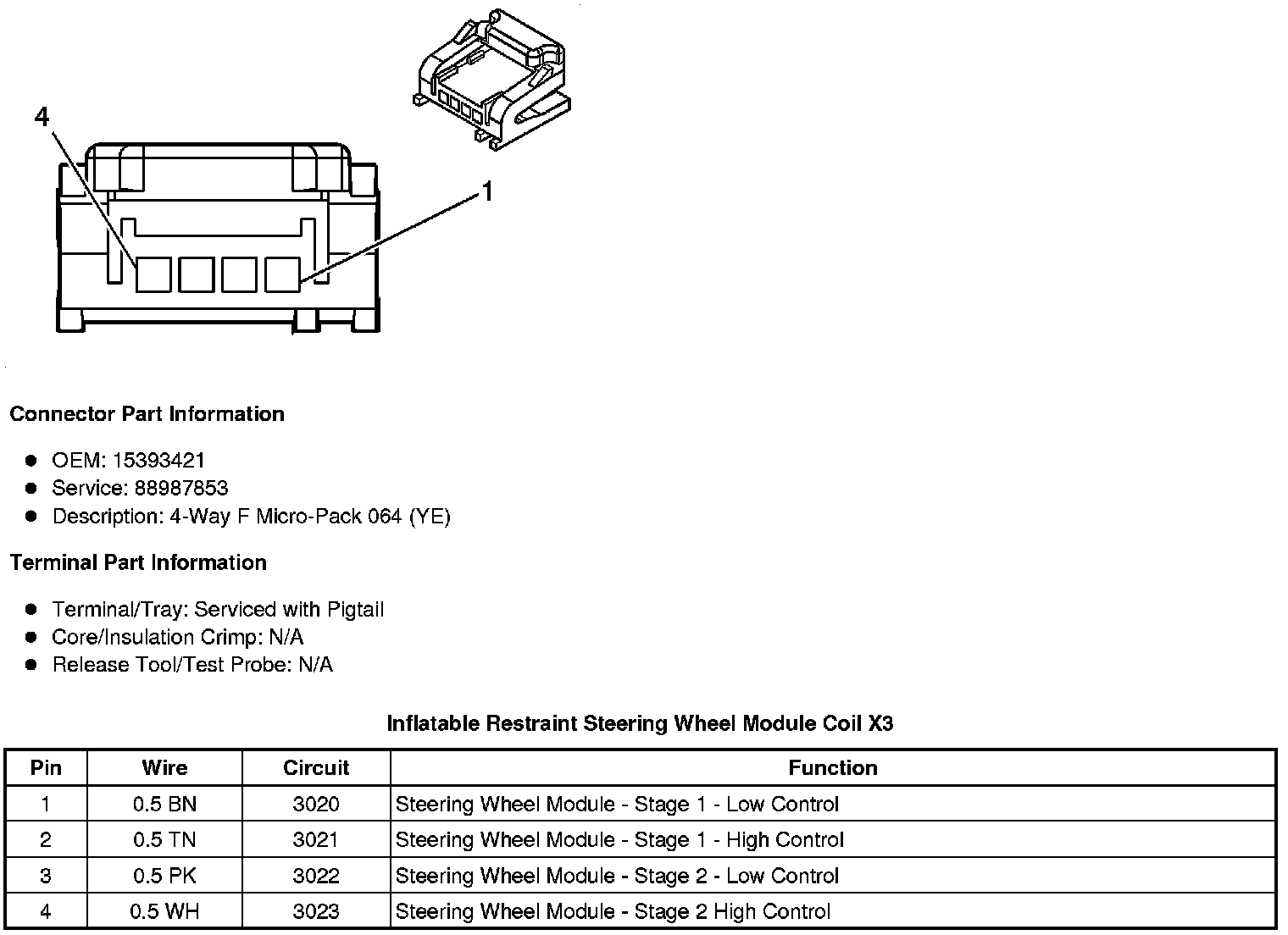

Inflatable Restraint Steering Wheel Module Coil X3
Component Connector End Views
Inflatable Restraint Steering Wheel Module X1
Inflatable Restraint Steering Wheel Module Coil X2
Inflatable Restraint Steering Wheel Module Coil X3
