Rear Fuse Block




Electrical Center Identification Views

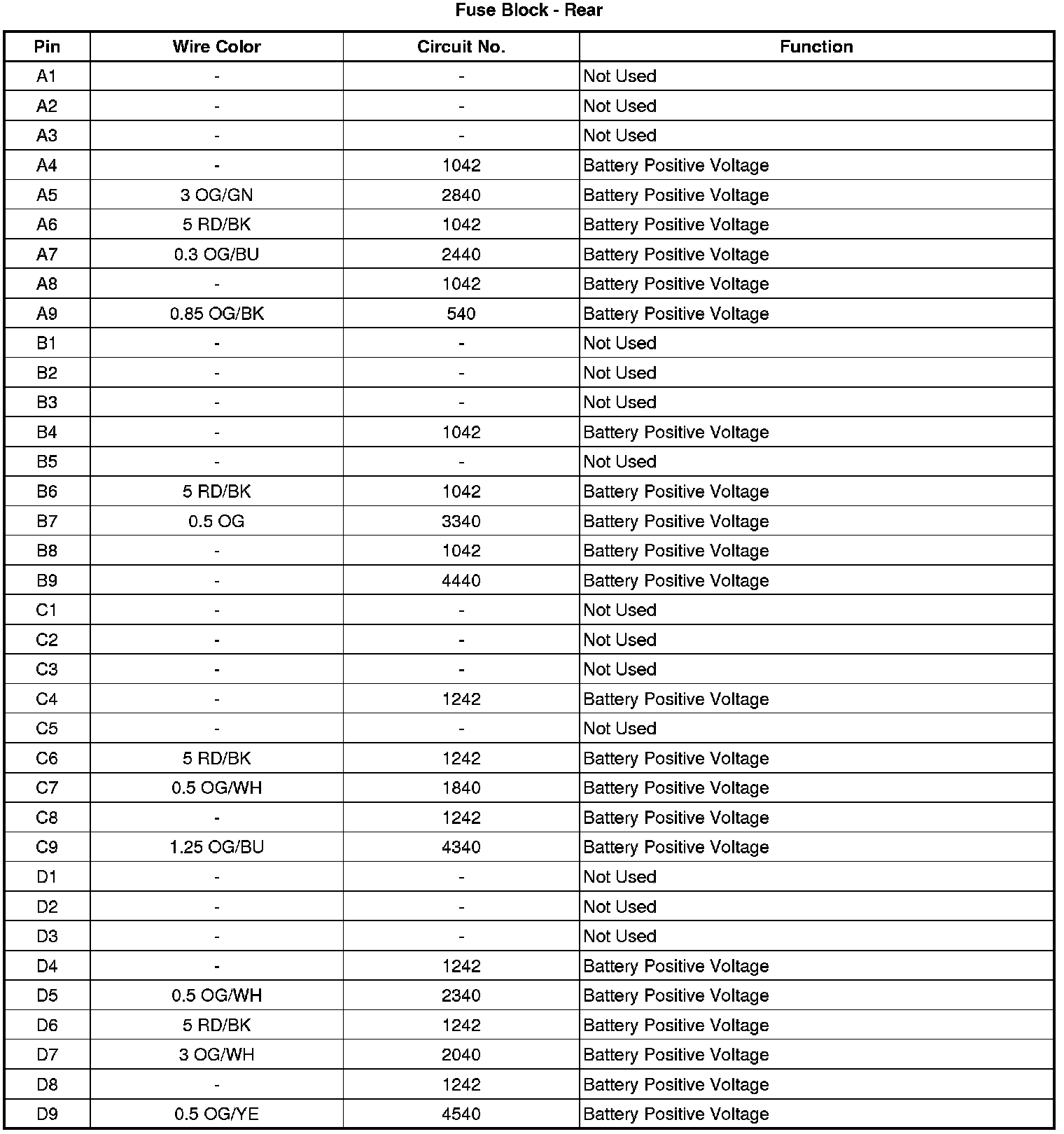

Fuse Block - Rear










Fuse Block - Rear
