I/P Fuse Block

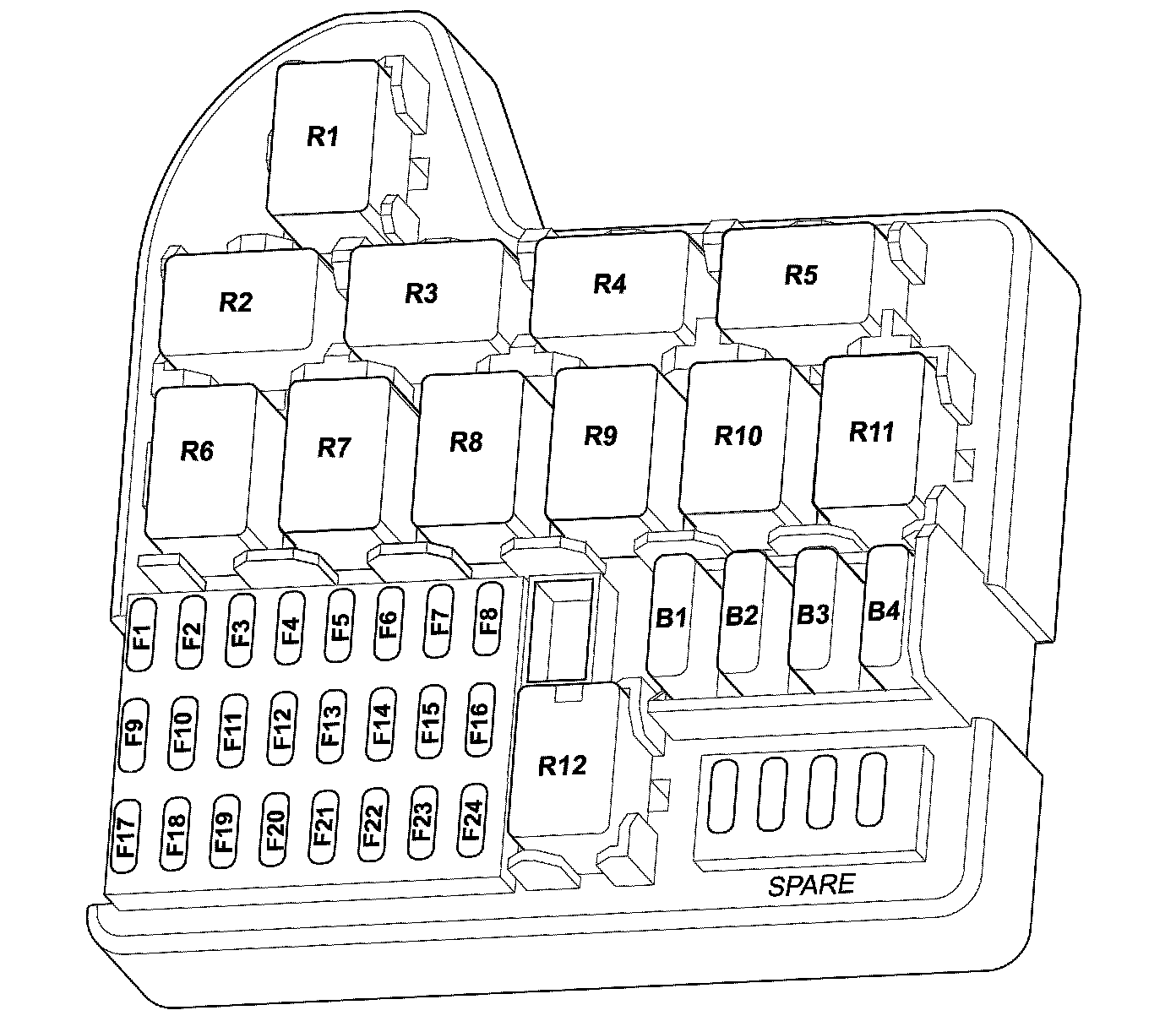

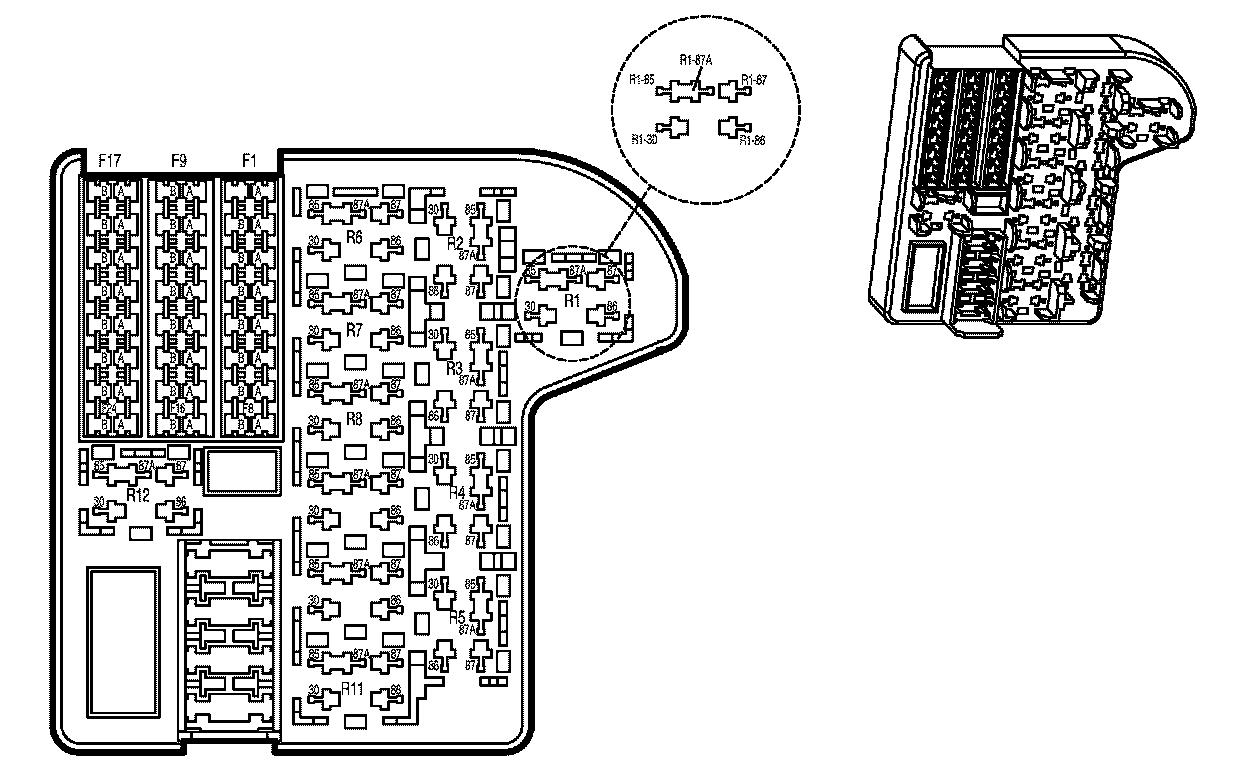

Electrical Center Identification Views

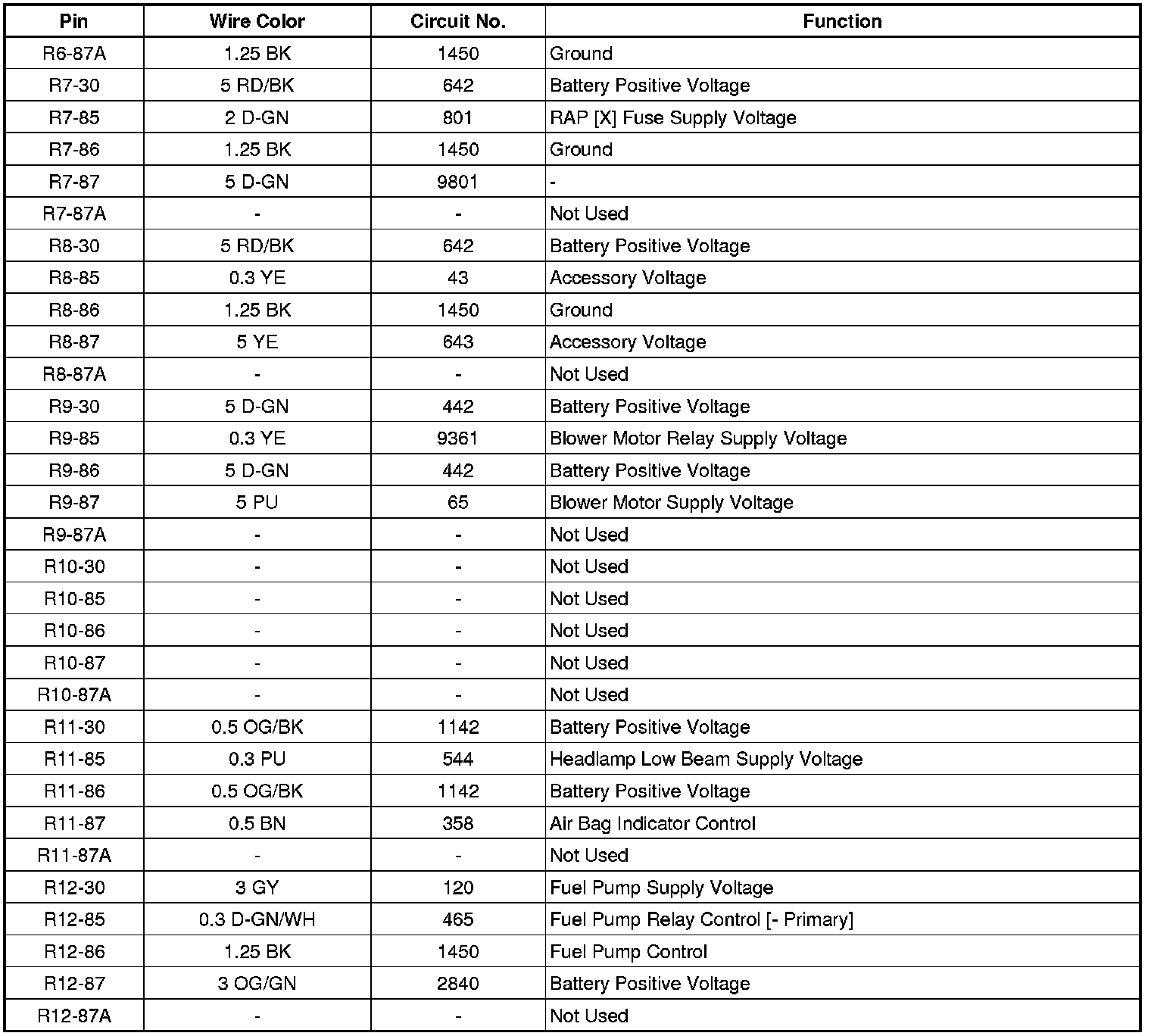

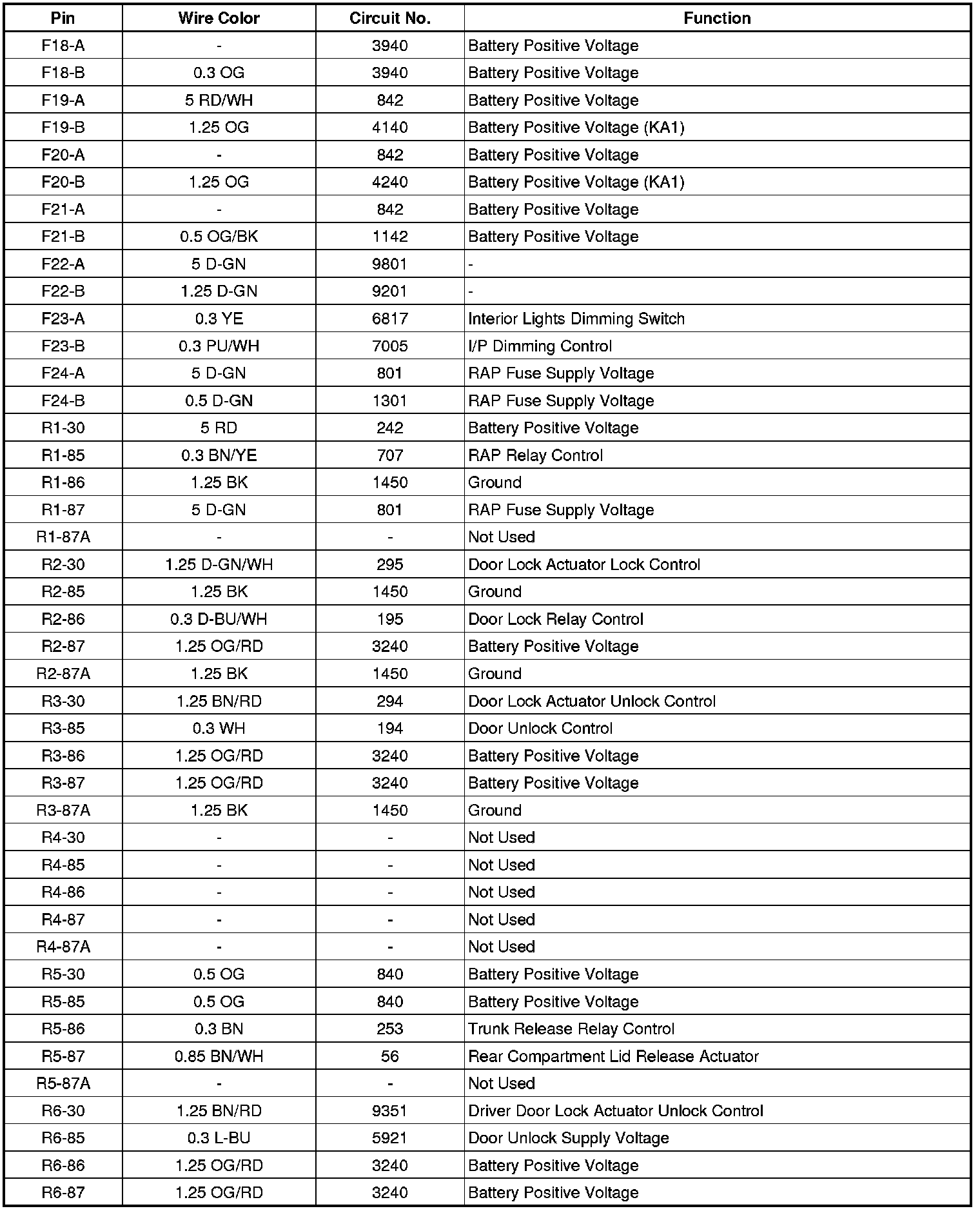

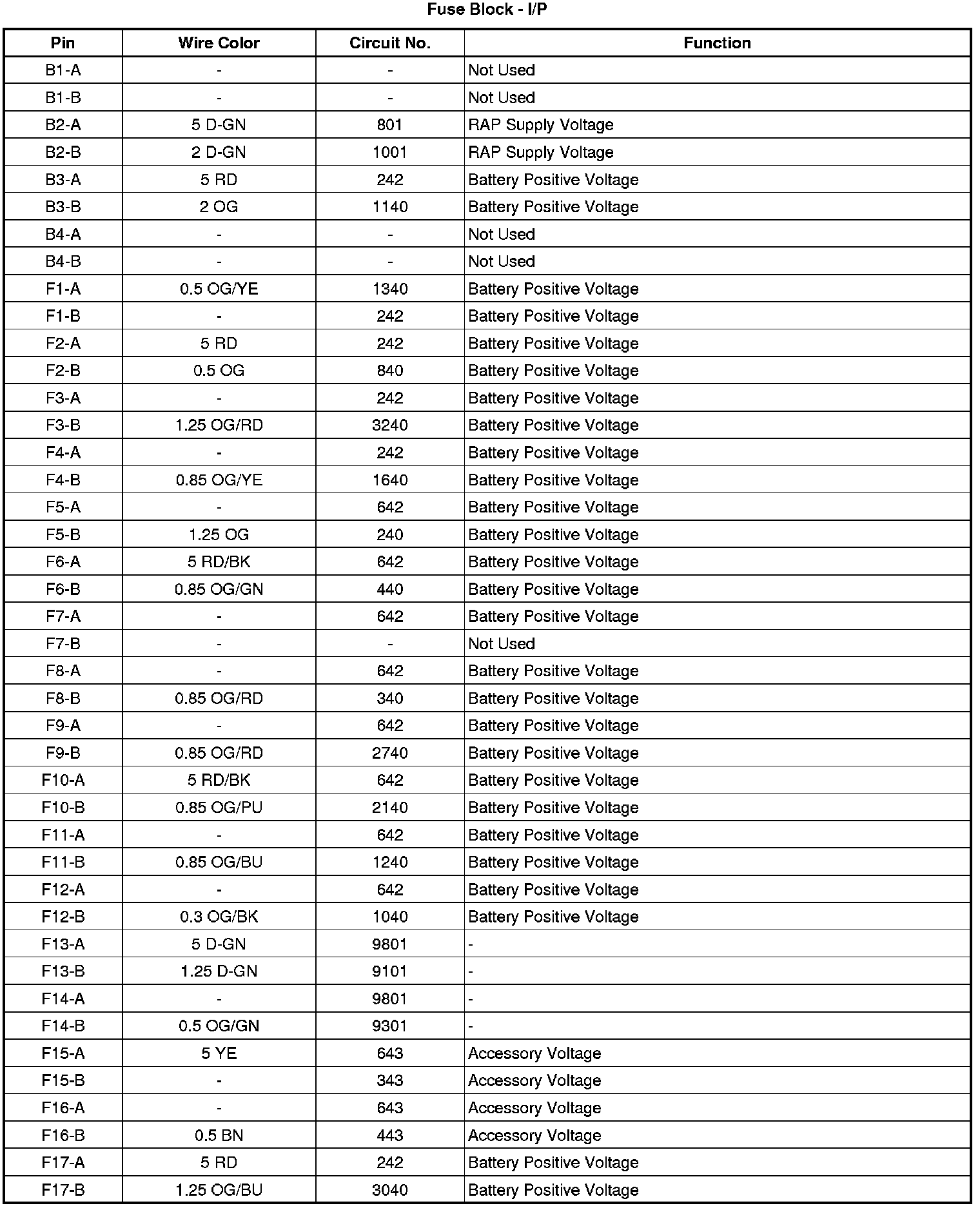

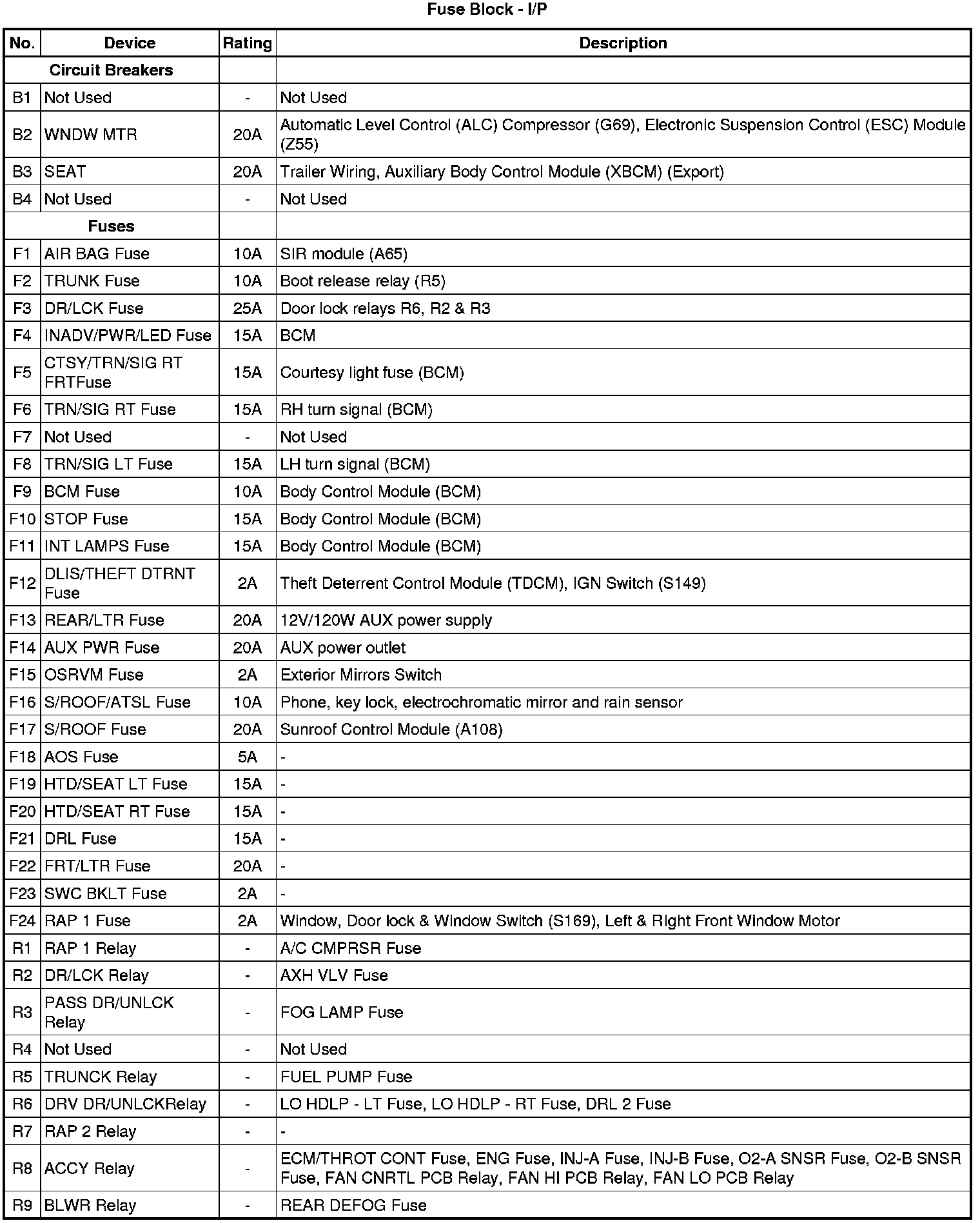

Fuse Block - I/P














Fuse Block - I/P
