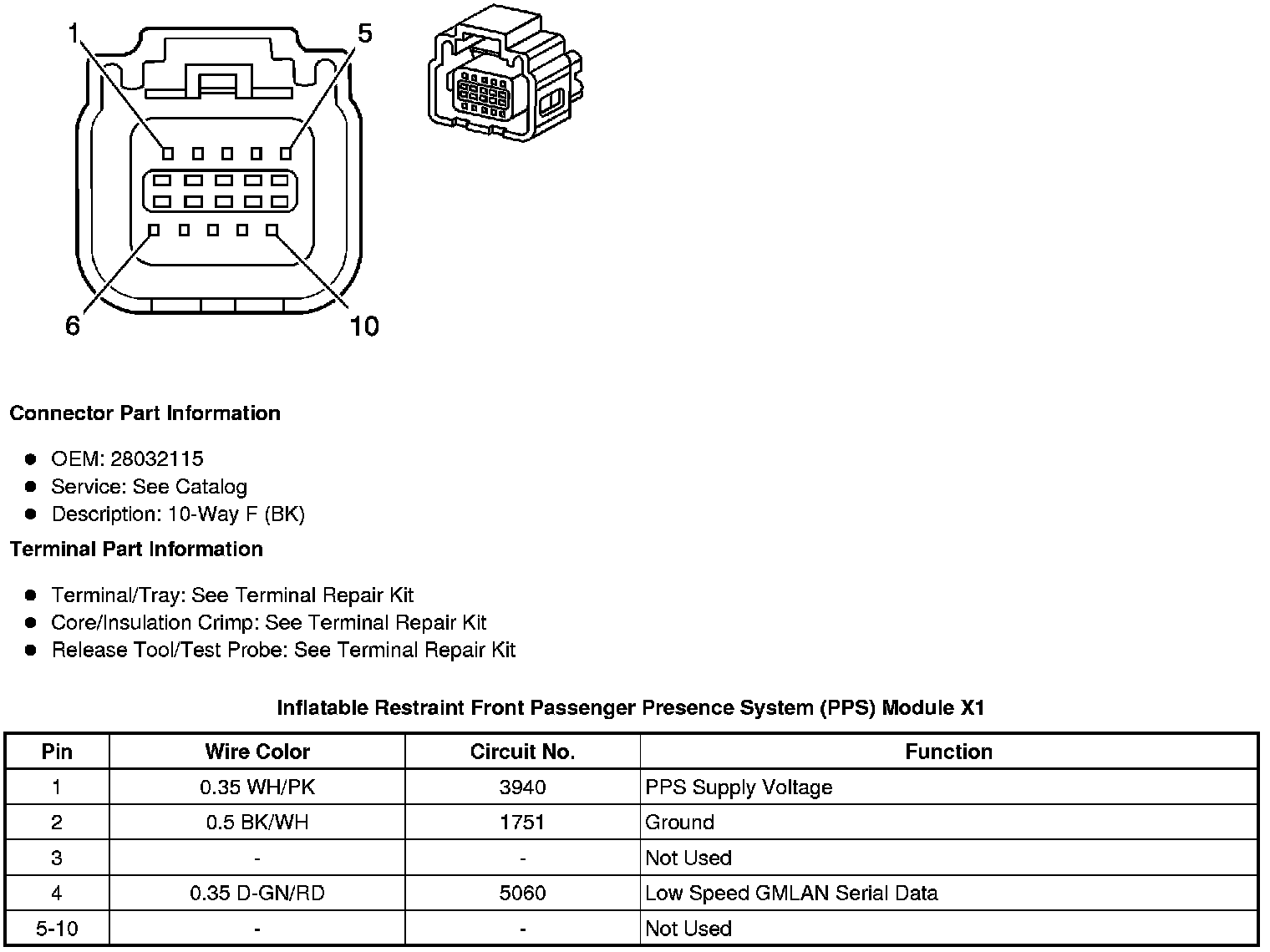

Inflatable Restraint Front Passenger Presence System (PPS) Module X1

Component Connector End Views

Inflatable Restraint Front Passenger Presence System (PPS) Module X1
