Heated Seat Control Module - Driver (KA1)
Heated Seat Control Module - Driver (KA1)

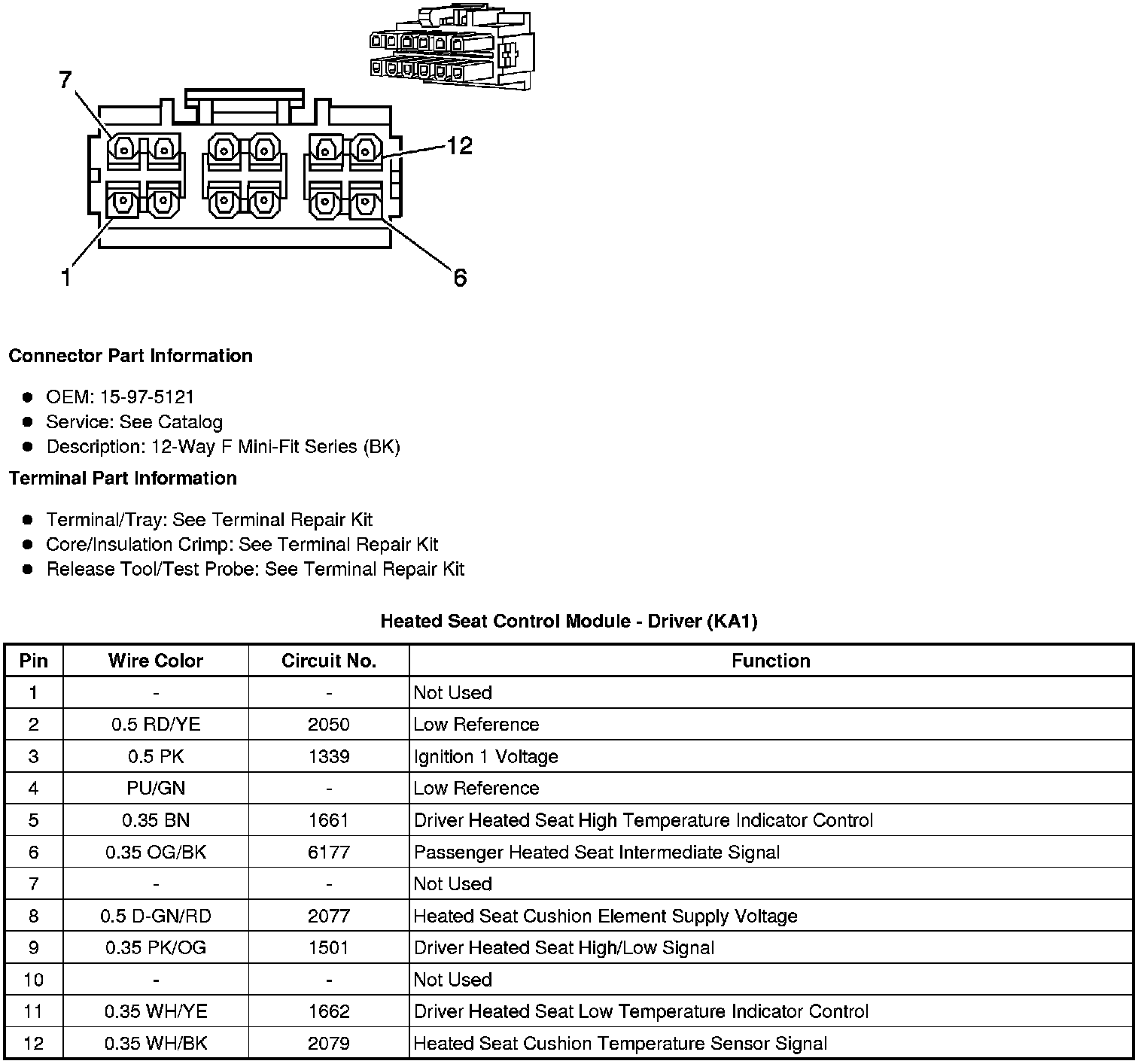

Component Connector End Views
Heated Seat Control Module - Driver (KA1)
