Vehicle Communication Interface Module (VCIM) X2

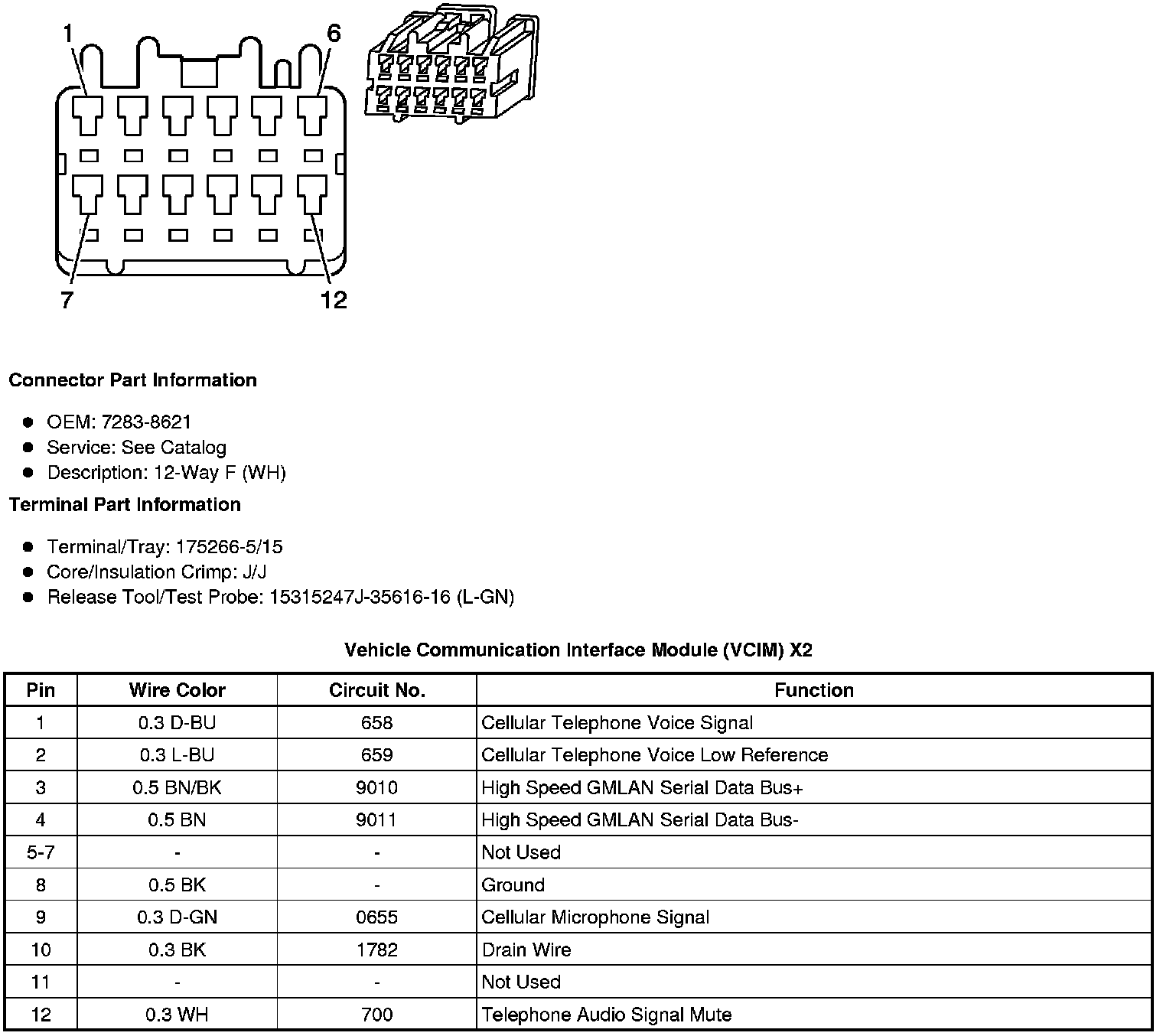

Component Connector End Views

Vehicle Communication Interface Module (VCIM) X2
