Locations
>>
Splice Locations
Splice Locations

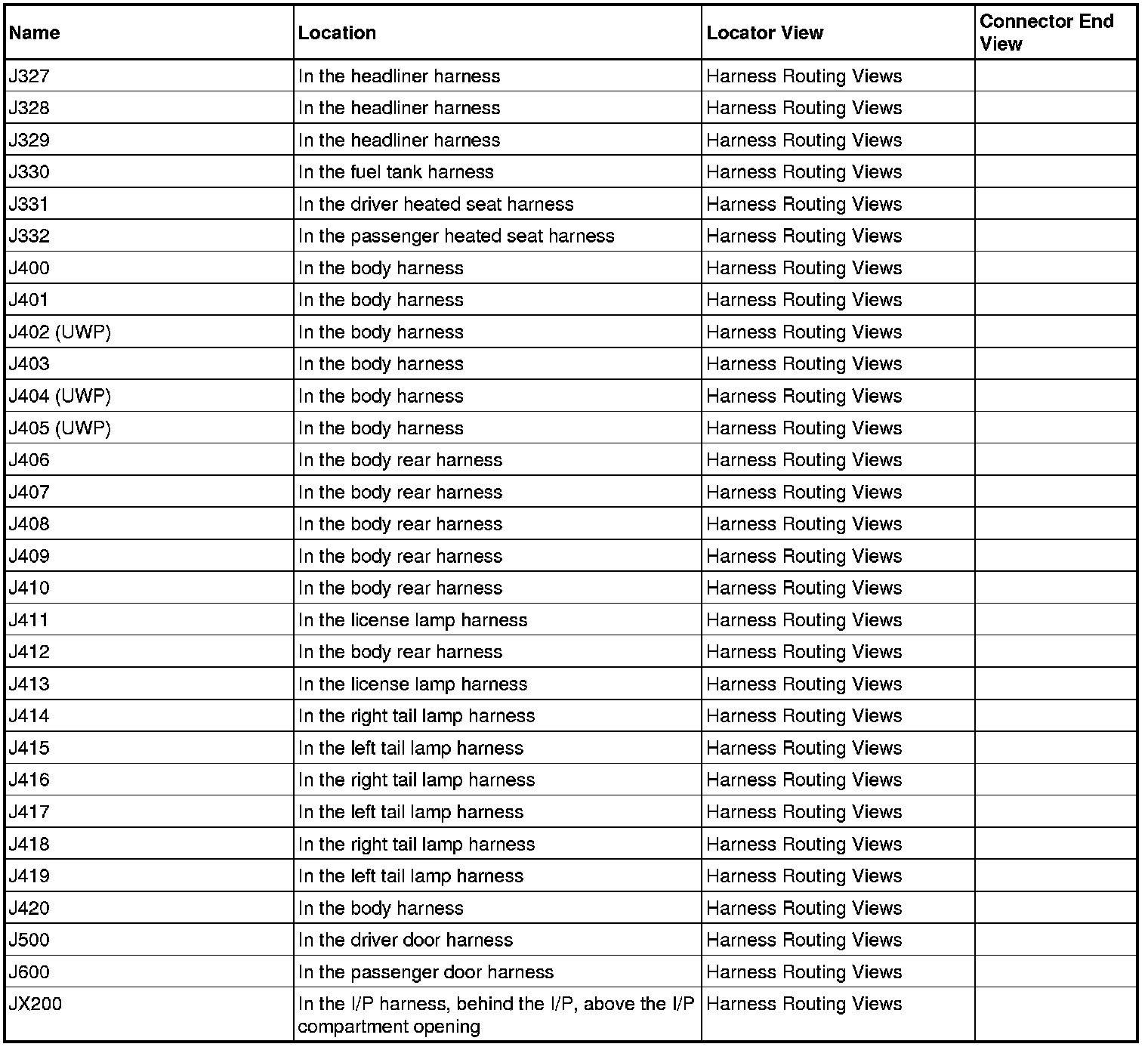

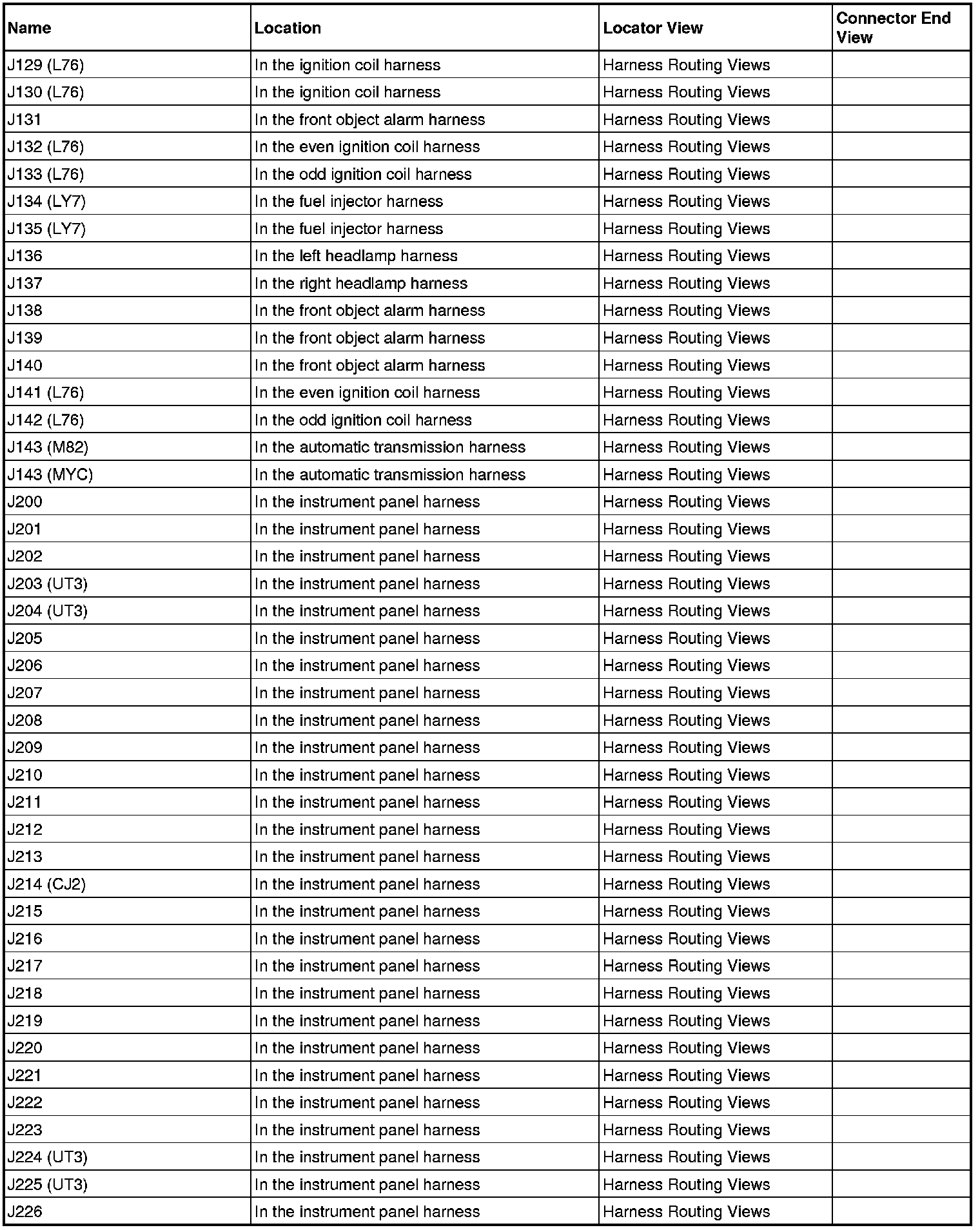

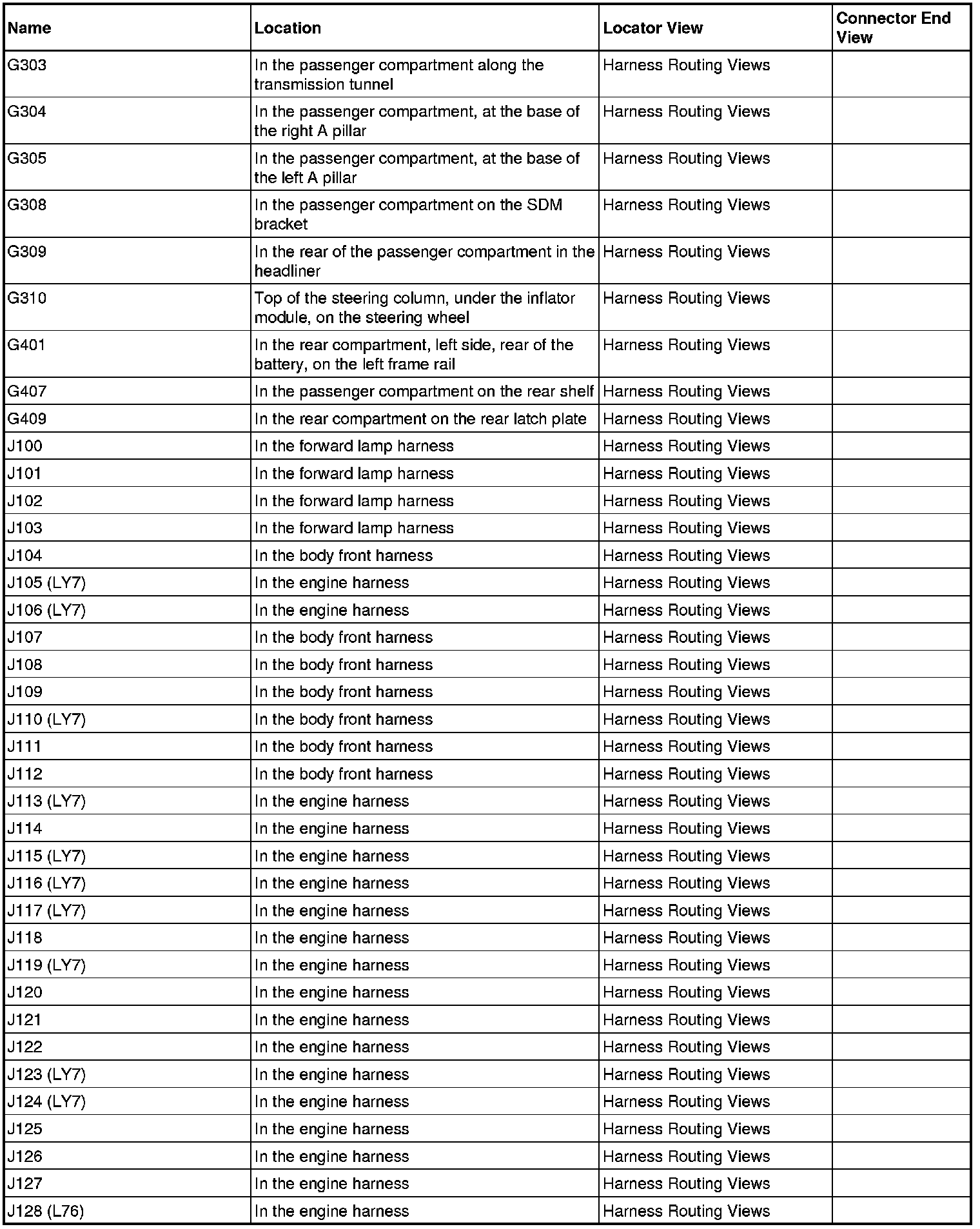

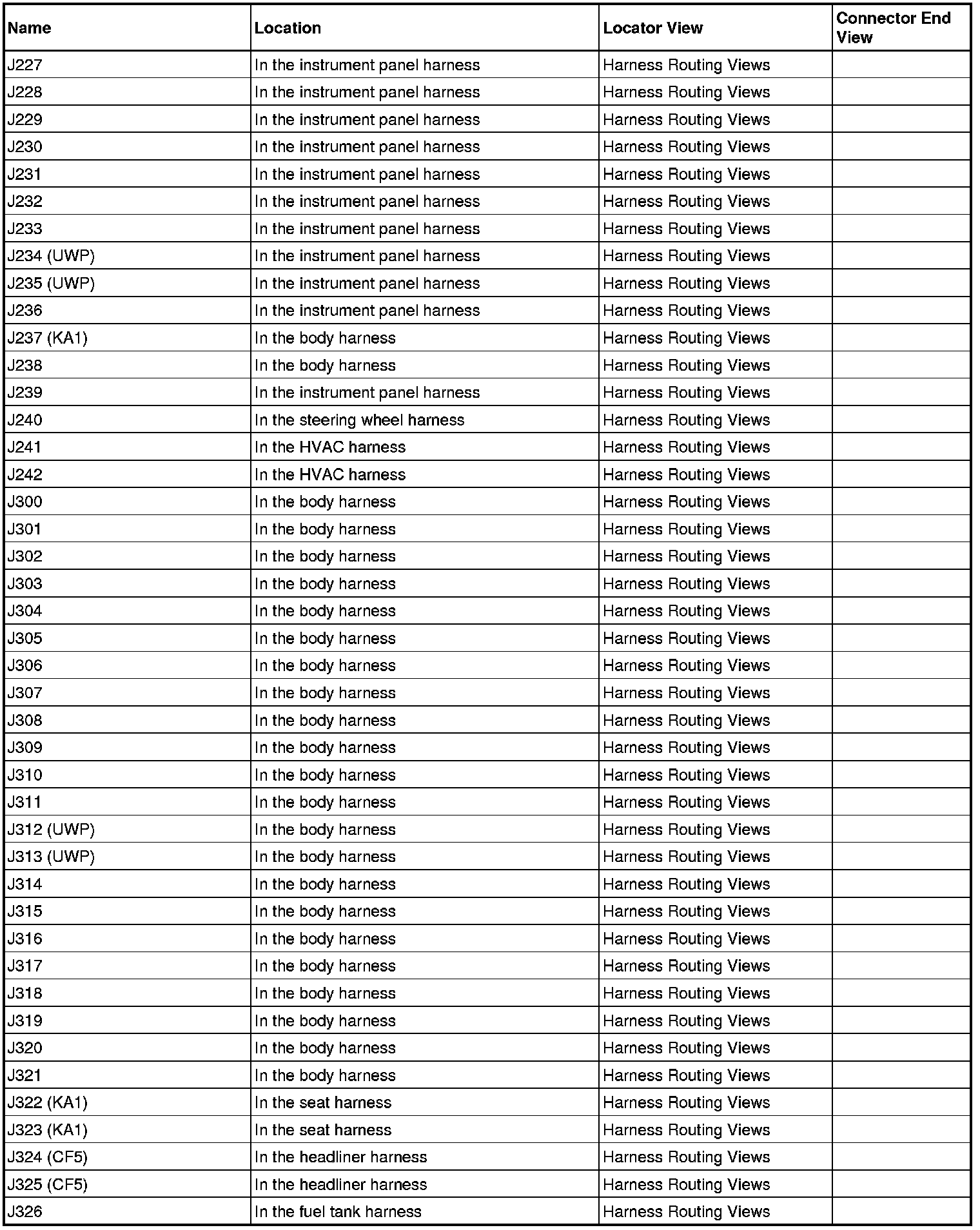

Master Splice List
G3 - J1:
J1 - J2:
J2 - J3:
J3 - JX:
