Engine - Coolant Temperature Sensor/Switch

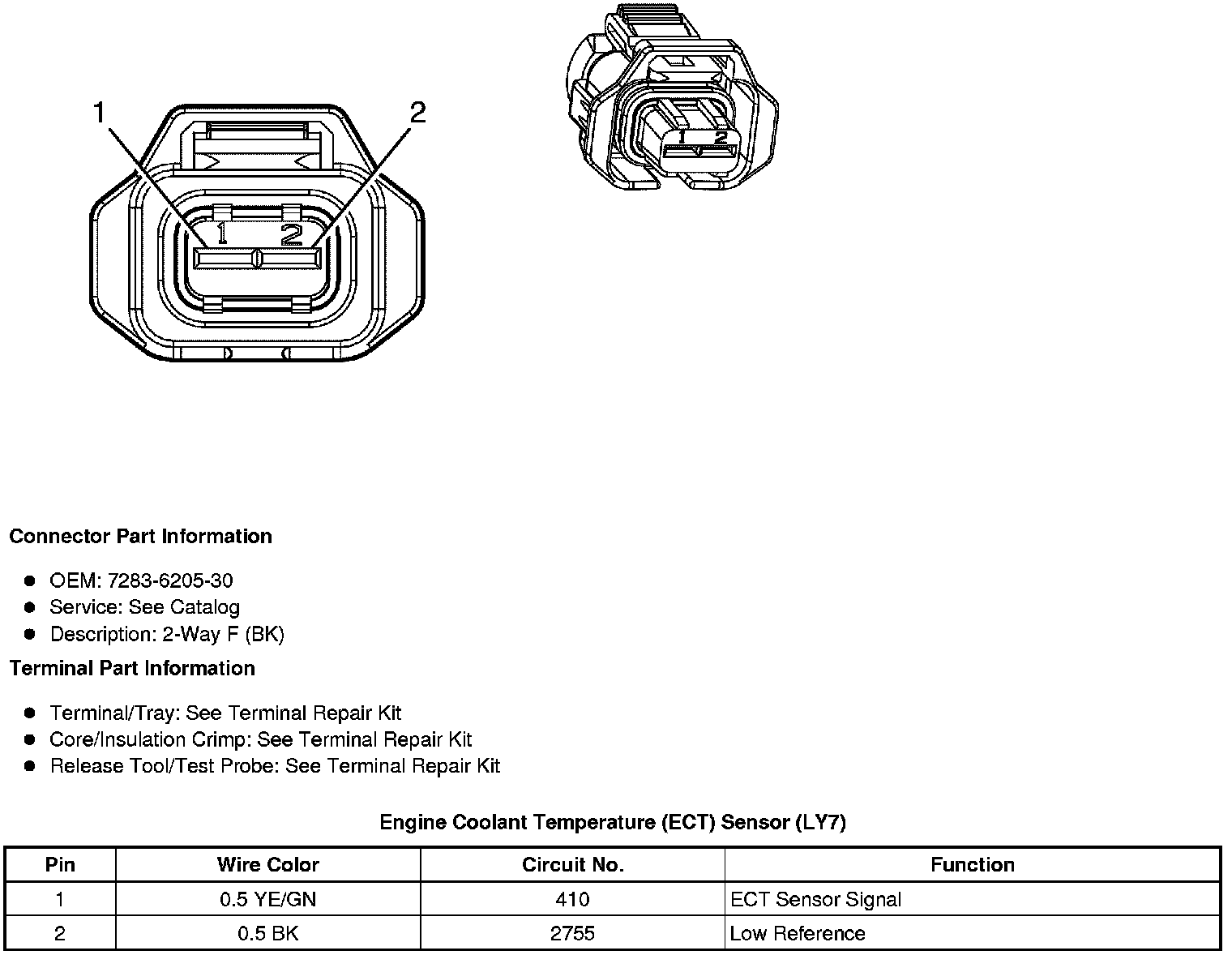

Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (LY7)
