Inflatable Restraint Sensing and Diagnostic Module (SDM) X2

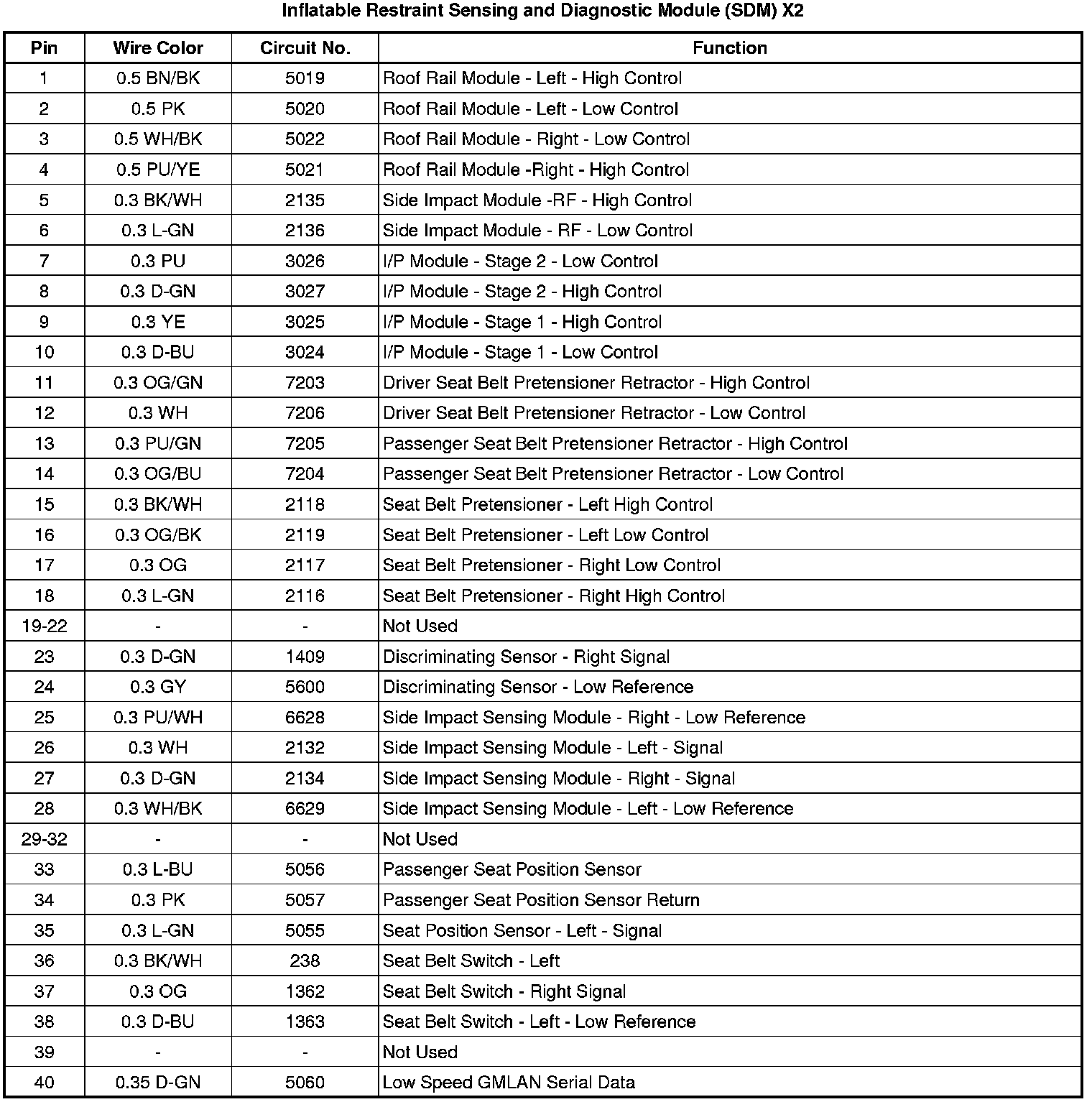

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
