Installation Procedure

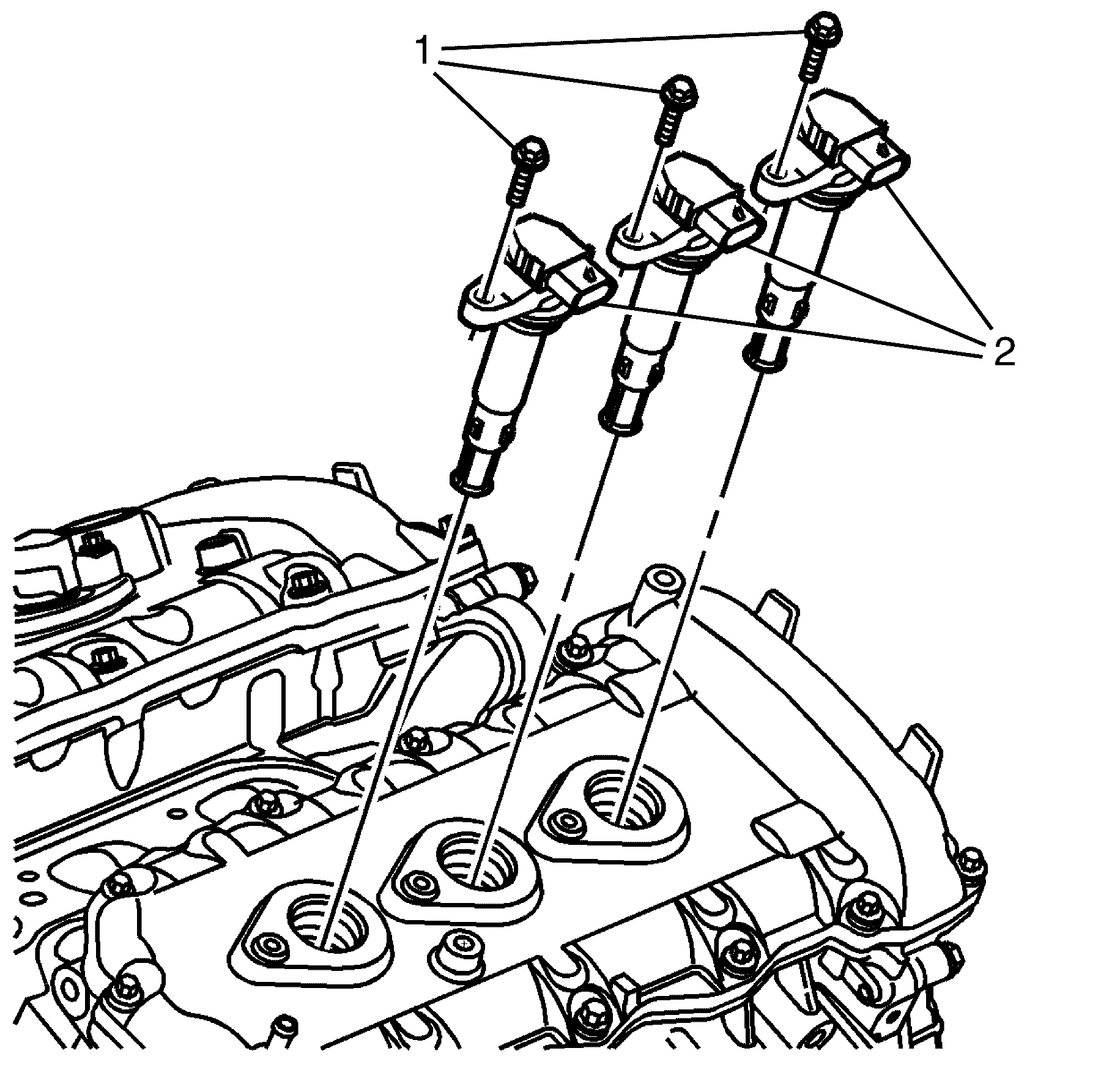

    Fig 1: Identifying Ignition Coil To Camshaft Cover Retaining Bolts
    GM1949892Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coil (2) to the engine.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition coil to camshaft cover retaining bolts (1) and tighten to 10 N.m (89 lb in).
  3. Install the ignition coil harness connector to the ignition coil.
  4. Install the upper intake manifold. Refer to Upper Intake Manifold Replacement .
  5. Install the engine cover. Refer to Engine Cover Replacement .
