Variable Valve Timing Solenoid: Diagrams

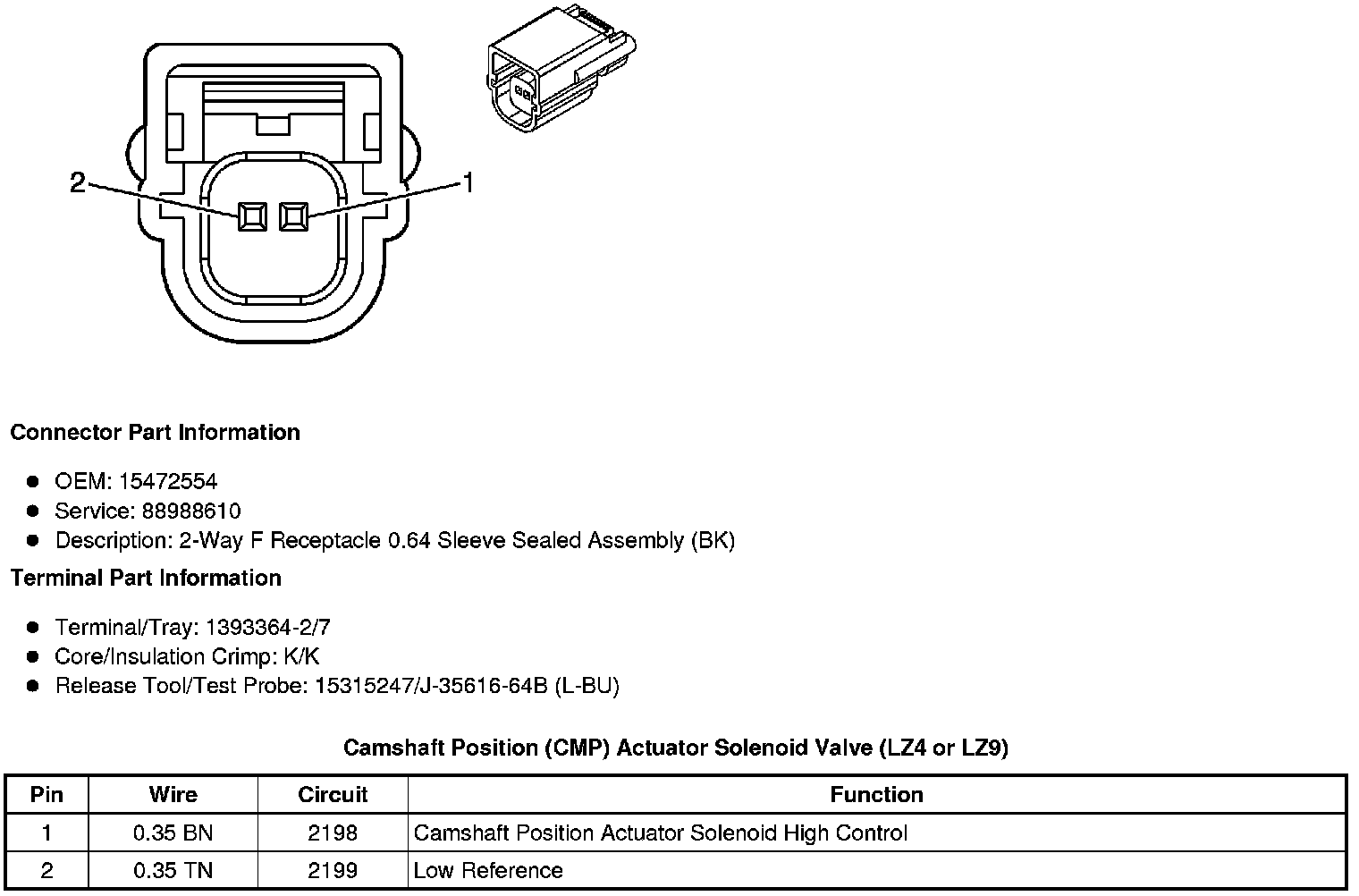

Component Connector End Views

Camshaft Position (CMP) Actuator Solenoid Valve (LZ4 or LZ9)
