Oil Pressure Sensor: Diagrams

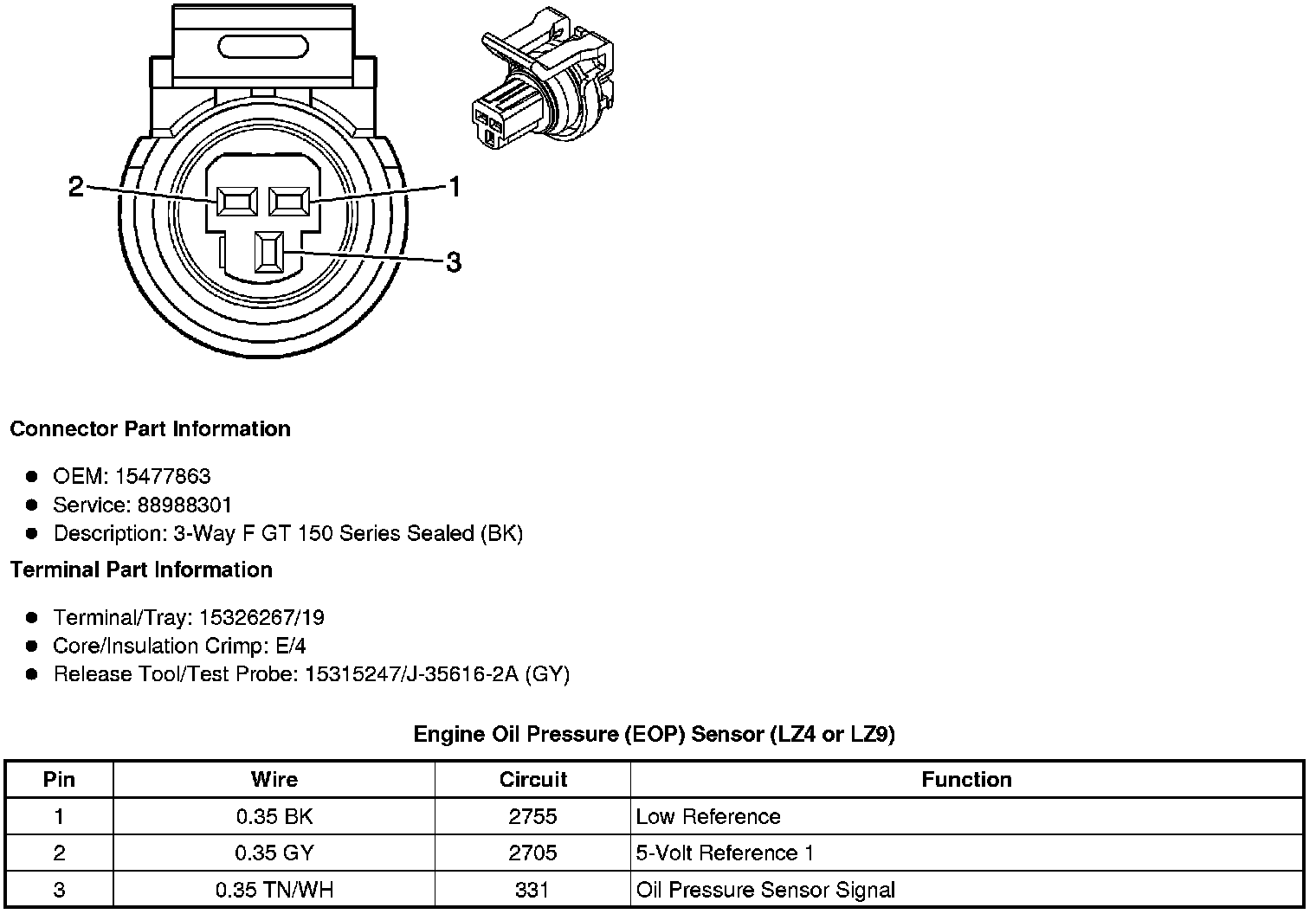

Component Connector End Views

Engine Oil Pressure (EOP) Sensor (LZ4 or LZ9)
