Convertible Top Control Module: Diagrams

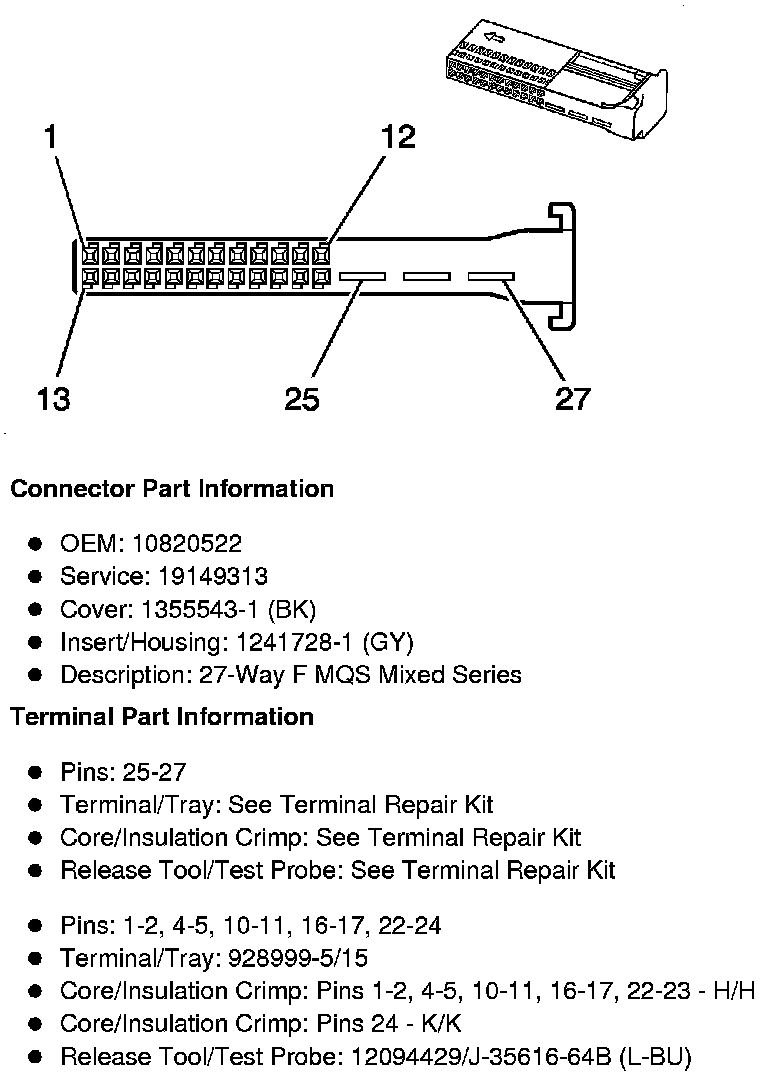

Component Connector End Views

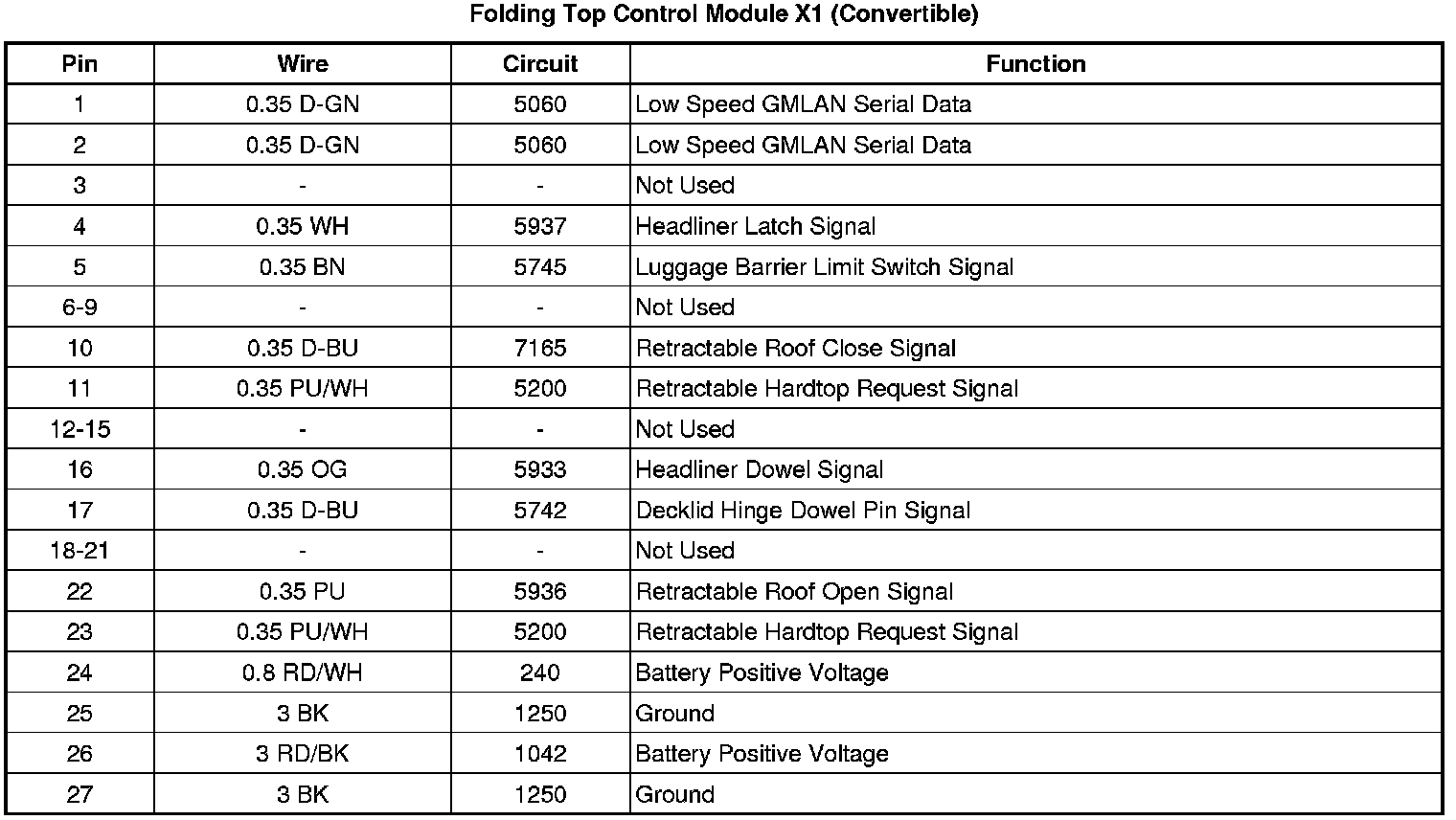

Folding Top Control Module X1 (Convertible)

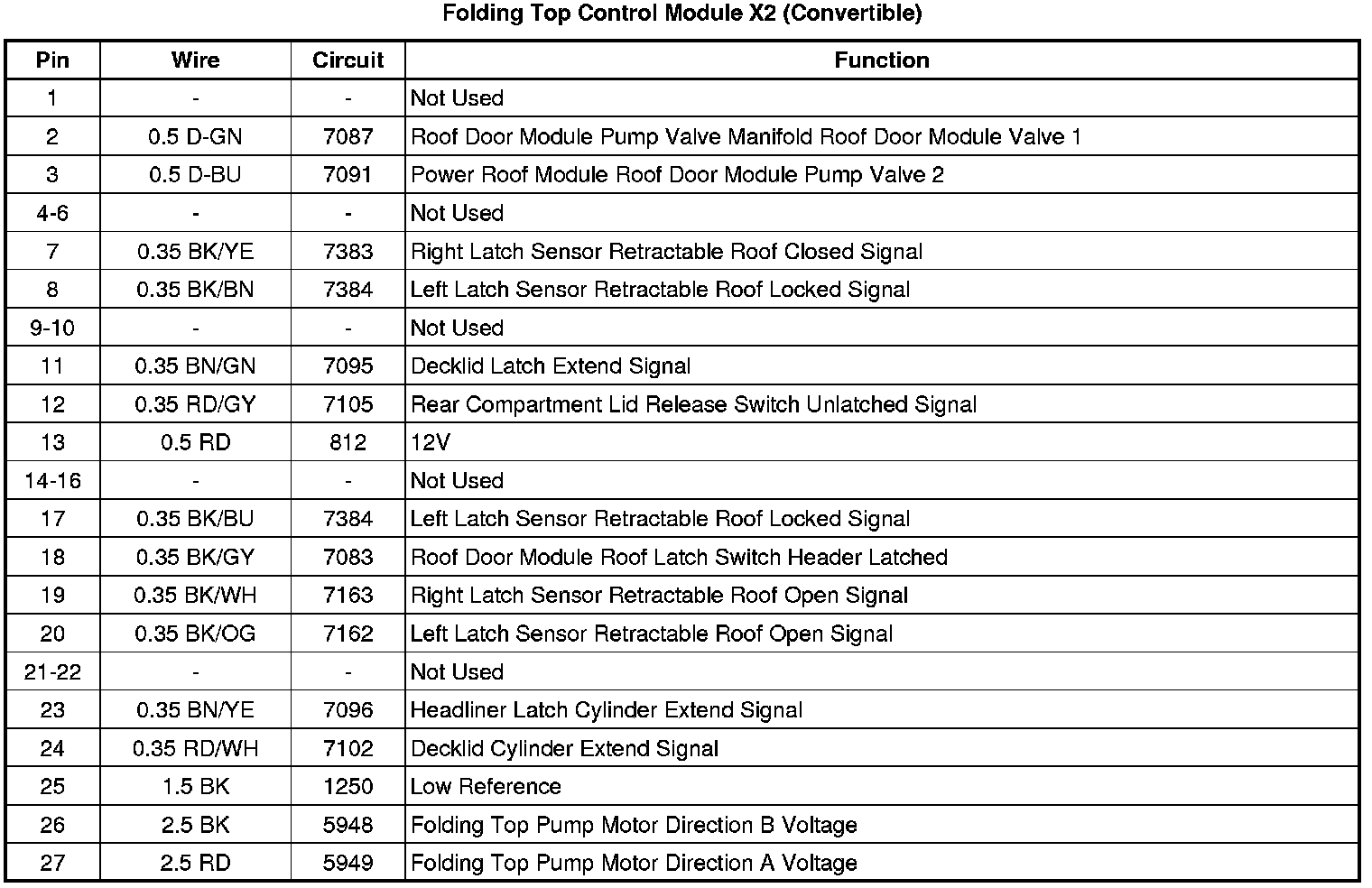

Folding Top Control Module X2 (Convertible)
