Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List
Master Electrical Component List

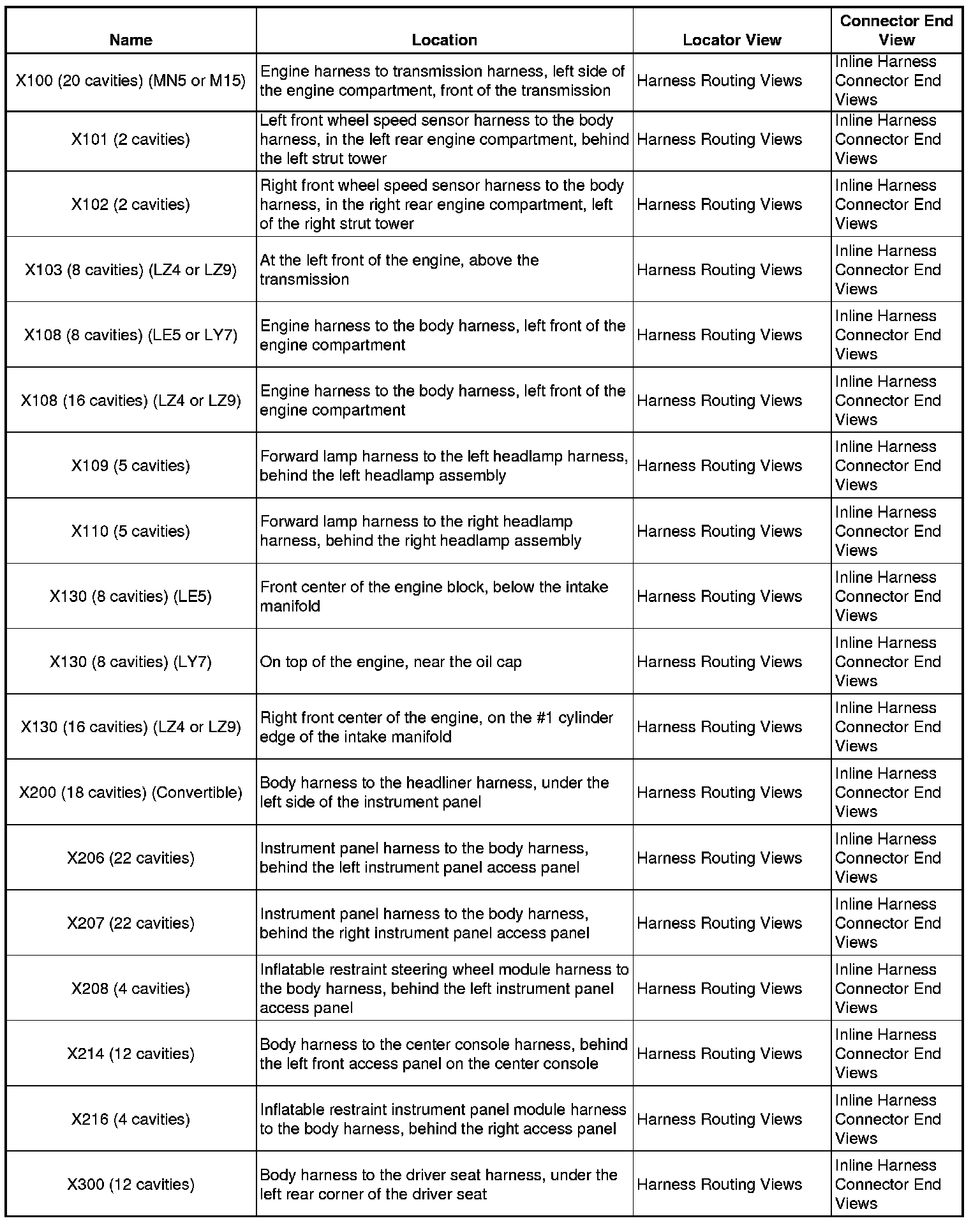

X100 - X300:

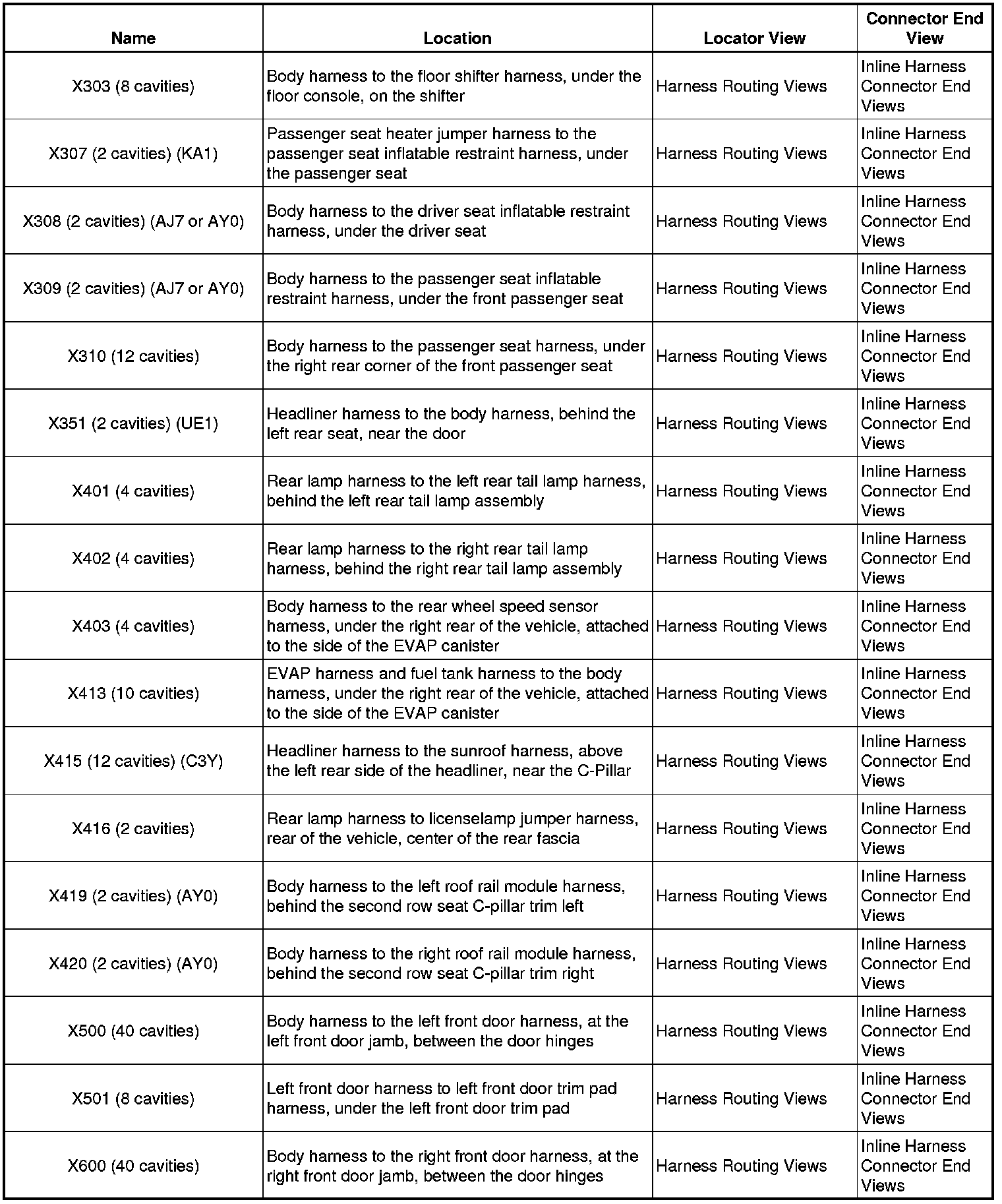

X303 - X600:

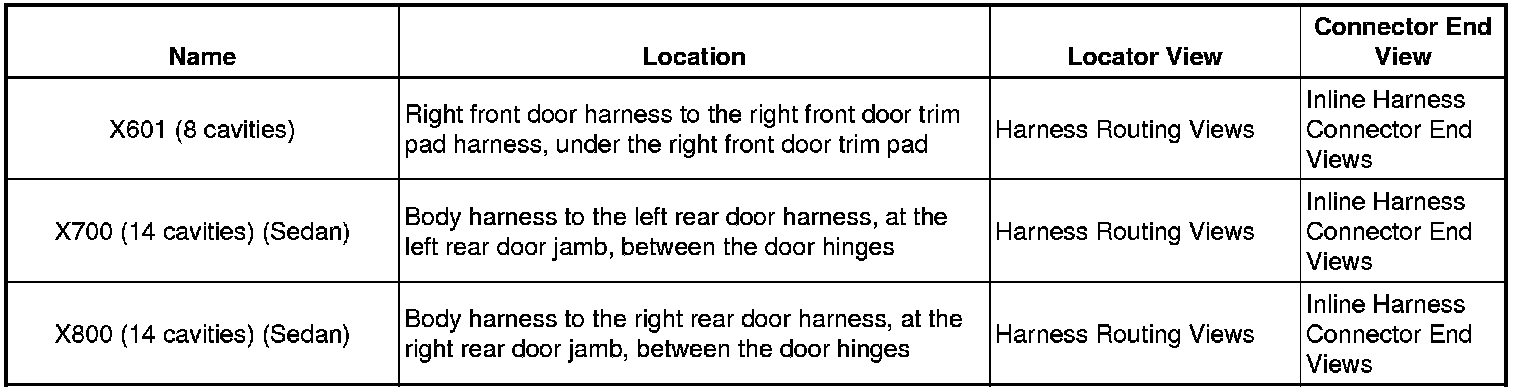

X601 - X800:
