Windows




Moveable Window Schematics

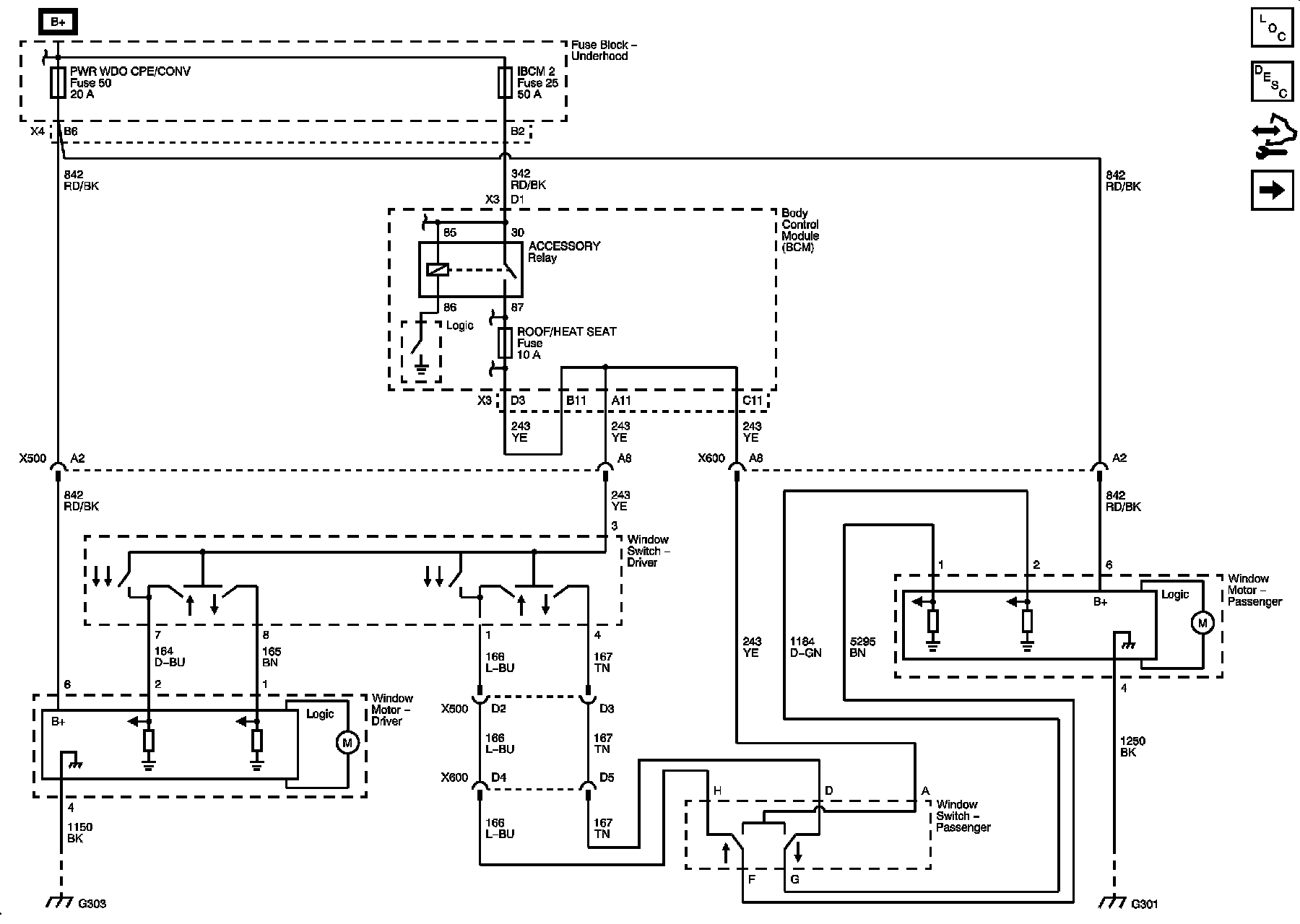

Window Motors - Coupe





Ajar Switches - Coupe

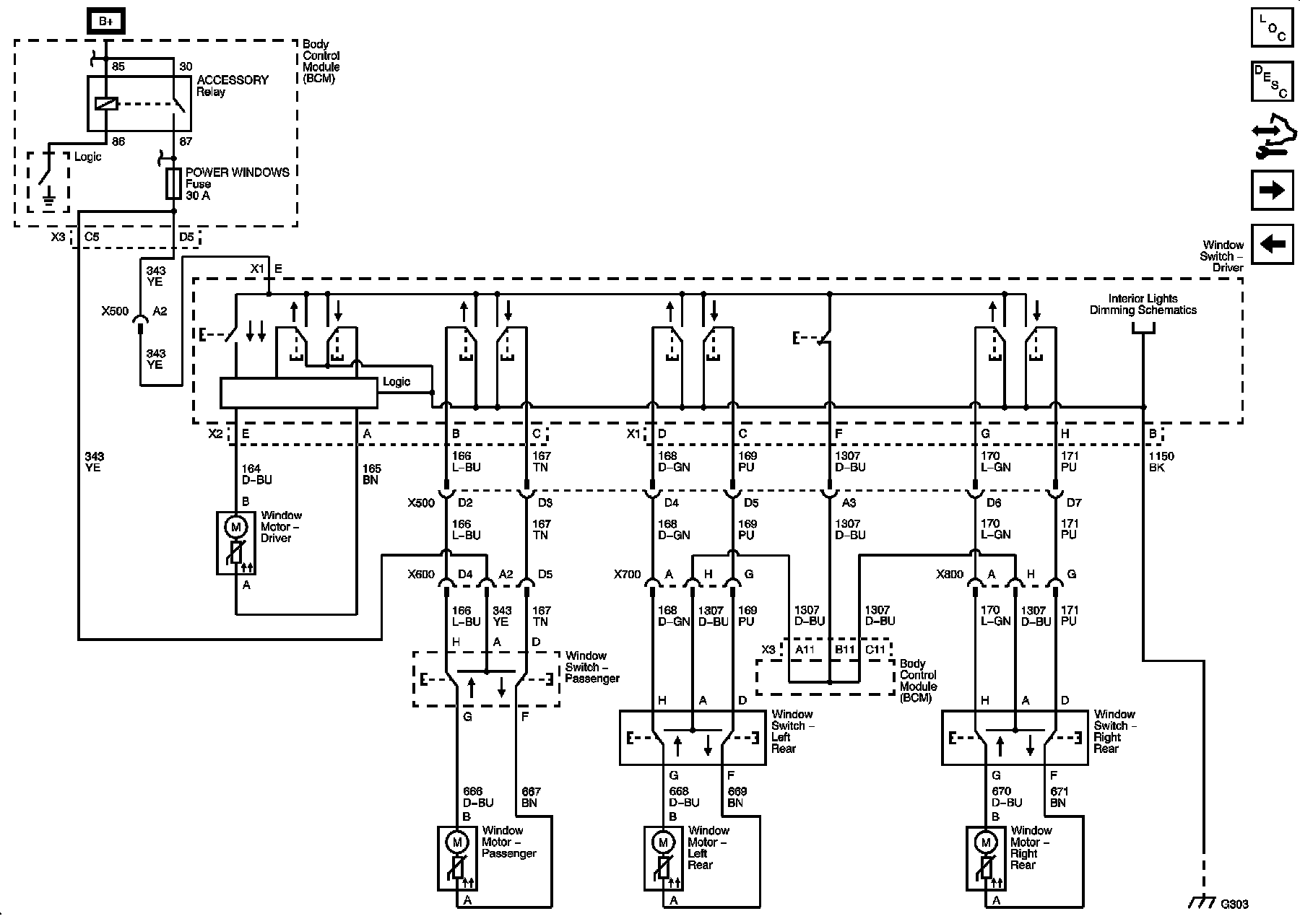

Sedan





Window Switches - Convertible





Front Window Motors - Convertible





Rear Window Motors - Convertible
