Body Control Systems




Body Control System Schematics

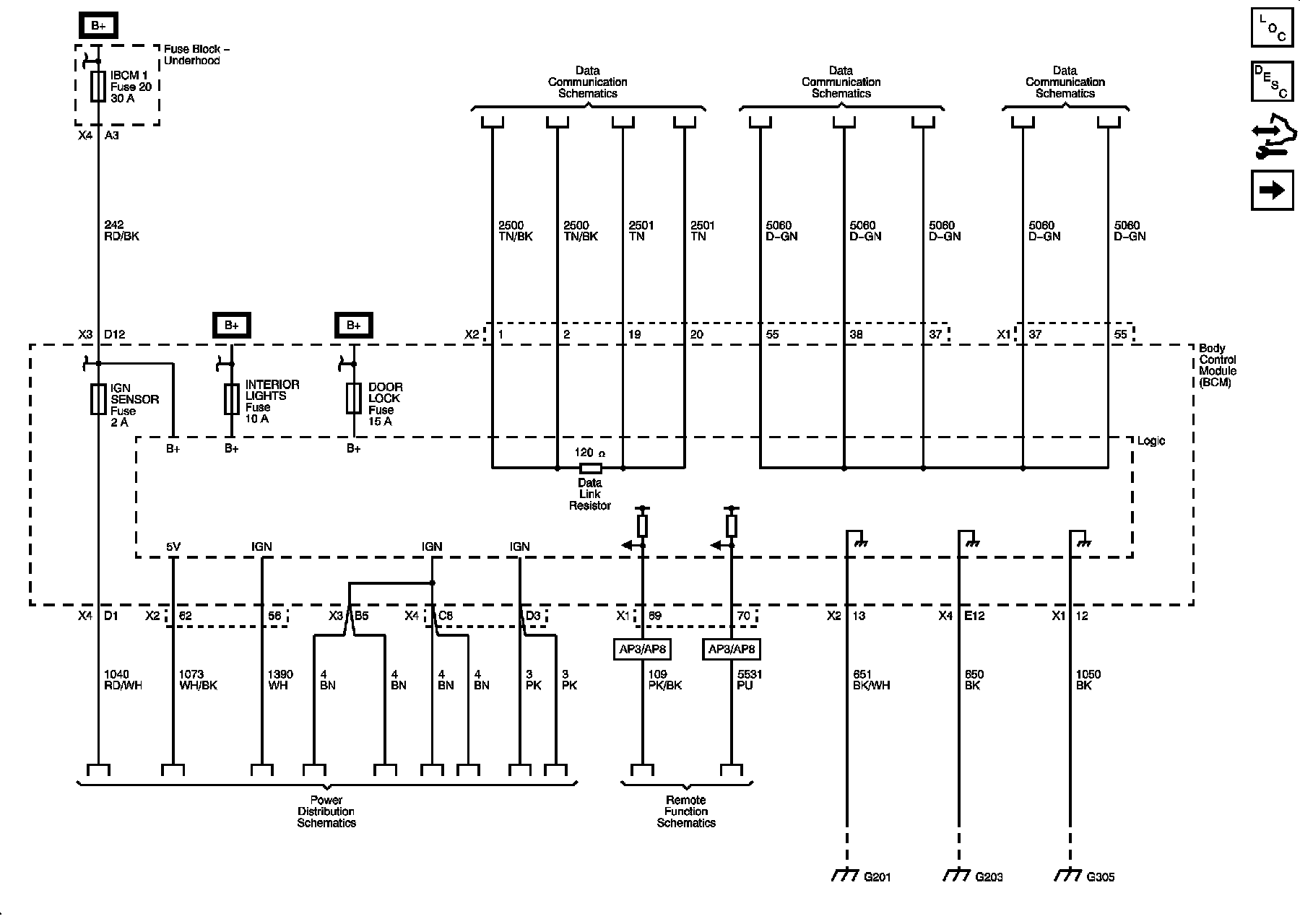

Power, Ground, and DLC





Accessory, HVAC Blower High and Run Relays

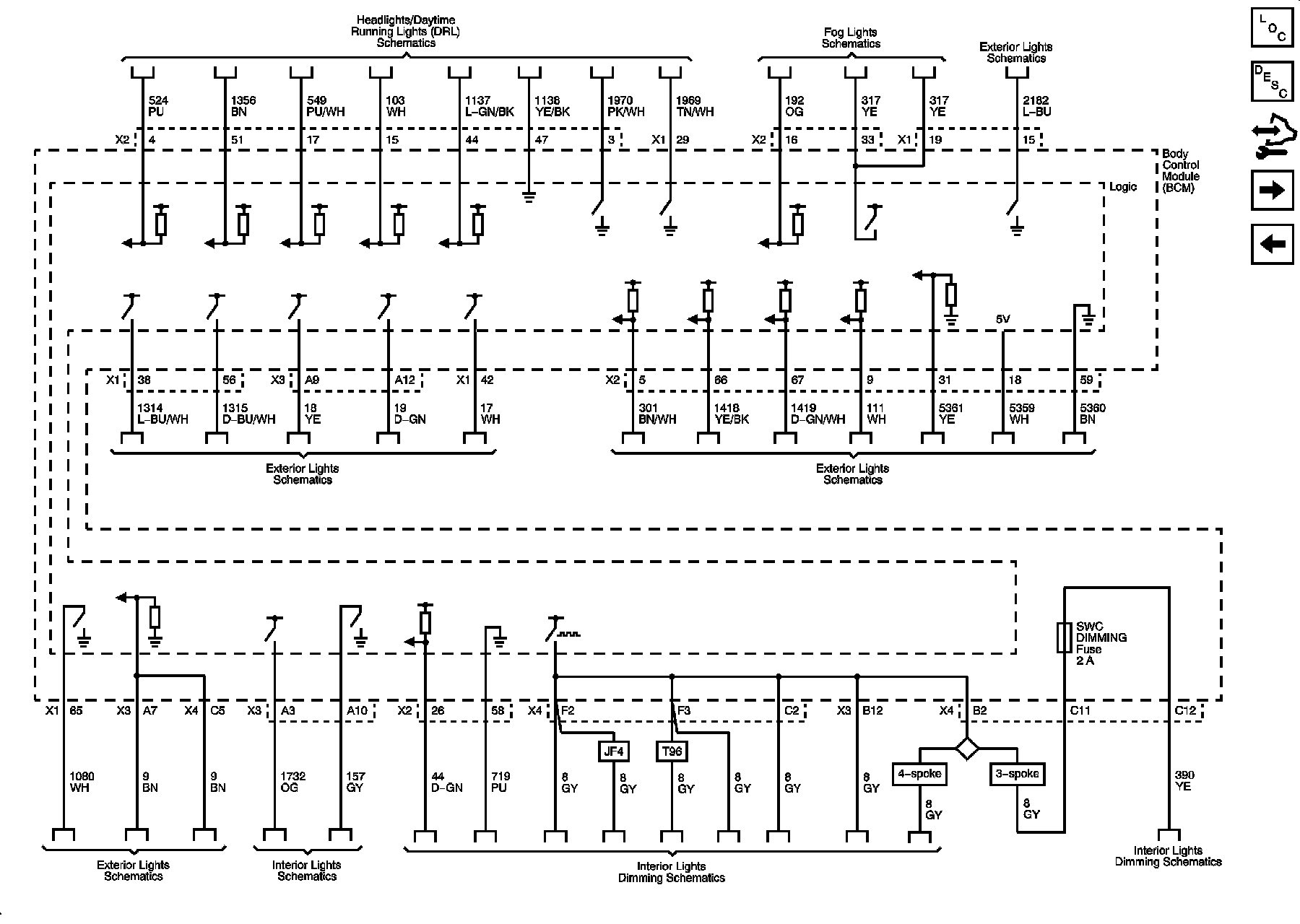

Controlled/Monitored Subsystem References (1 of 3)

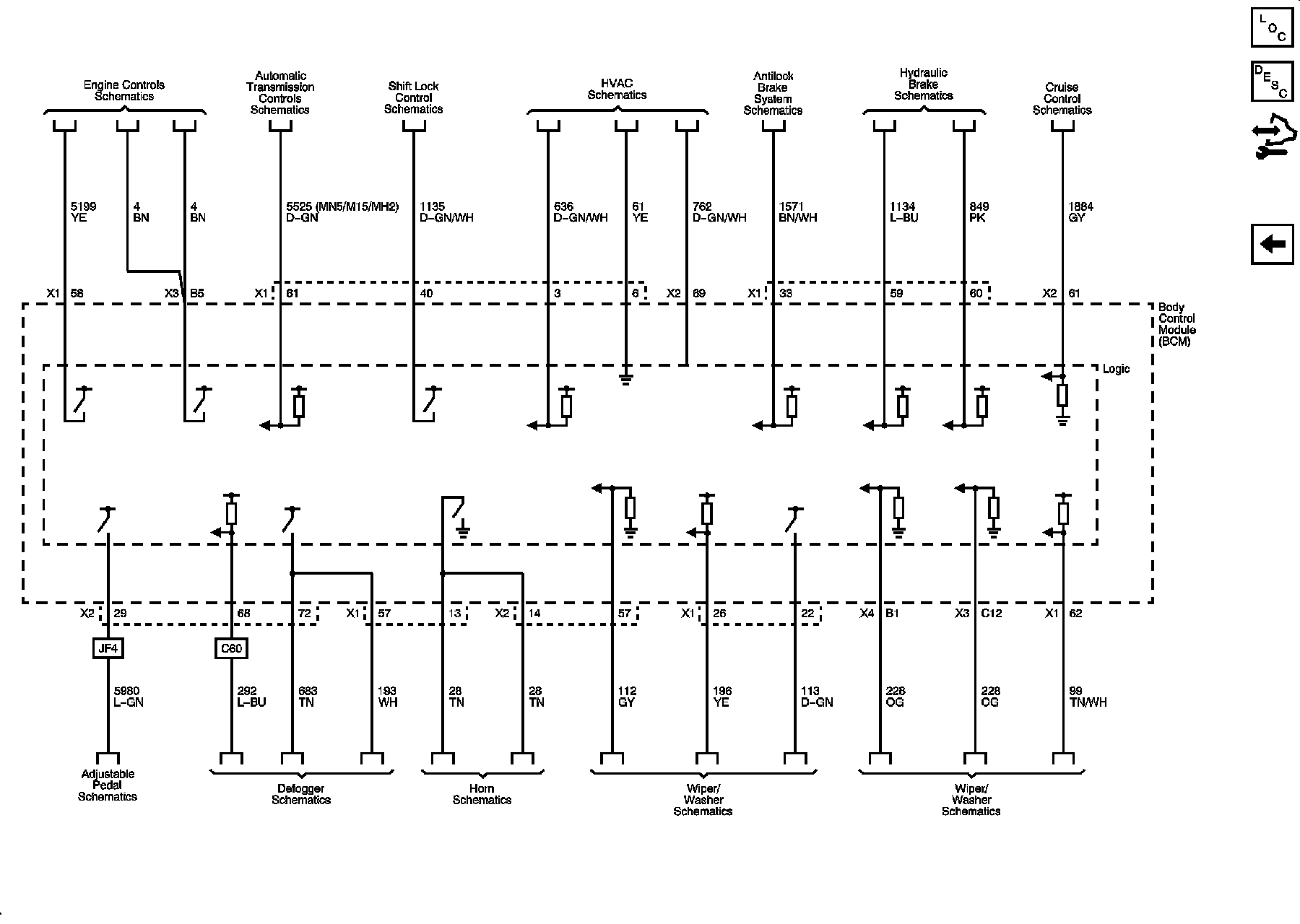

Controlled/Monitored Subsystem References (2 of 3)





Controlled/Monitored Subsystem References (3 of 3)
