Transmission Mode Switch, A/T

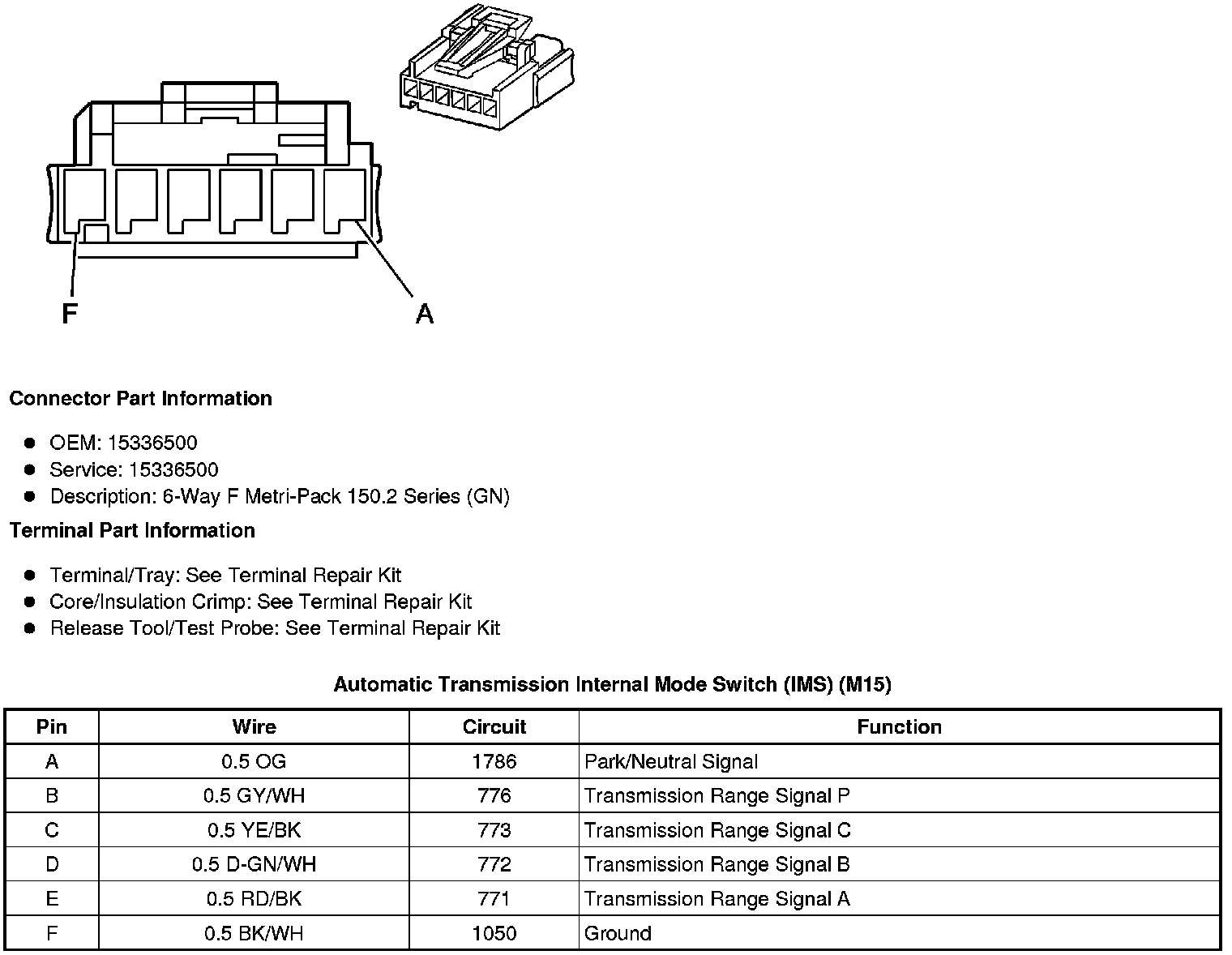

Component Connector End Views

Automatic Transmission Internal Mode Switch (IMS) (M15)
