Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch

Power Seat Switch




Component Connector End Views

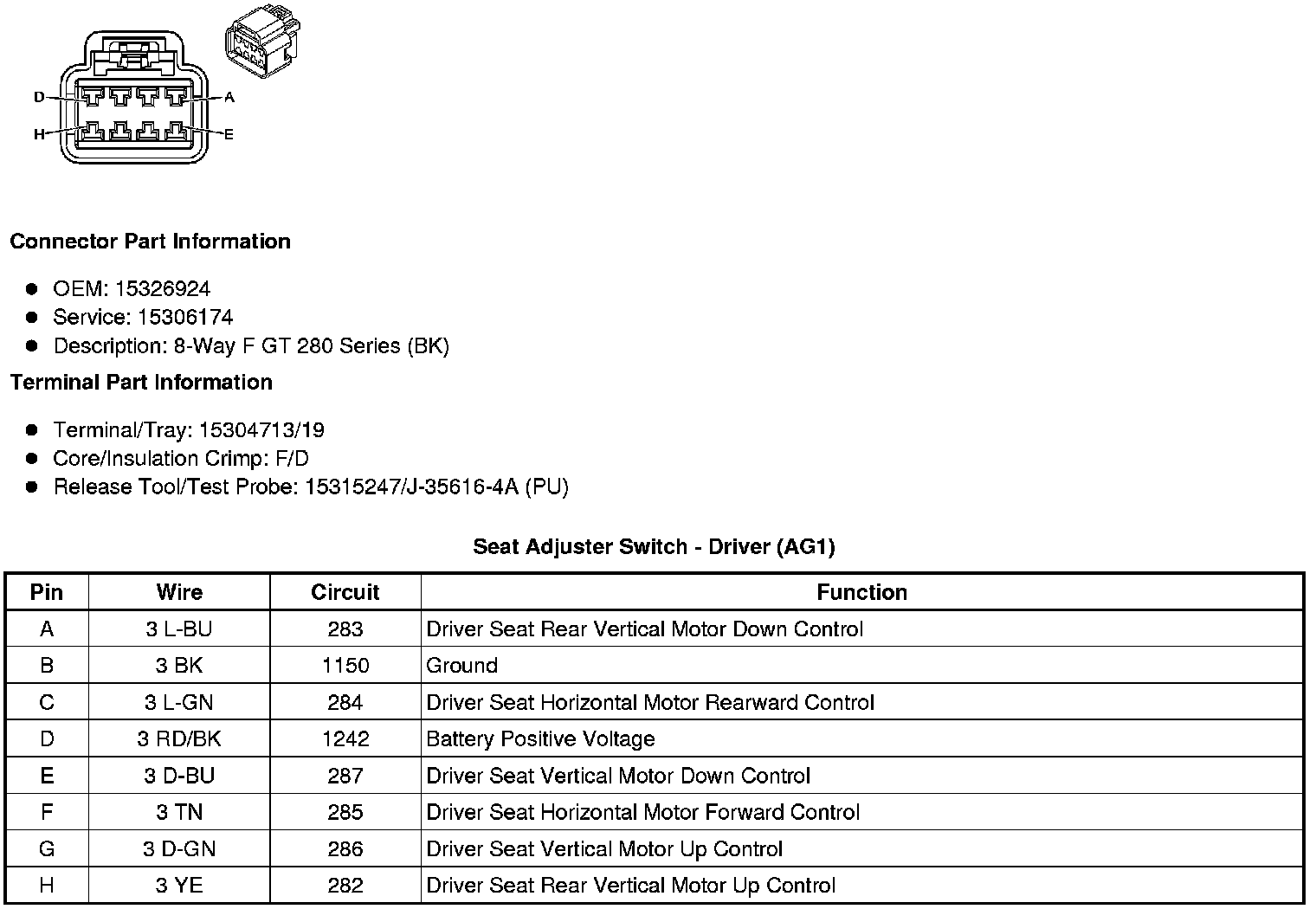

Seat Adjuster Switch - Driver (AG1)






Seat Adjuster Switch - Driver (with out AG1)
