Pedal Positioning Motor




Component Connector End Views

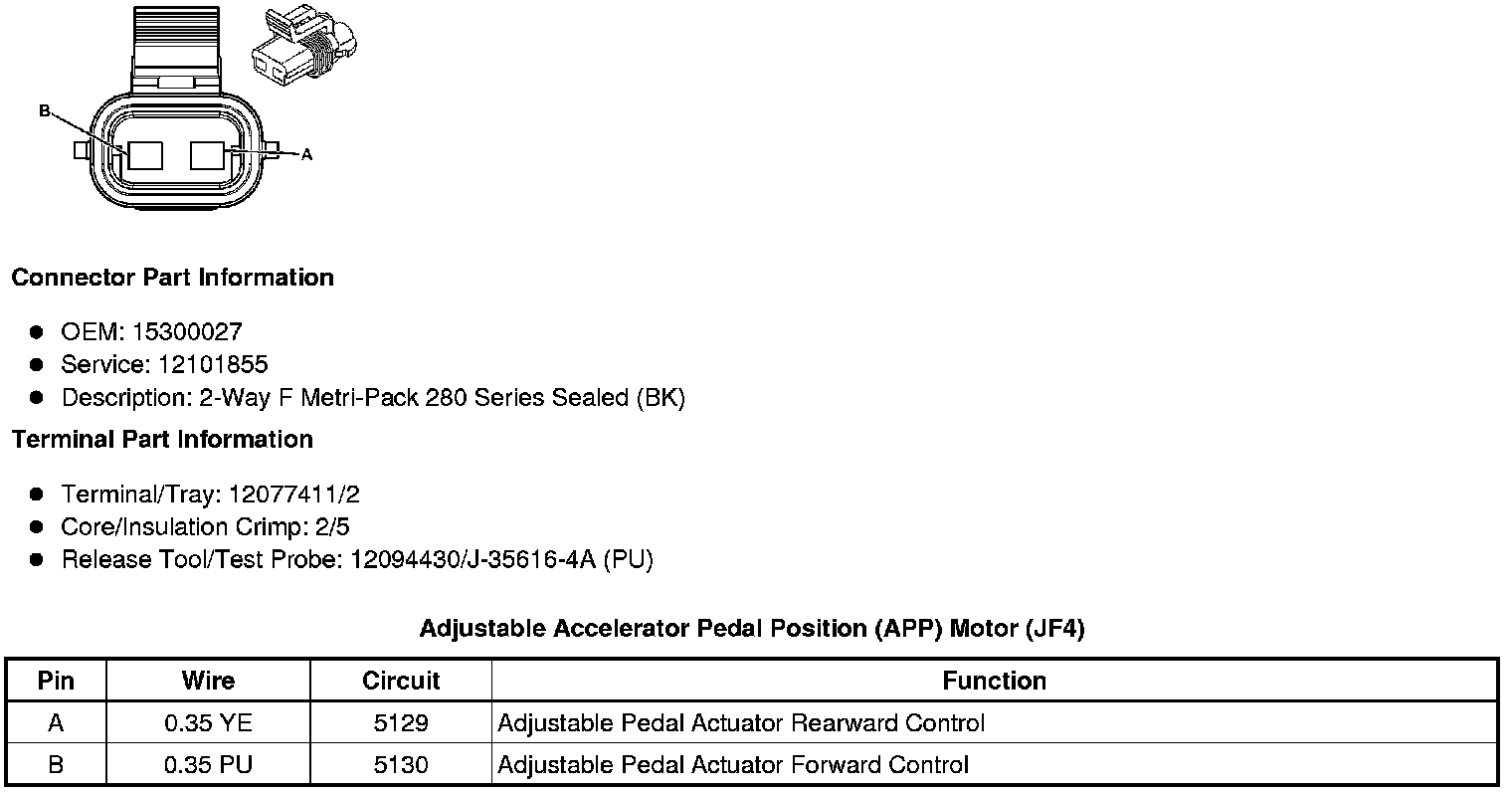

Adjustable Accelerator Pedal Position (APP) Motor (JF4)
