System Diagram

Component Connector End Views

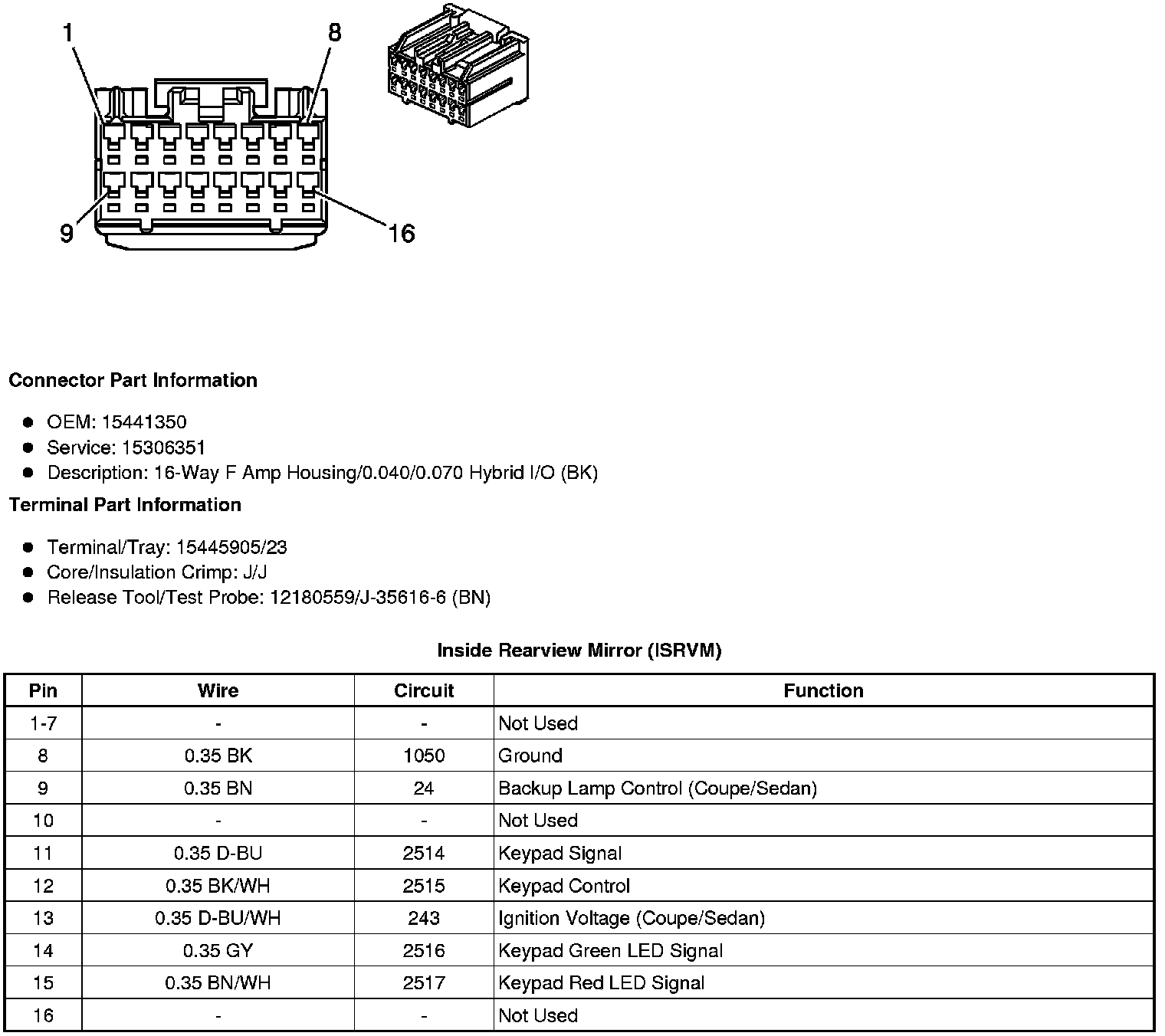

Inside Rearview Mirror (ISRVM)

Outside Rearview Mirror - Driver

Outside Rearview Mirror - Passenger
