Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fluid Pressure Sensor/Switch, A/T

Fluid Pressure Sensor/Switch, A/T




Component Connector End Views

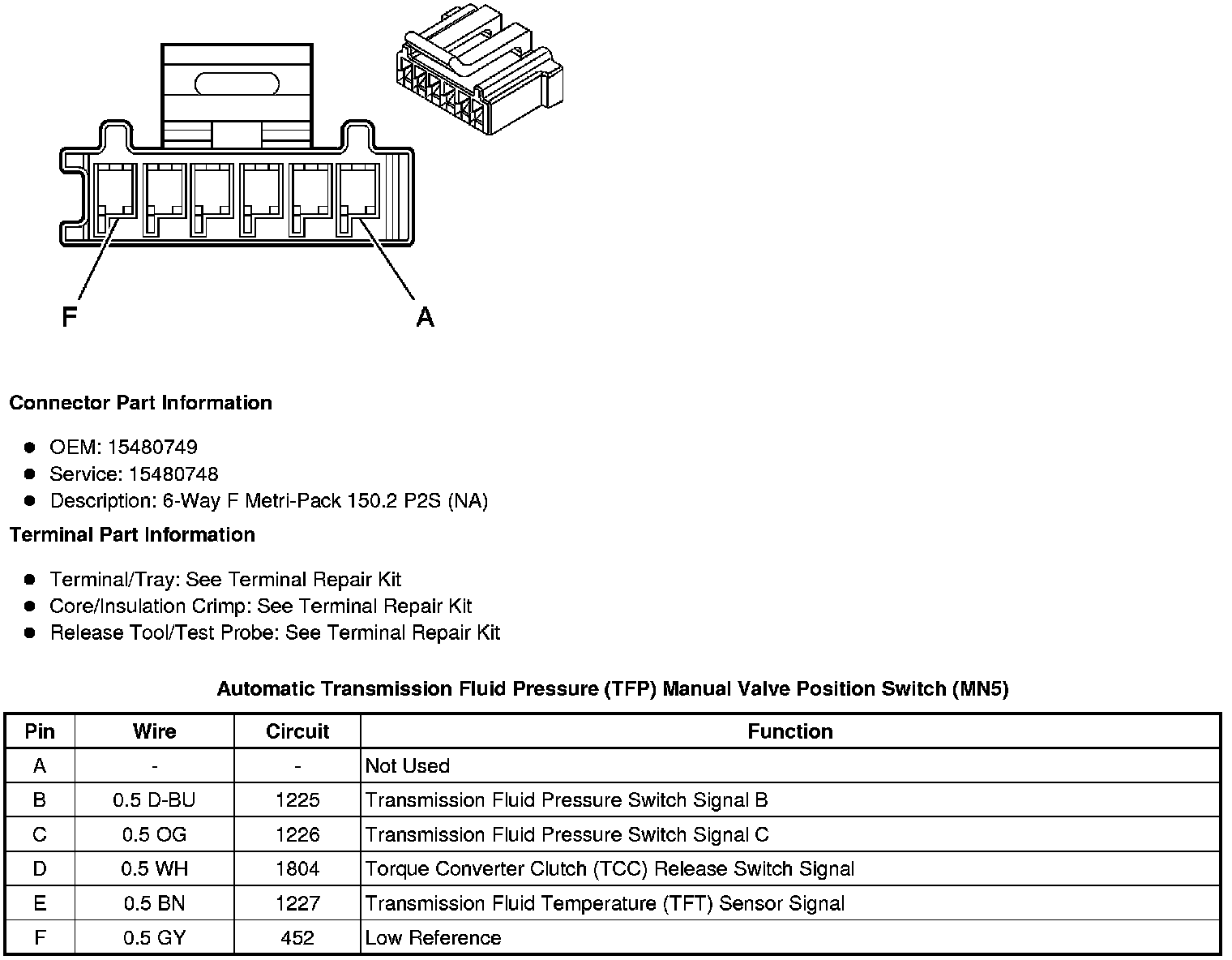

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (MN5)
