Brake Lamp




Component Connector End Views

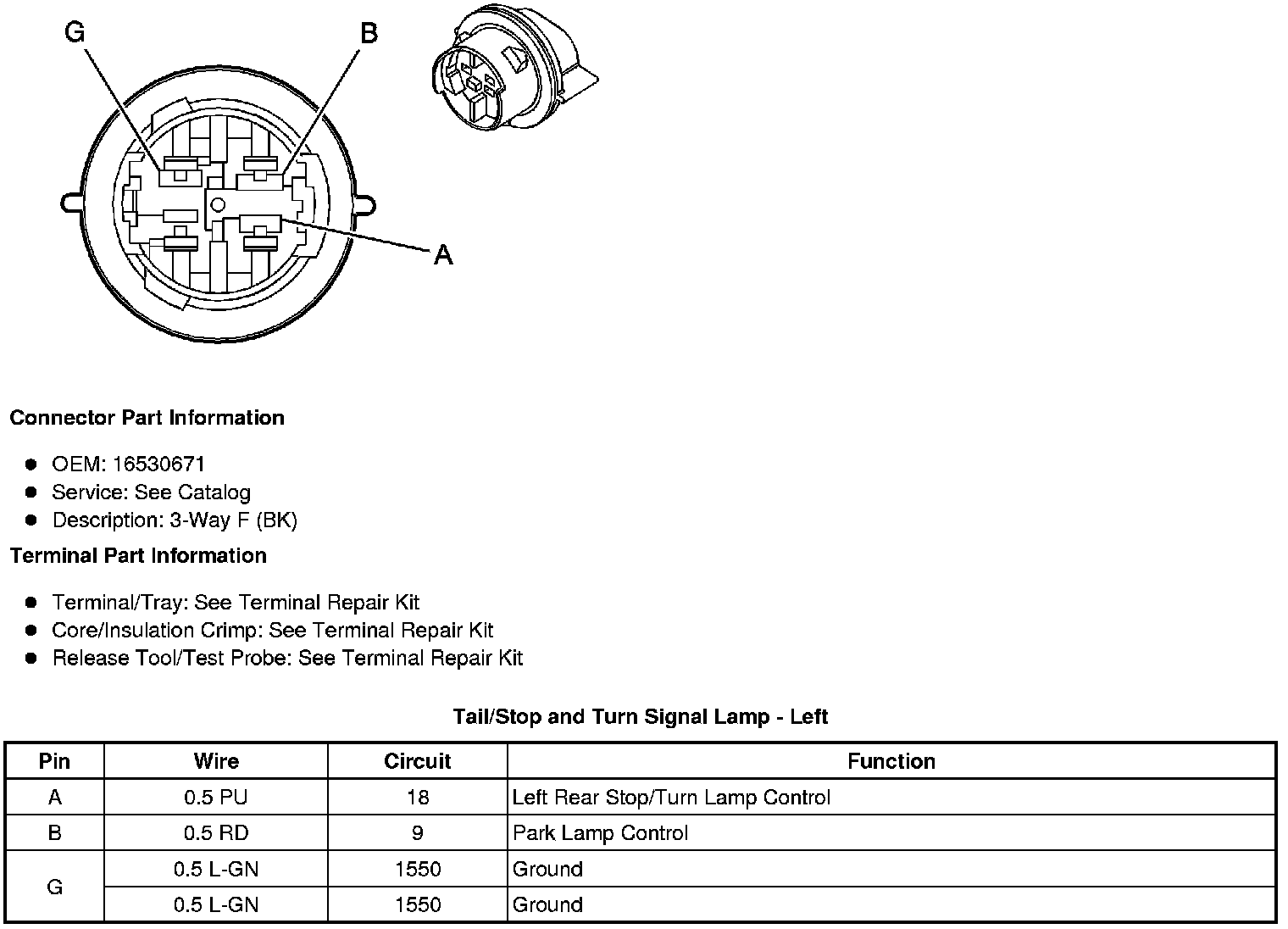

Tail/Stop and Turn Signal Lamp - Left

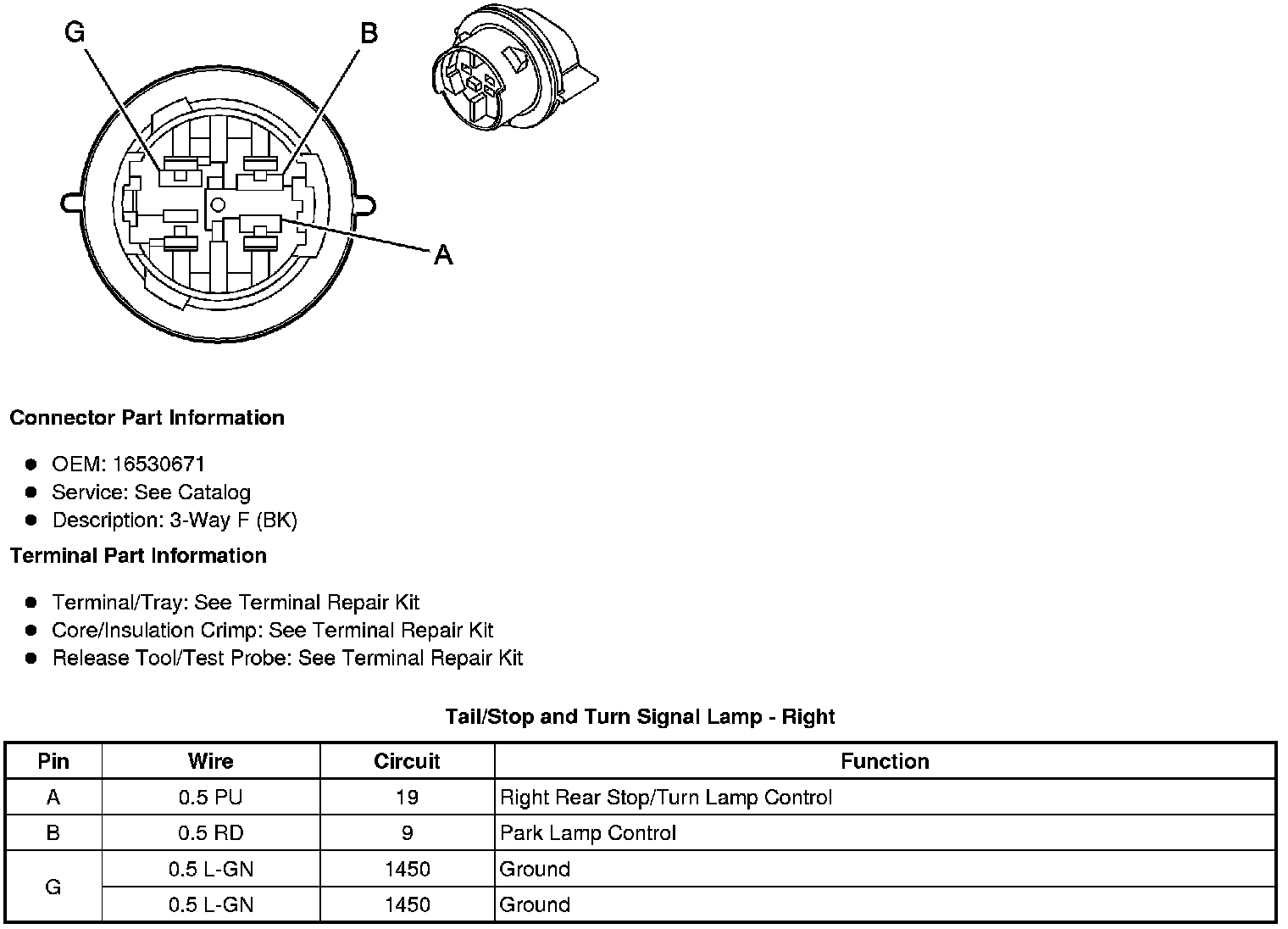

Tail/Stop and Turn Signal Lamp - Right
