Trunk / Liftgate Lock Cylinder: Service and Repair

Rear Compartment Lid Lock Cylinder Replacement

Removal Procedure

1. Open the rear compartment lid.

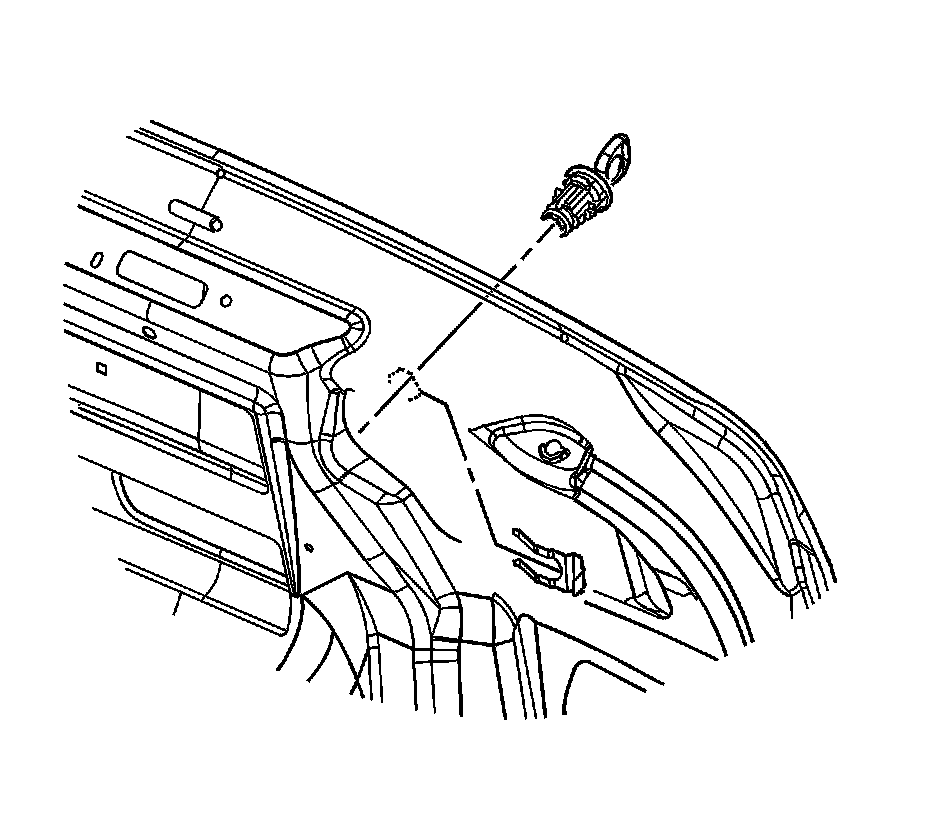

2. Remove the lock cylinder retainer from the compartment lid.
3. Release the lock retainer from the lock rod.
4. Remove the lock cylinder.

Installation Procedure




1. Install the compartment lid lock cylinder.
2. Install the lock cylinder retainer.
3. Install the lock rod to the lock cylinder.
