Home >> Pontiac >> 2009 >> G5 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Clutch Switch >> Diagrams

Clutch Switch: Diagrams

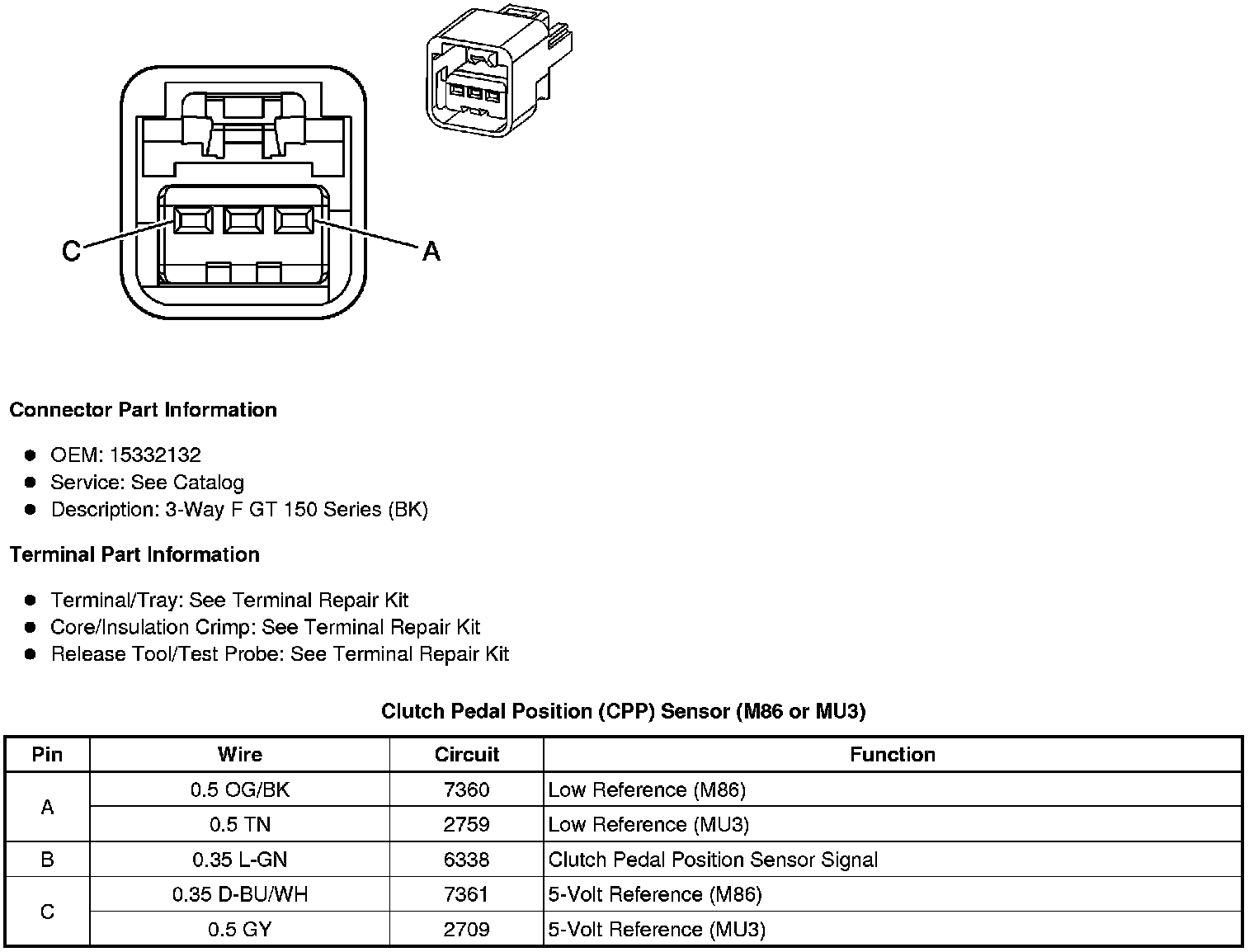

Component Connector End Views

Clutch Pedal Position (CPP) Sensor (M86 or MU3)
