Control Assembly: Diagrams




Component Connector End Views

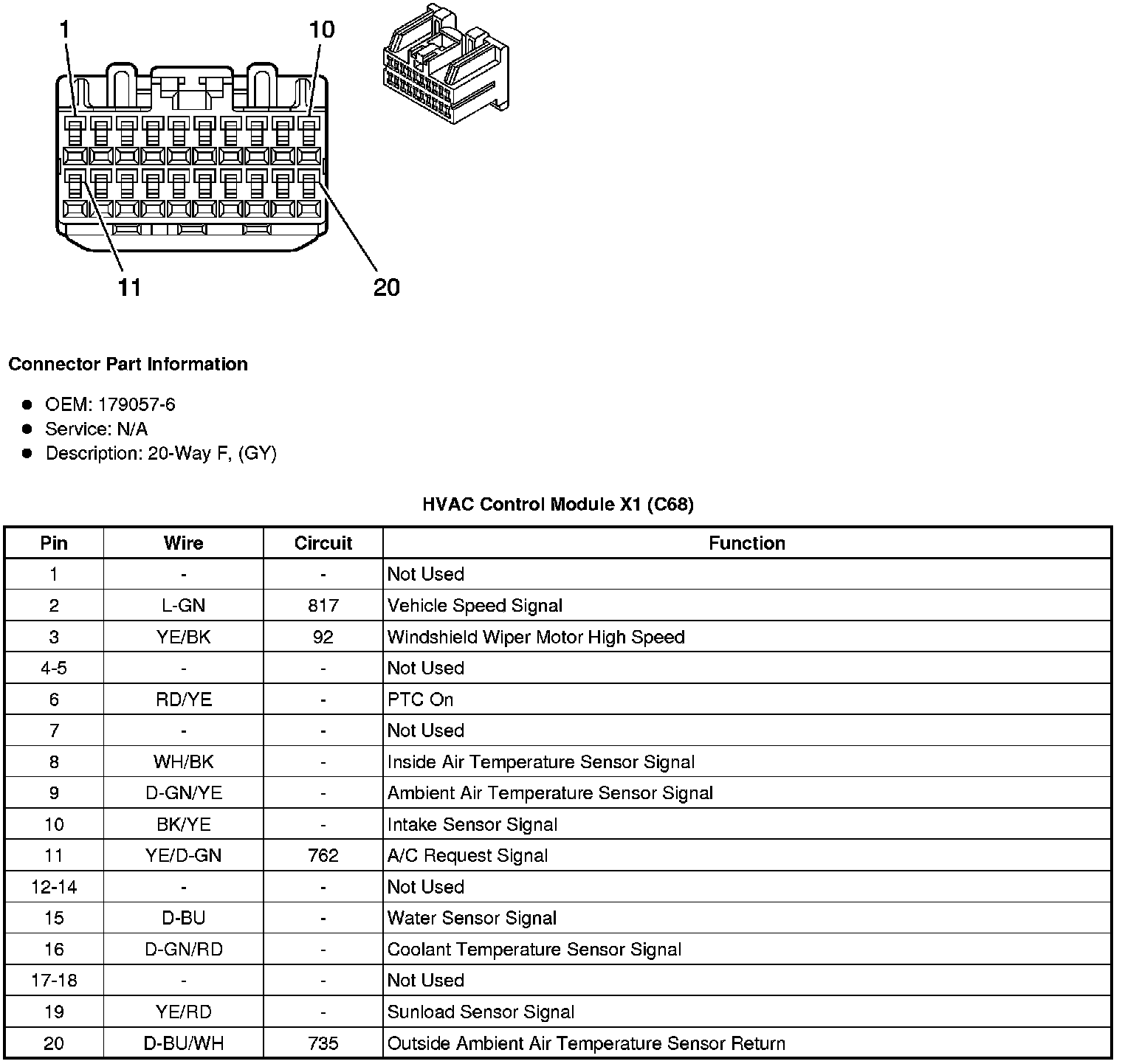

HVAC Control Module X1 (C68)

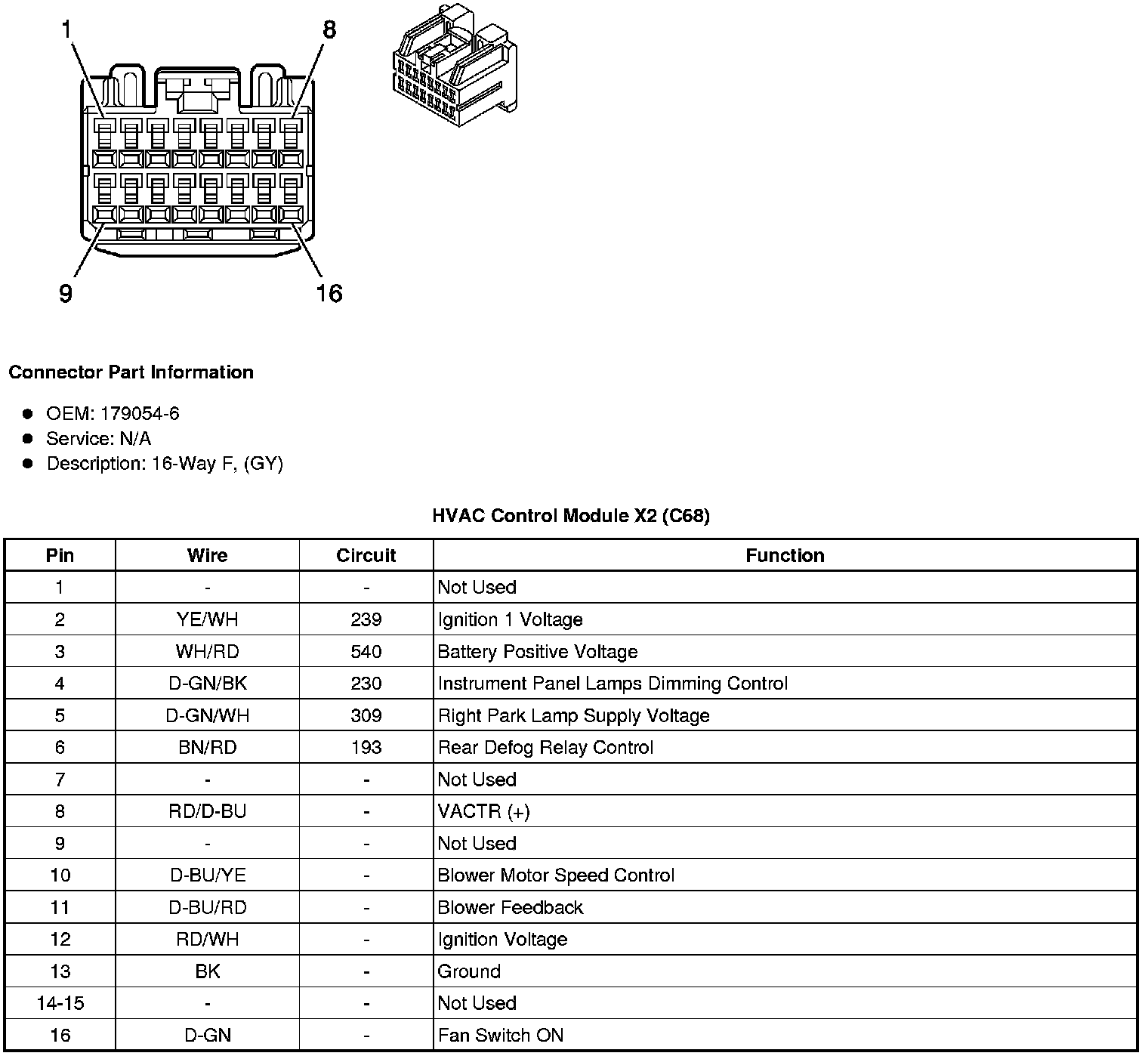

HVAC Control Module X2 (C68)

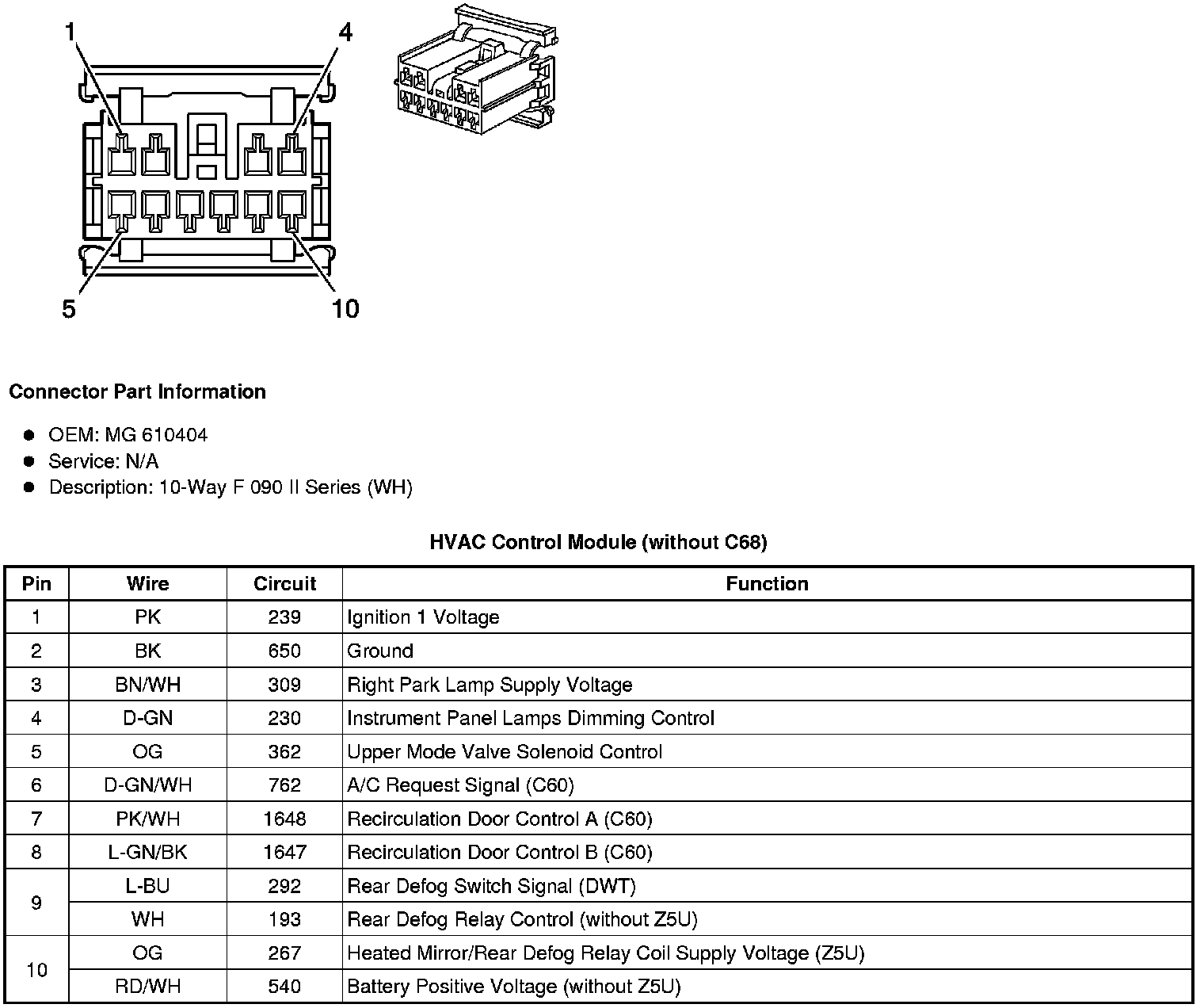

HVAC Control Module (without C68)
