Wiper Motor




Component Connector End Views

Rear Window Wiper Motor (C25)






Rear Window Wiper Motor (C16)

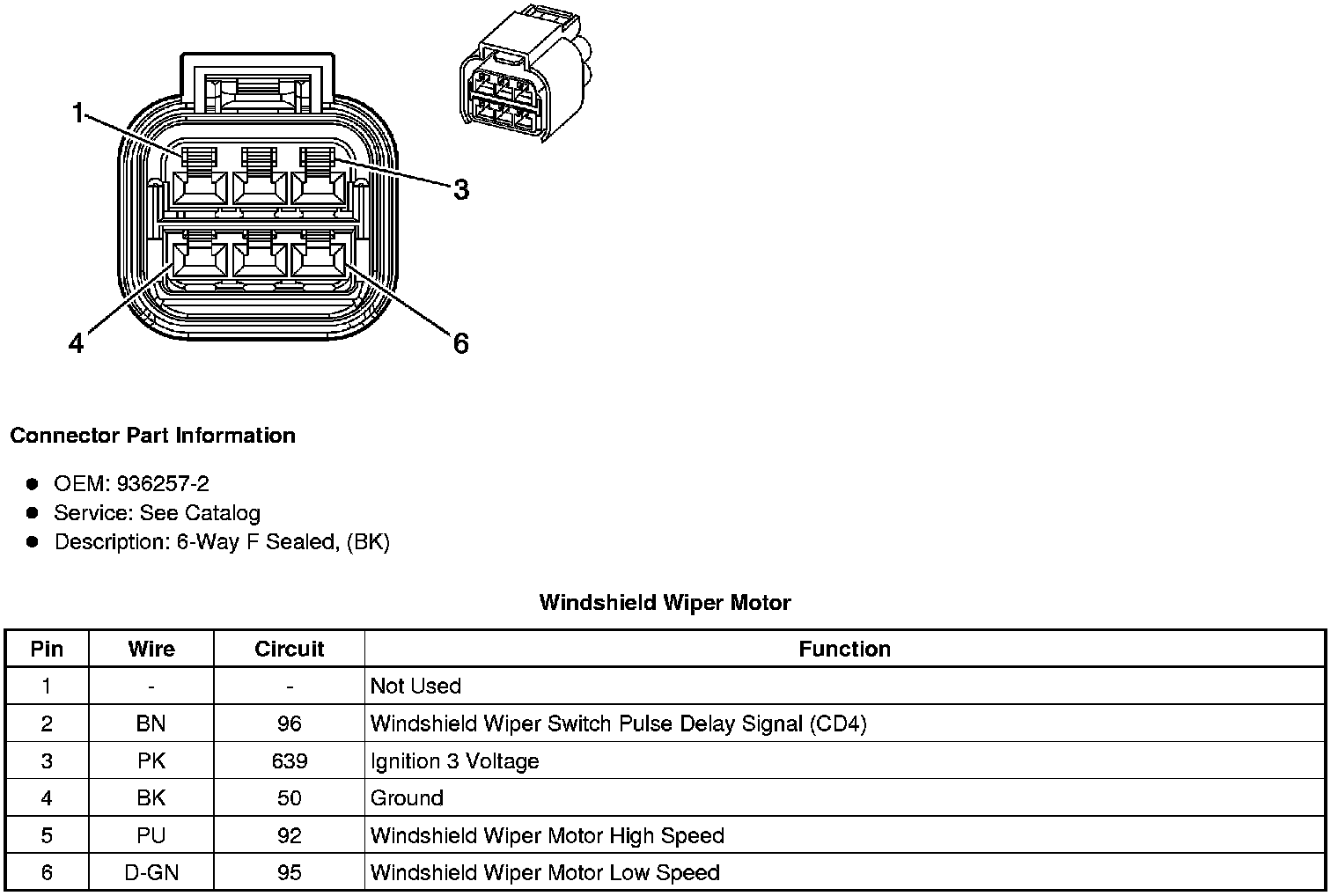

Windshield Wiper Motor
