Air Bag Control Module



SIR Connector End Views

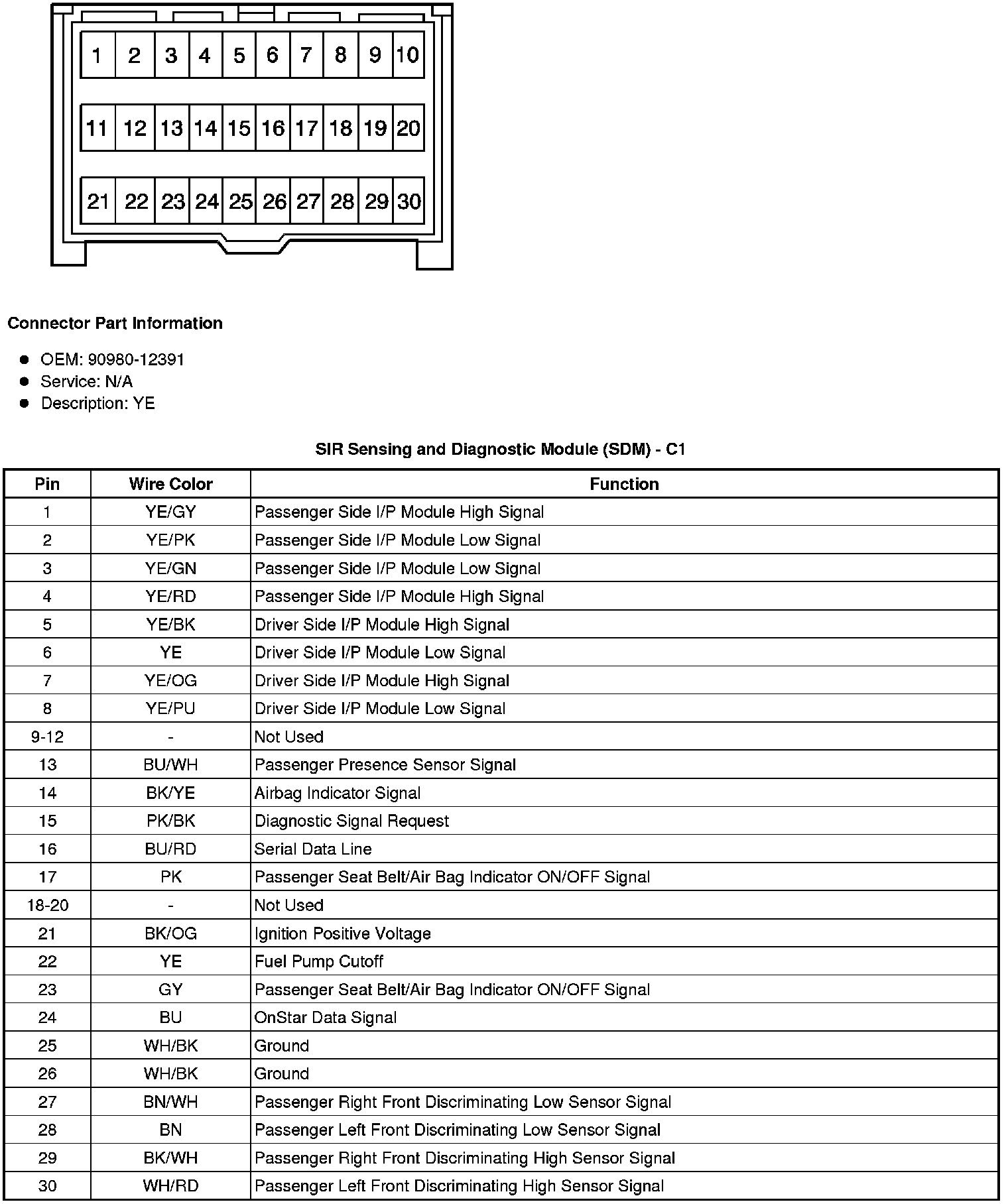

SIR Sensing and Diagnostic Module (SDM) - C1

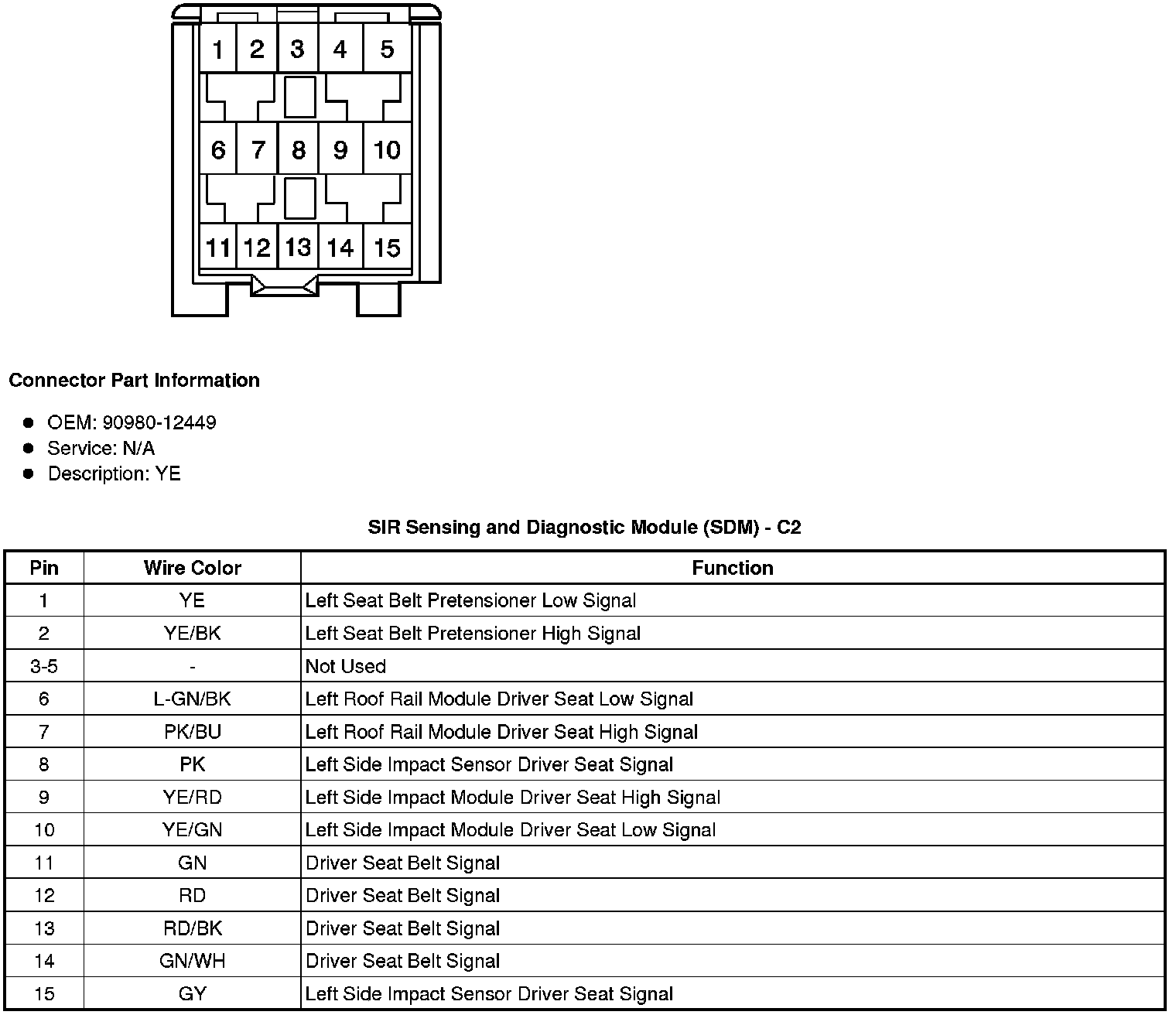

SIR Sensing and Diagnostic Module (SDM) - C2

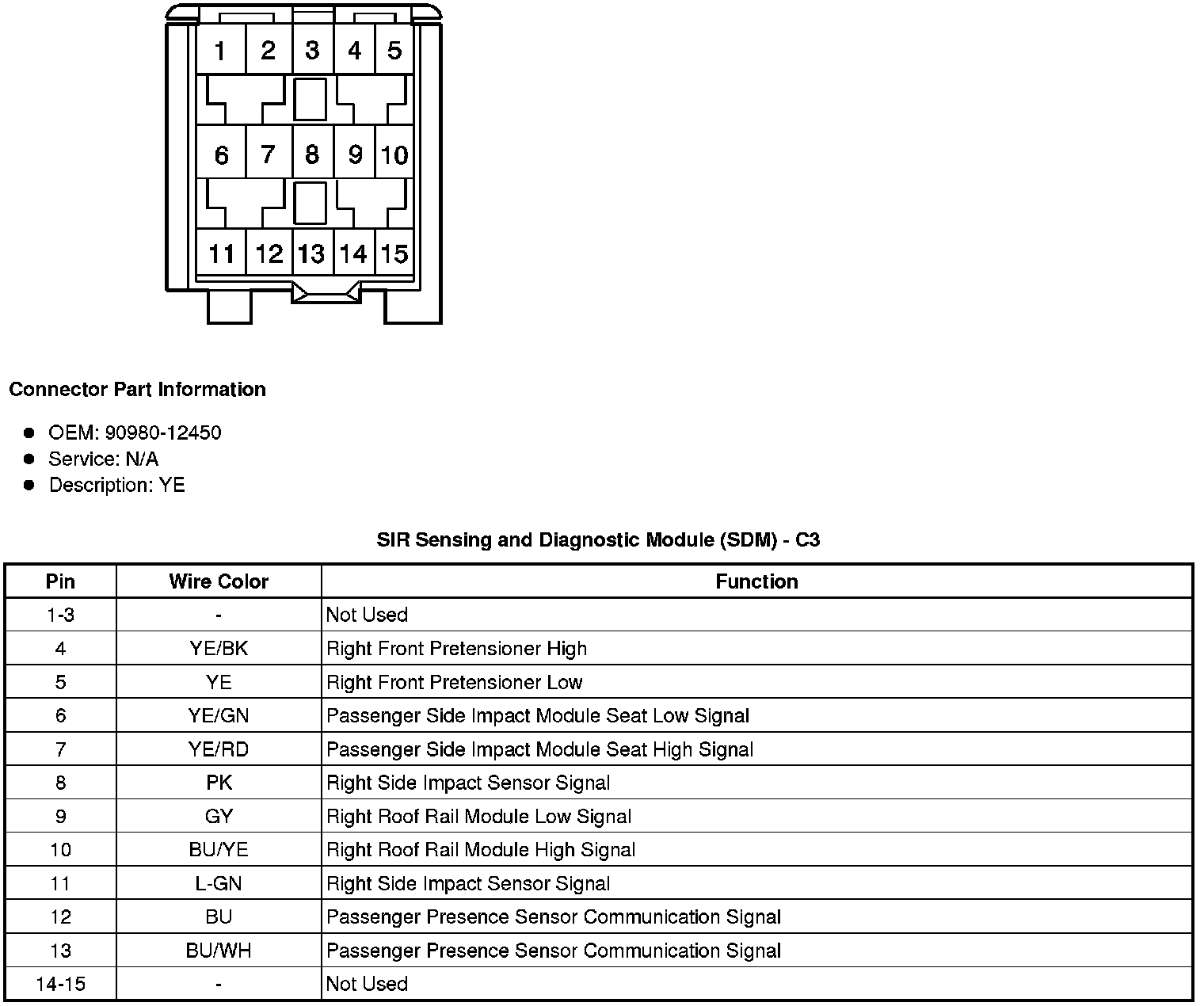

SIR Sensing and Diagnostic Module (SDM) - C3
