Underhood Fuse Block



Electrical Center Identification Views

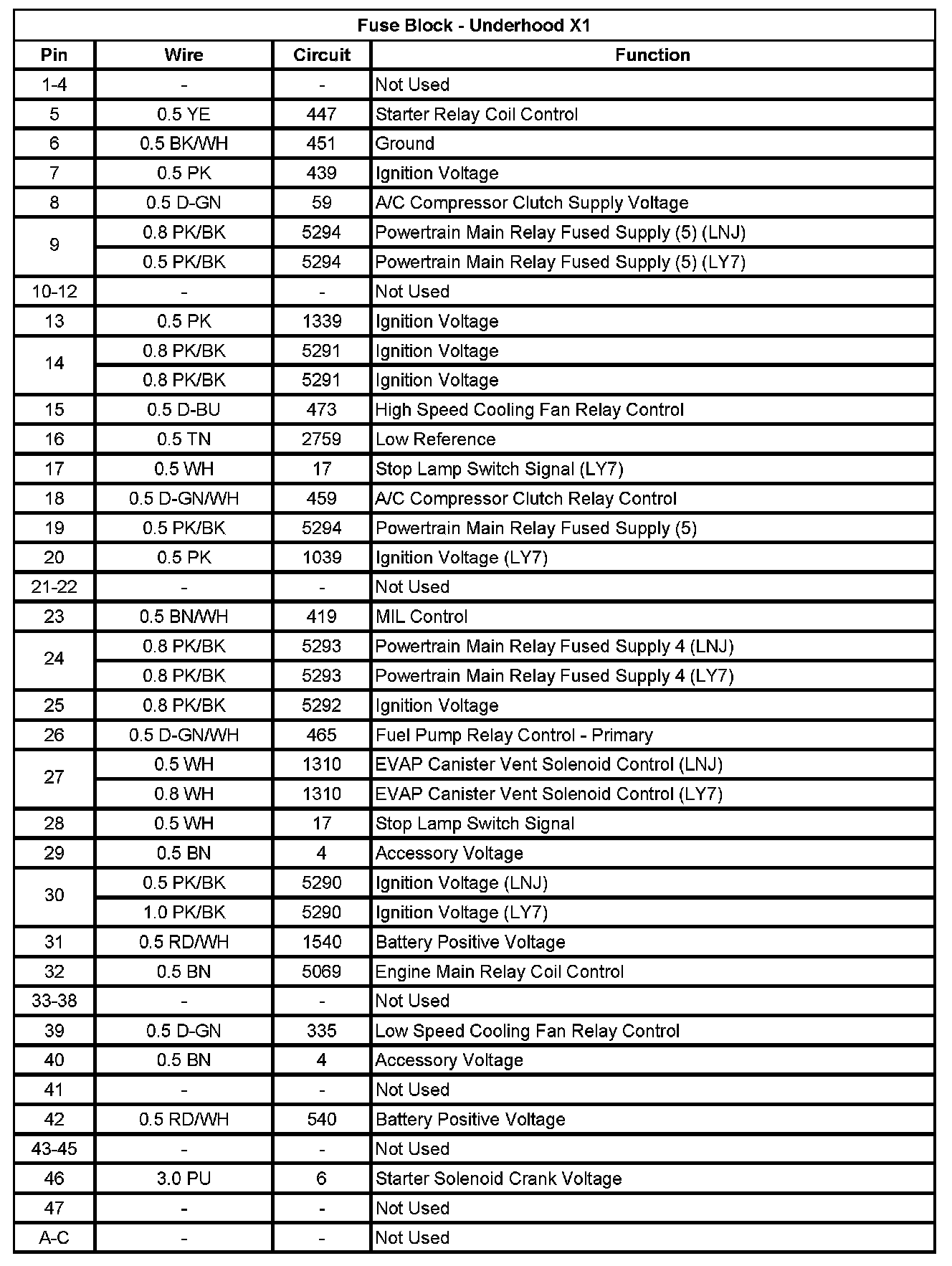

Fuse Block - Underhood X1

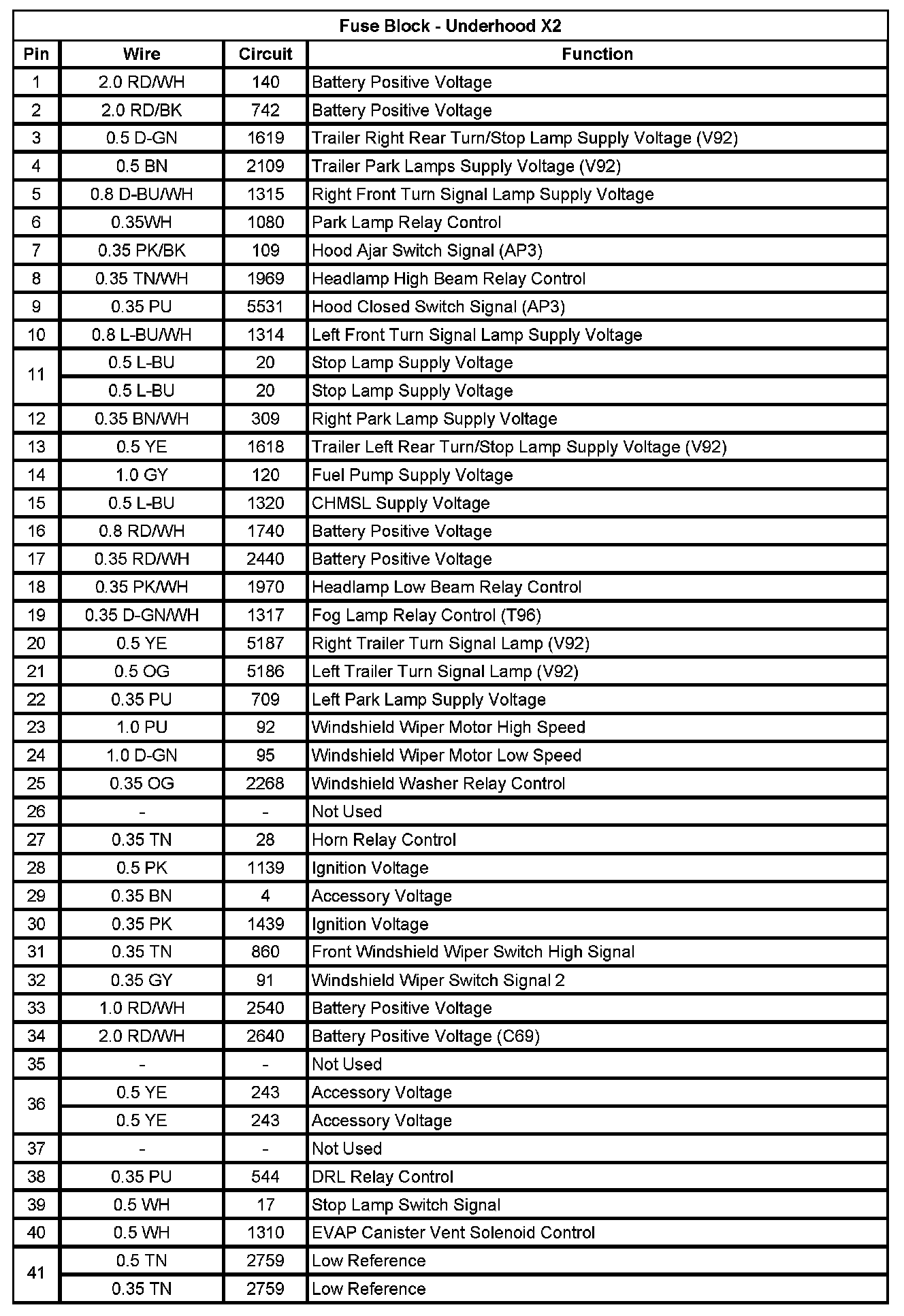

Fuse Block - Underhood X2

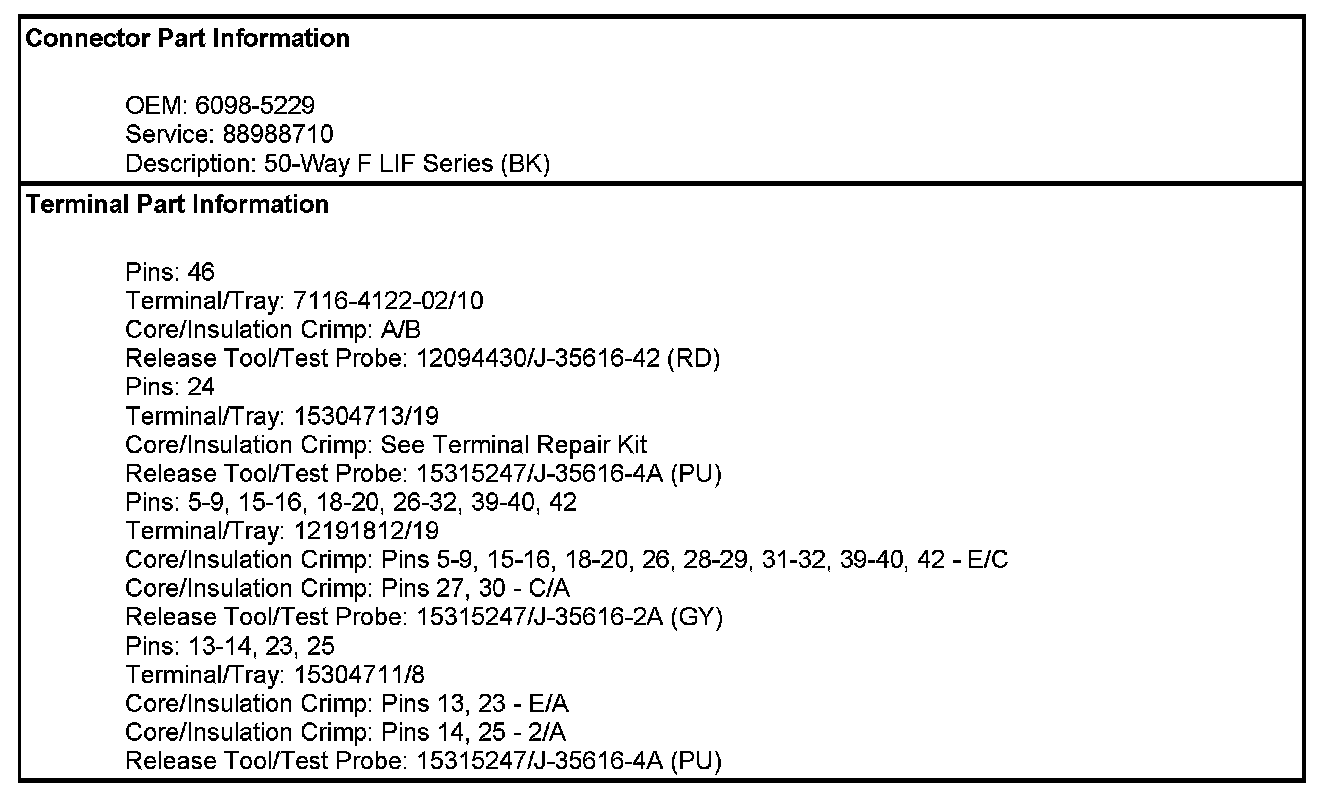

Fuse Block - Underhood X2 (Pin 1 To 41):

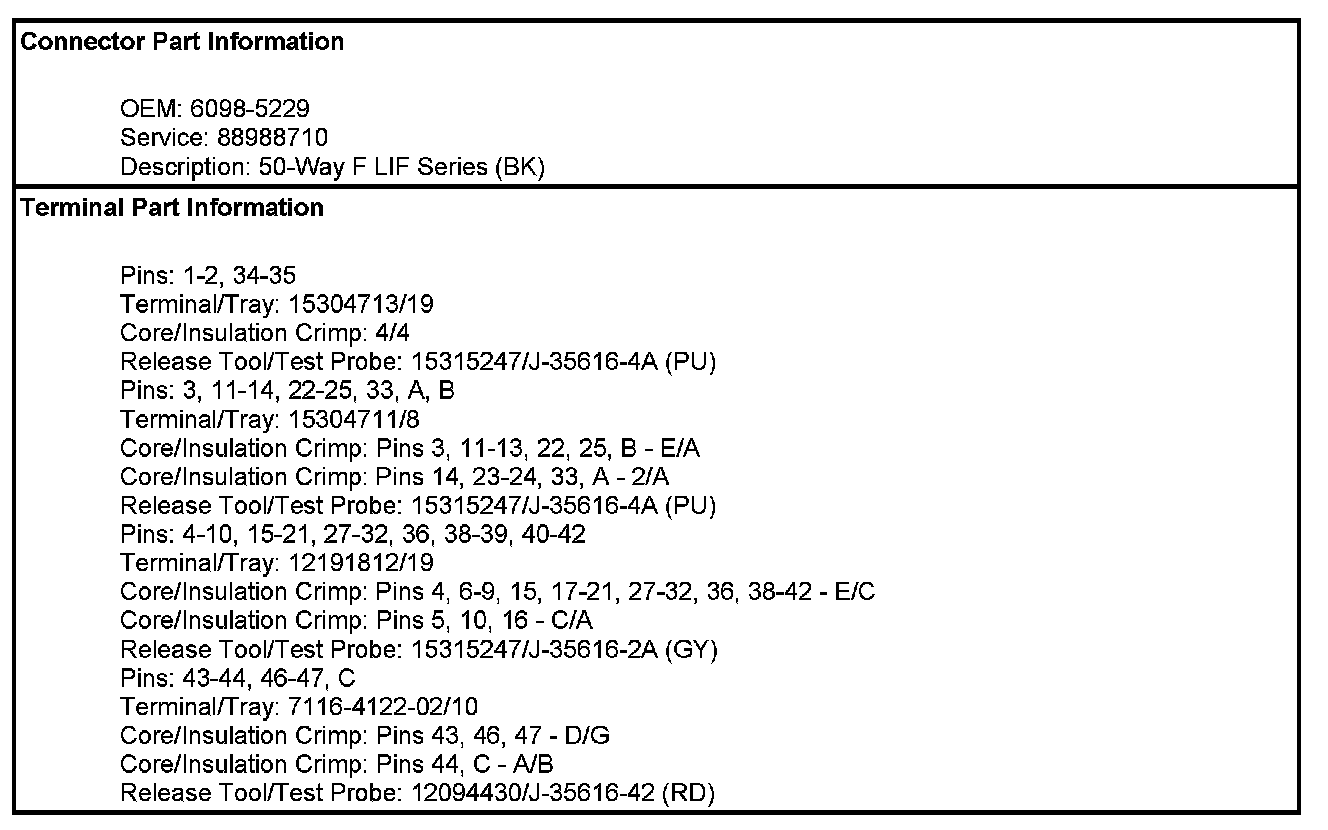

Fuse Block - Underhood X2 (Pin 42 To C):

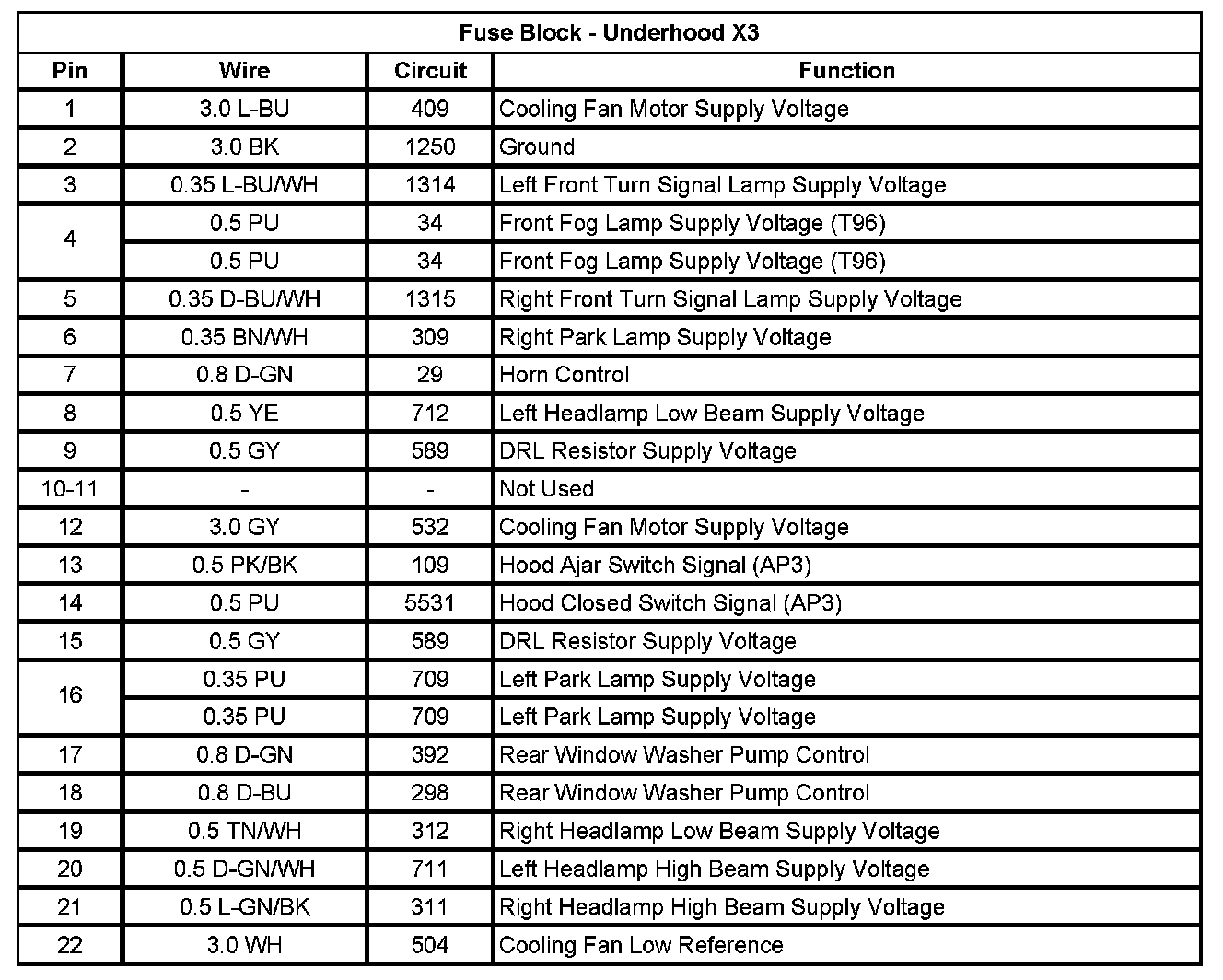

Fuse Block - Underhood X3
