Power Window Motor: Diagrams

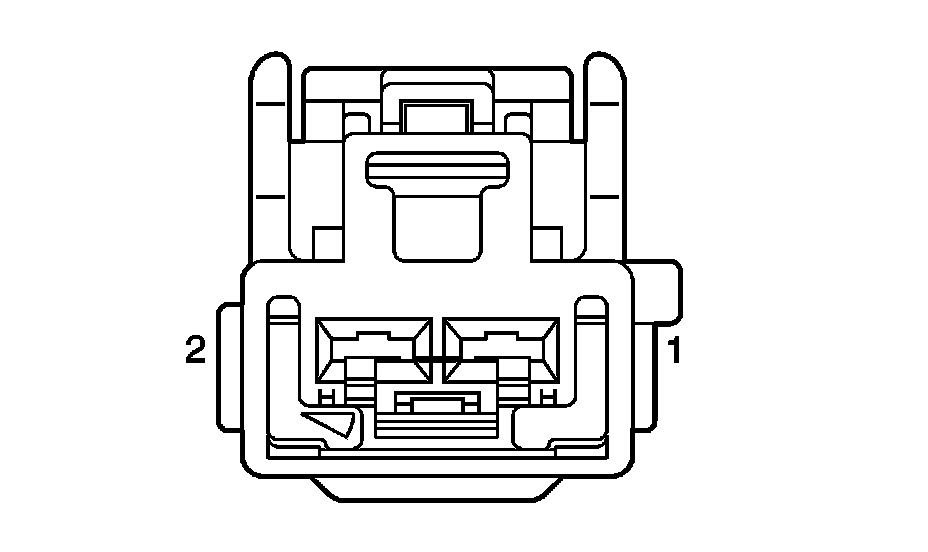

Component Connector End Views - Continued

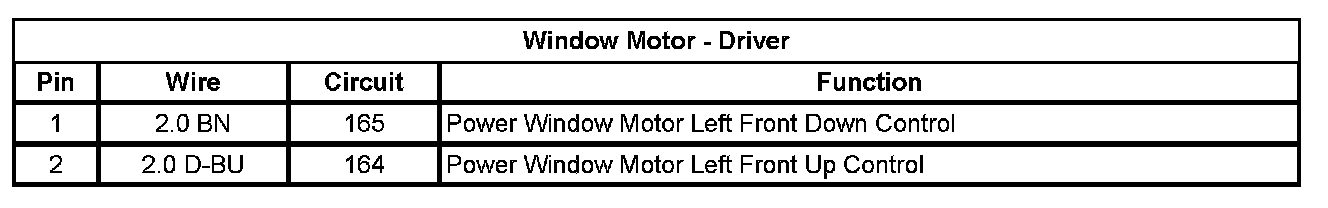

Window Motor - Driver

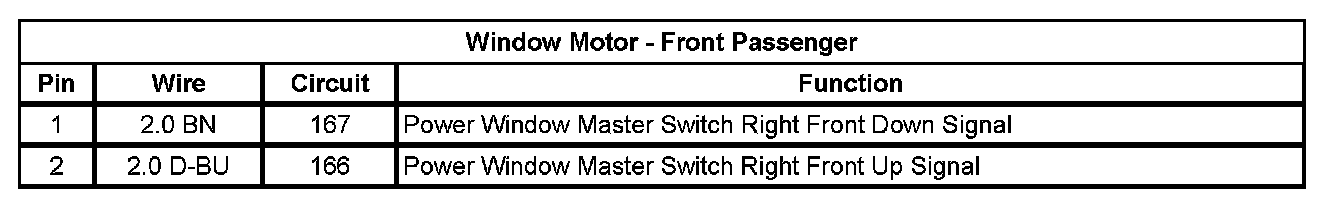

Window Motor - Front Passenger

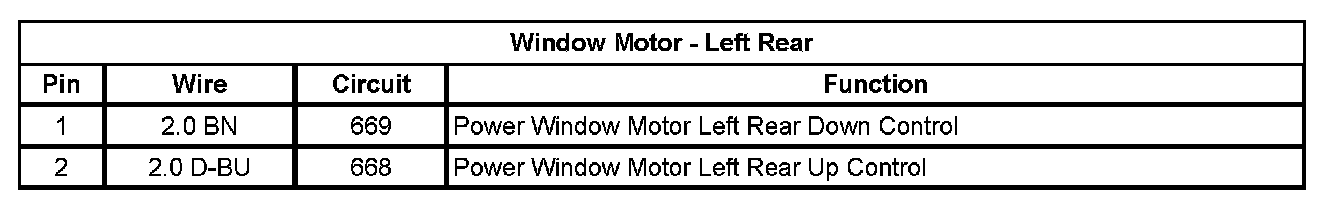

Window Motor - Left Rear

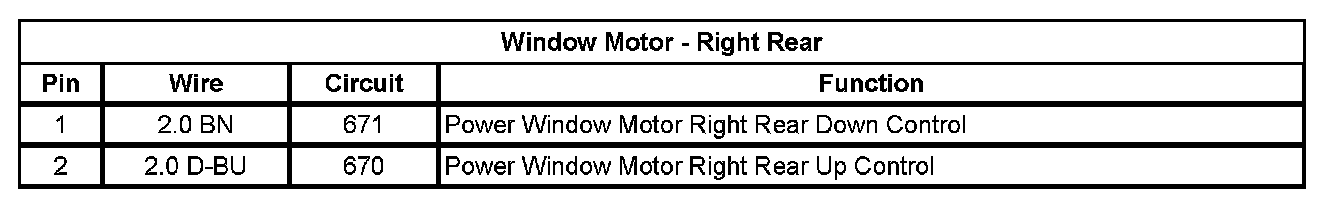

Window Motor - Right Rear
