Instrument Panel Fuse Block

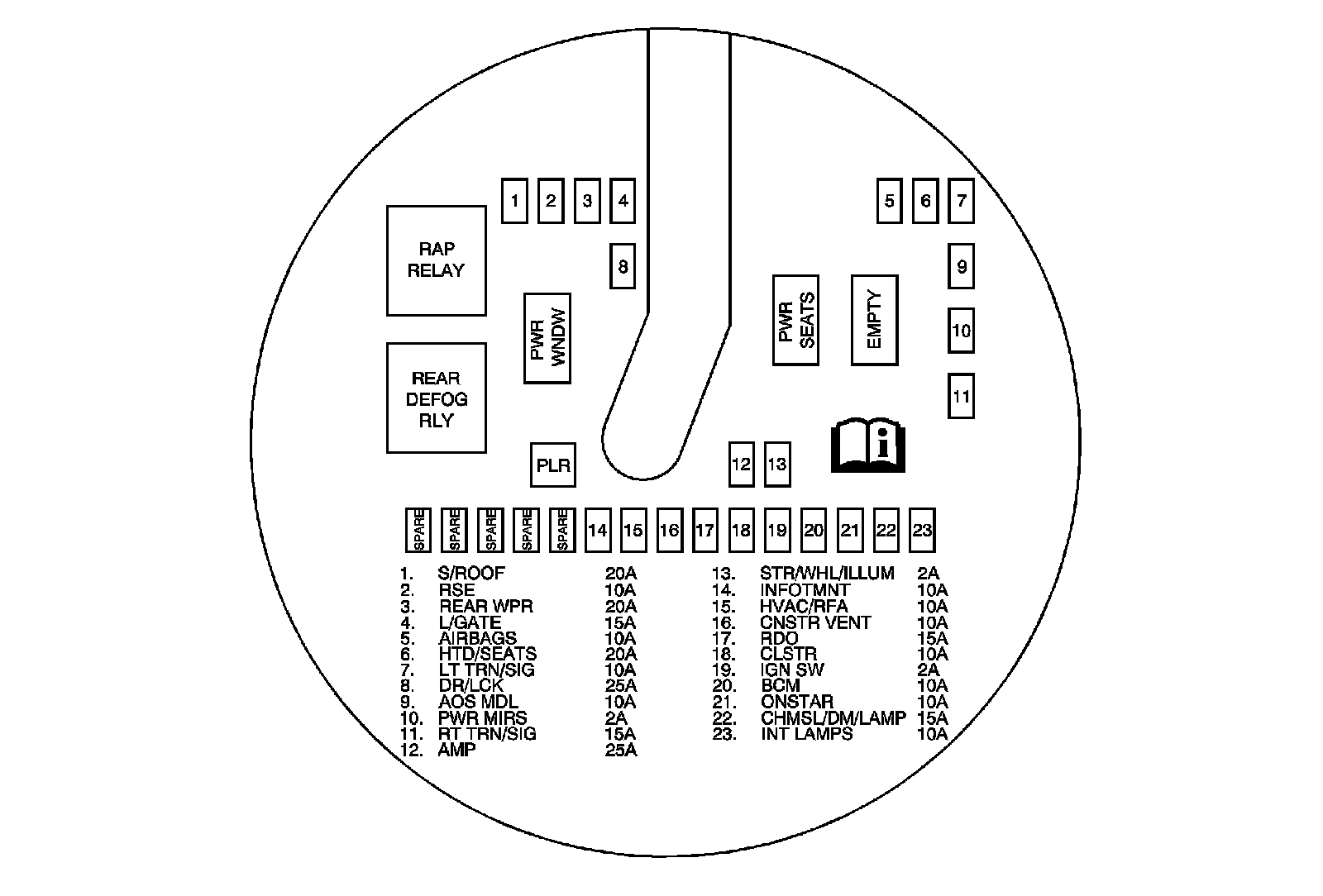

Electrical Center Identification Views

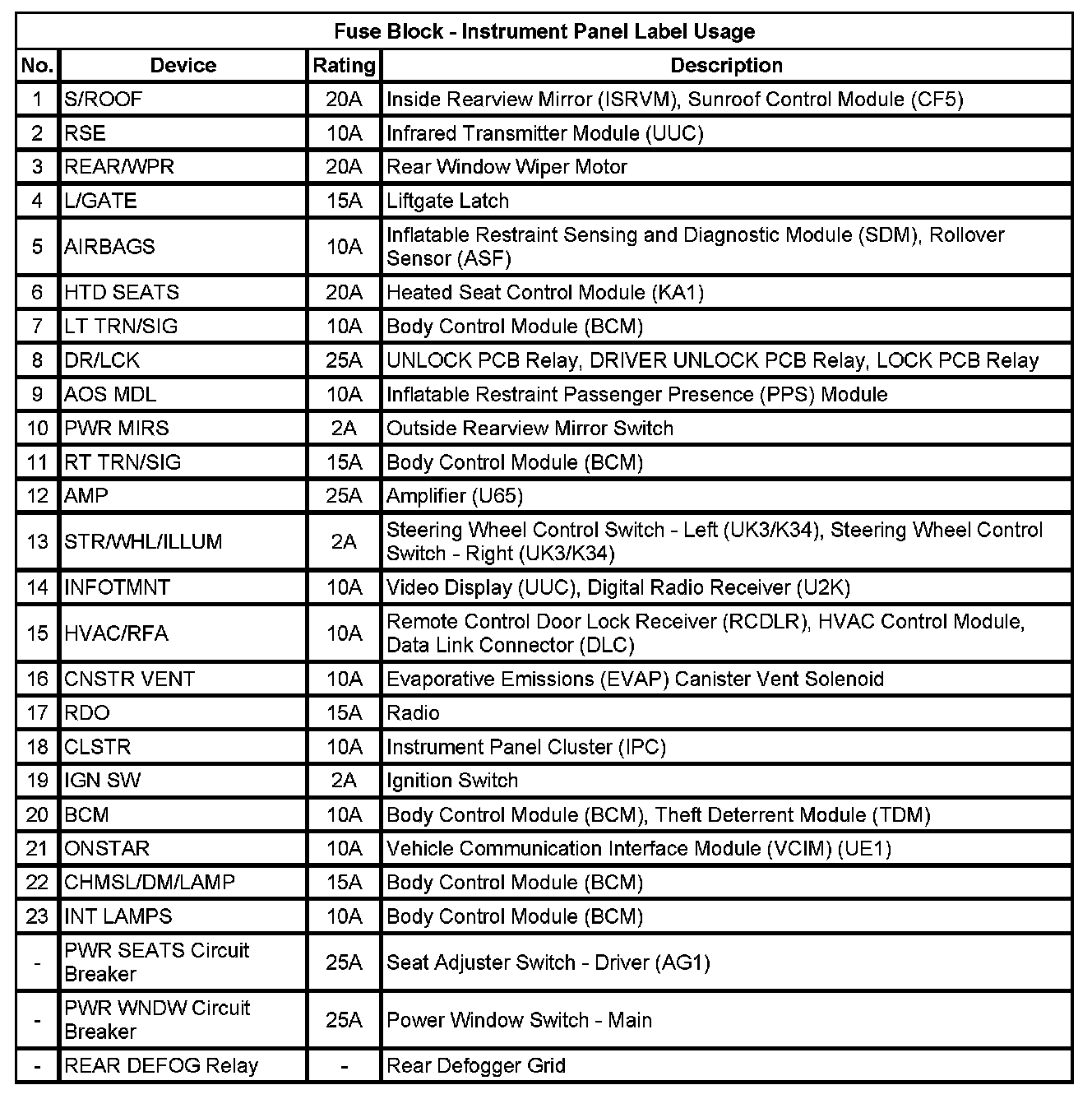

Fuse Block - Instrument Panel Label
